On Board Diagnosis Logic: Notes

WARNING: This page is about a different variant/trim than selected.

These self-diagnosis have one trip detection logic.

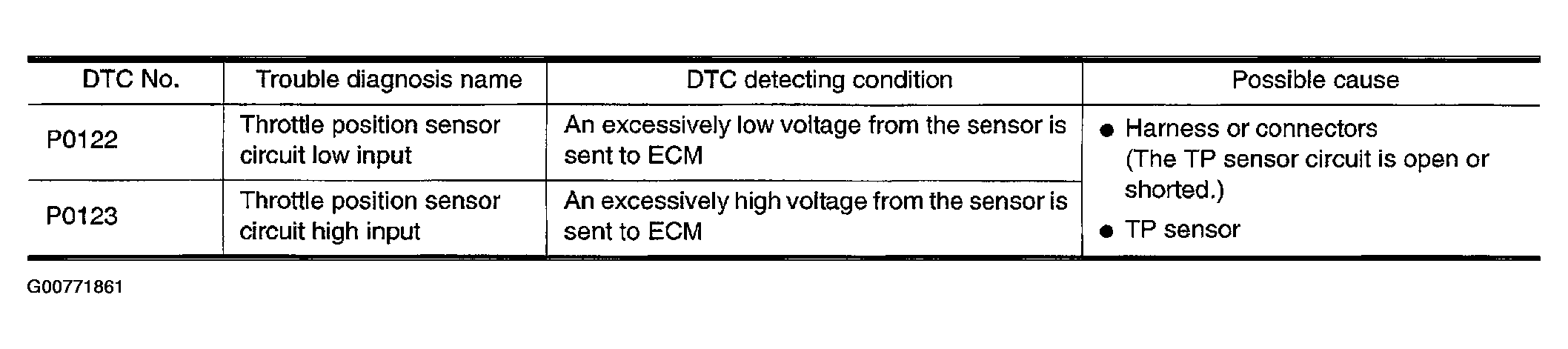

Fig 1: DTC Condition Detection Chart
G00771861Courtesy of NISSAN MOTOR CO., U.S.A.
