Procedure For DTC P0405

WARNING: This page is about a different variant/trim than selected.

With CONSULT-II

Turn ignition switch ON.
Select "DATA MONITOR" mode with CONSULT-II.
Verify that engine coolant temperature is less than 50°C (122°F).
If the engine coolant temperature is above the range, cool the engine down.
Start engine and let it idle for at least 8 seconds.
If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

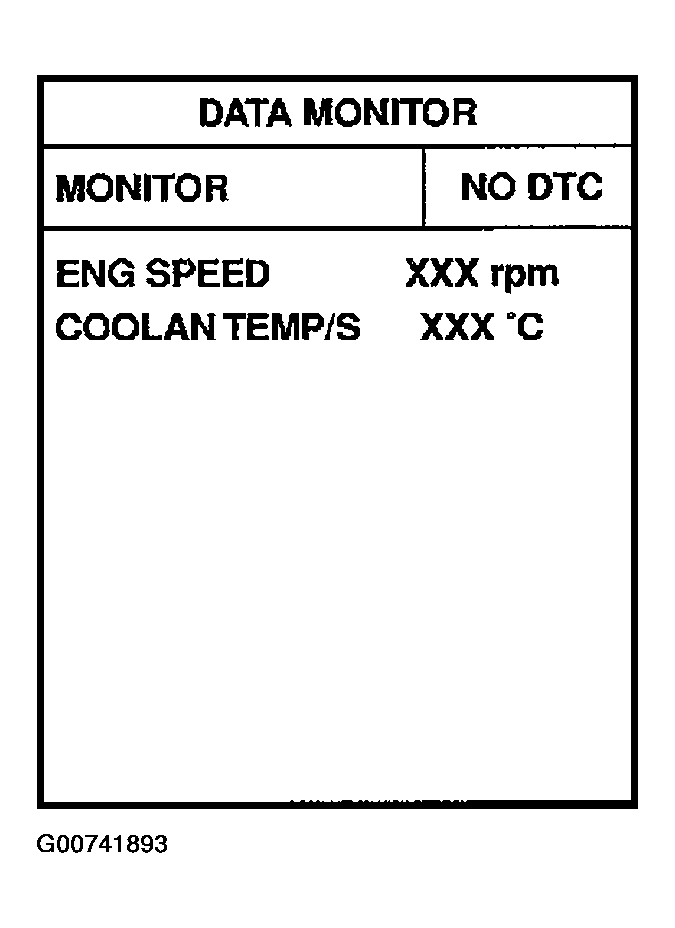

Fig 1: Reading "COOLAN TEMP/S" In "DATA MONITOR" Mode
Courtesy of NISSAN MOTOR CO., U.S.A.

With GST
