DTC P0400: EGR Function: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
NOTE: For references to "PG-Power" in wiring diagrams, see POWER DISTRIBUTION in SYSTEM WIRING DIAGRAMS.

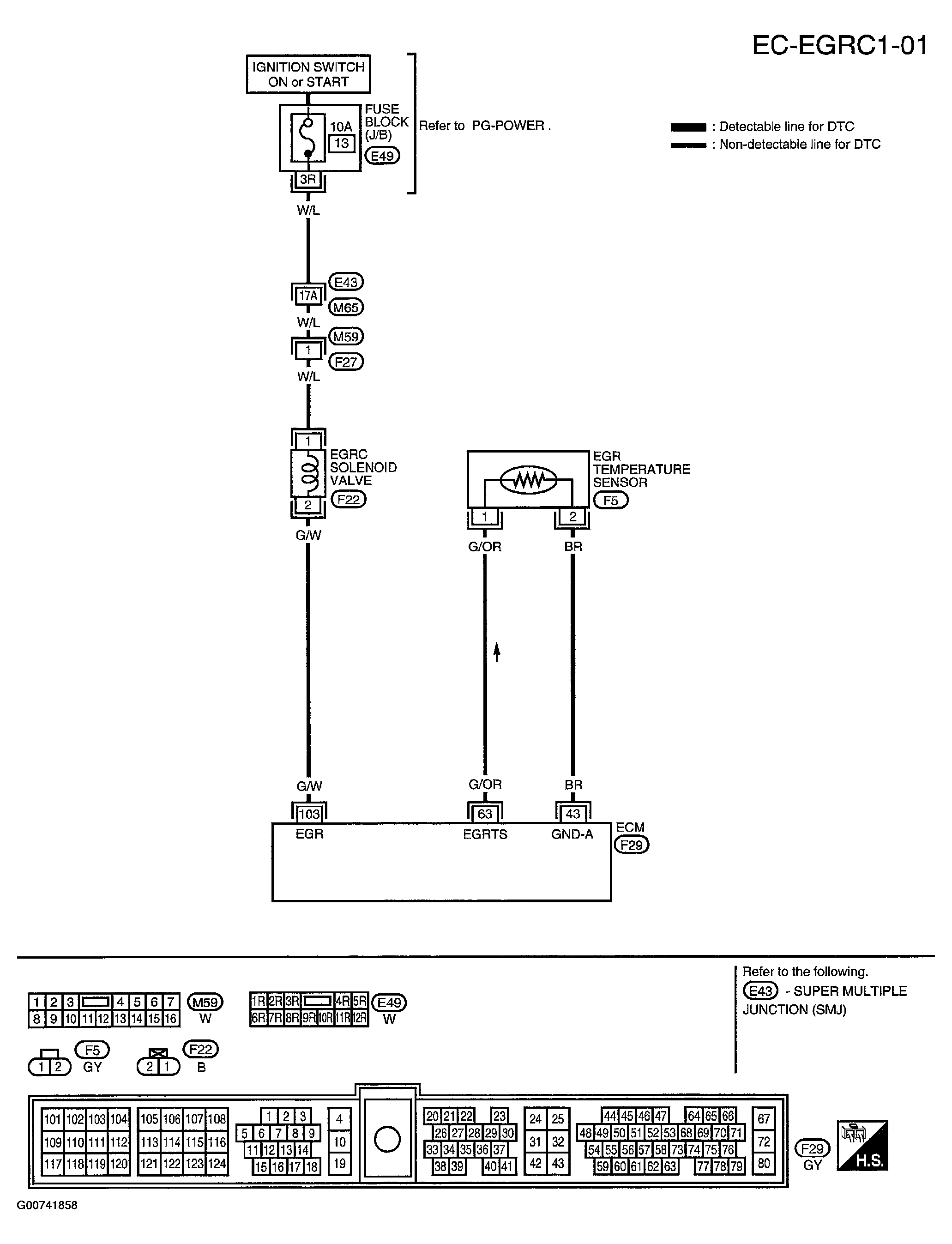

Fig 1: Wiring Diagram - EC-EGRC1-01
G00741858Courtesy of NISSAN MOTOR CO., U.S.A.
