Section 3 (Engine Control System - VG33E)
>>
DTC P0340: CMP Sensor
>>
On Board Diagnosis Logic
On Board Diagnosis Logic
WARNING:
This page is about a different variant/trim than selected.

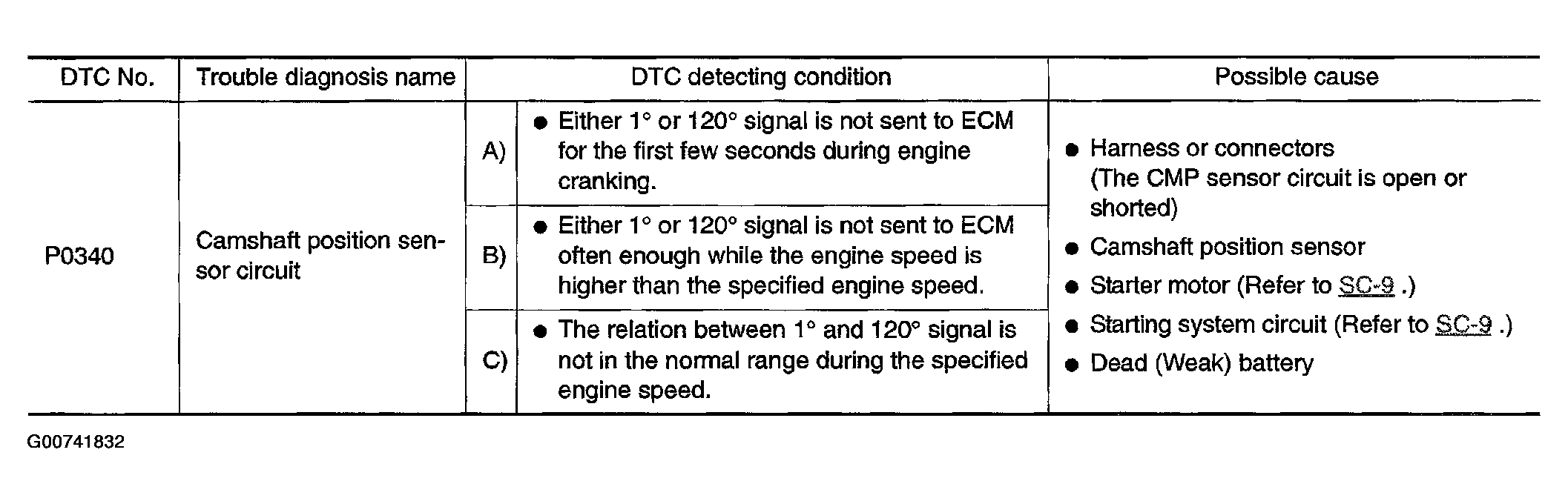

Fig 1: DTC Detected Condition Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
