Section 3 (Engine Control System - VG33E)
>>
Basic Service Procedure
>>
Trouble Diagnosis
>>
Generic Scan Tool (GST) Function
>>
Function
Generic Scan Tool (GST) Function: Function
WARNING:
This page is about a different variant/trim than selected.

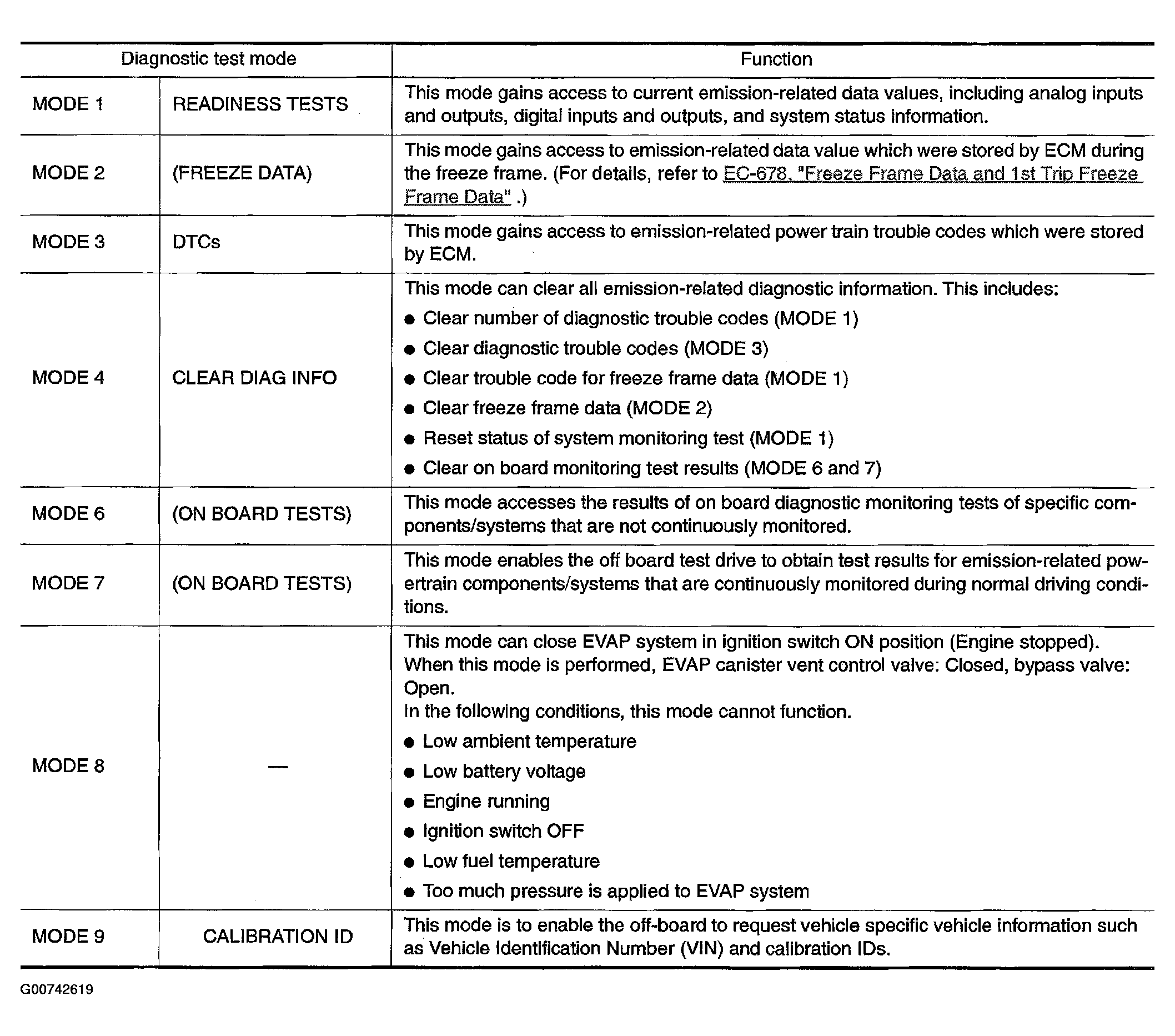

Fig 1: Diagnostic Test Mode/Function Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
