With CONSULT-II

Check air passage continuity.

Perform "EGRC SOLENOID VALVE" in "ACTIVE TEST" mode.

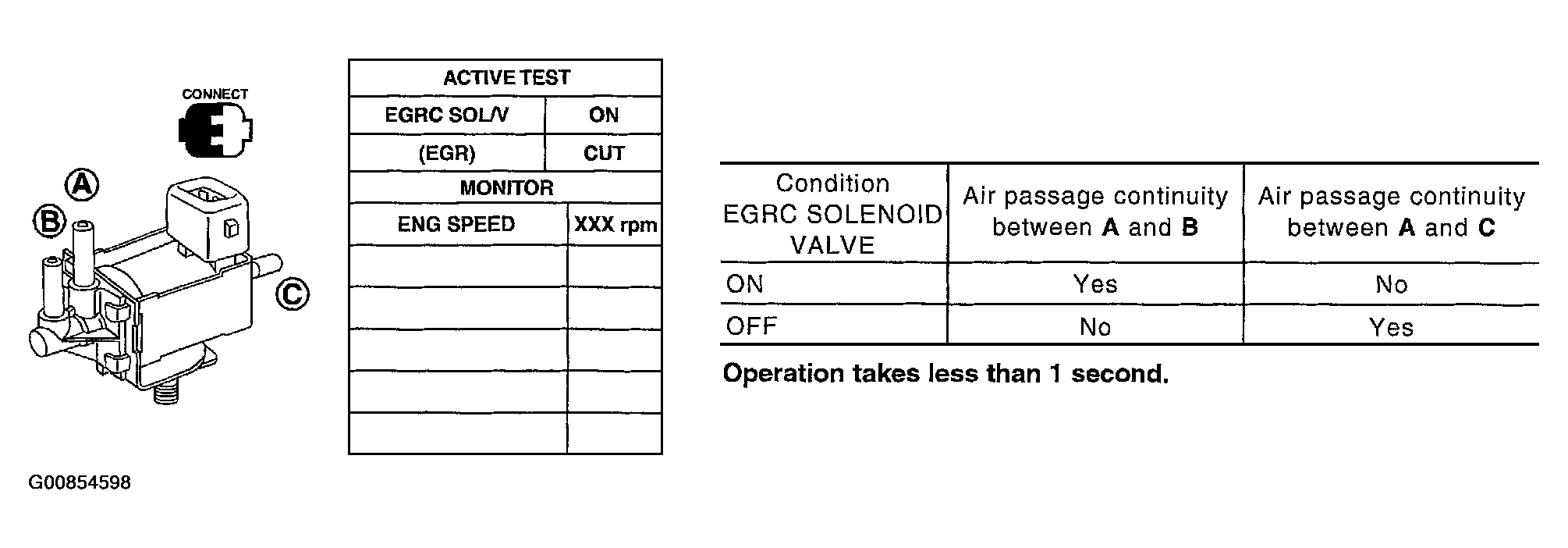

Fig 1: EGRC Solenoid Valve In Active Test Mode

G00854598

Courtesy of NISSAN MOTOR CO., U.S.A.
