Fuel Tank Temperature Sensor

  1. Remove fuel level sensor unit.

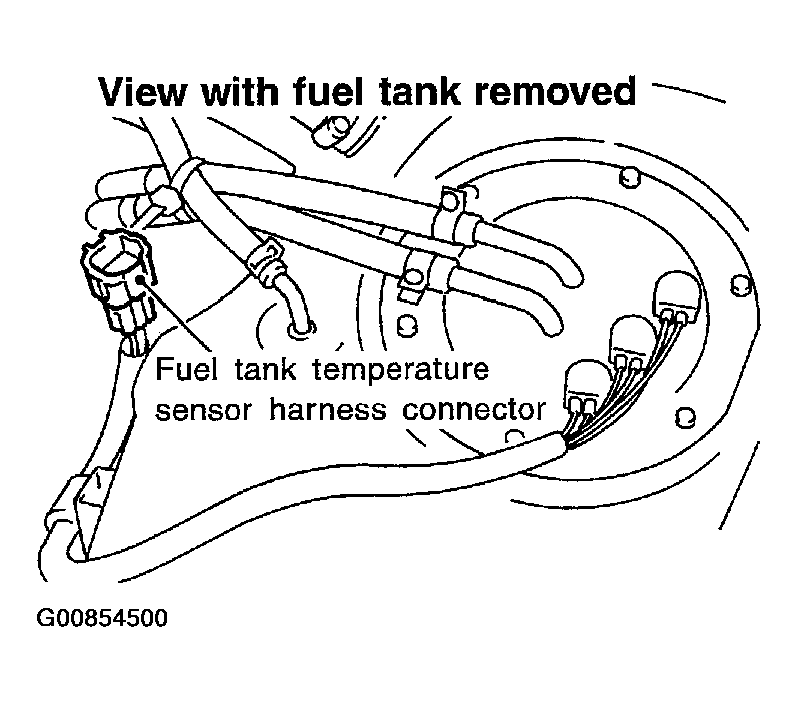

    Fig 1: Removing Fuel Level Sensor Unit
    G00854500Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Check resistance by heating with hot water or heat gun as show in the figure.
Fig 2: Temperature Resistance Chart
G00854501Courtesy of NISSAN MOTOR CO., U.S.A.

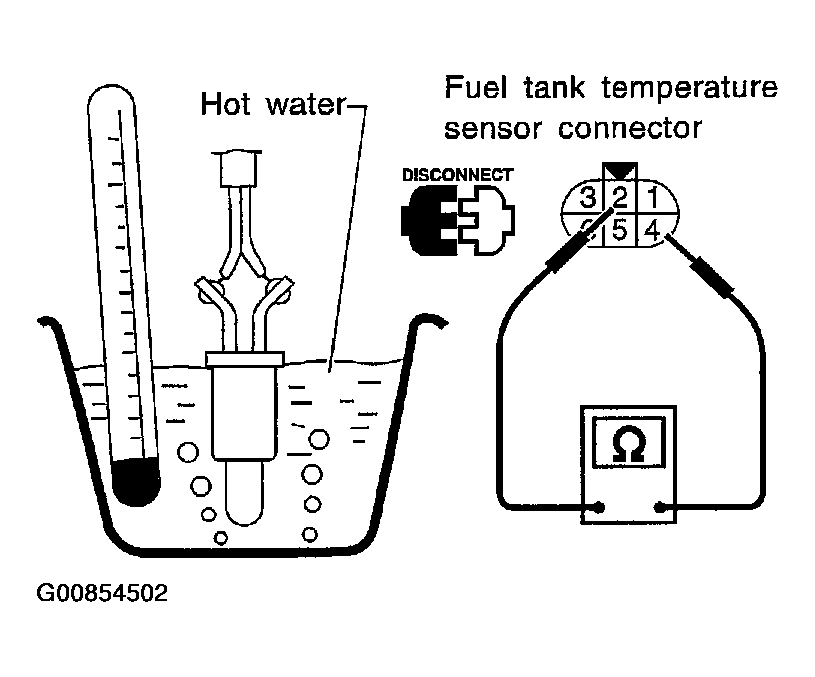

Fig 3: Checking Resistance By Heating With Hot Water
G00854502Courtesy of NISSAN MOTOR CO., U.S.A.
