Diagnostic procedure
- CHECK POWER SUPPLY
- Turn ignition switch OFF.

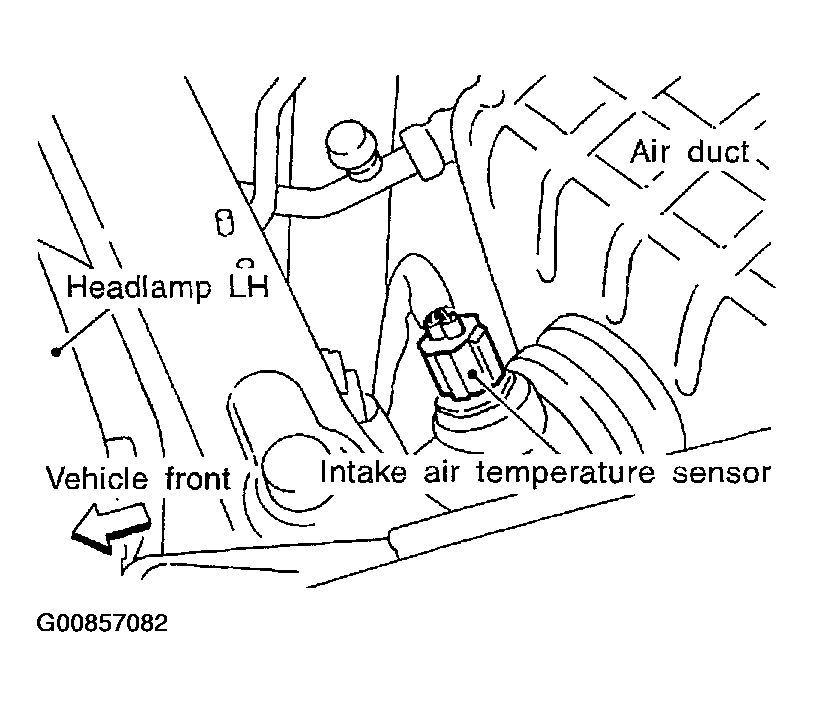

- Disconnect intake air temperature sensor harness connector.
- Turn ignition switch ON.
- Check voltage between terminal 1 and ground with CONSULT-II or tester.
Voltage : Approximately 5V
OK or NG
- OK : GO TO 3.
- NG : GO TO 2.
- DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors E43, M65
- Harness connectors M81, F36
- Harness for open or short between ECM and intake air temperature sensor
- : Repair harness or connectors.
- CHECK GROUND CIRCUIT
- Turn ignition switch OFF.
- Check harness continuity between intake air temperature sensor terminal 2 and engine ground.
Refer to WIRING DIAGRAM .
Continuity should exist.
- Also check harness for short to power.
OK or NG
- OK : GO TO 5.
- NG : GO TO 4.
- DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors E43, M65
- Harness connectors M81, F36
- Harness for open or short between ECM and intake air temperature sensor
- : Repair open circuit or short to power in harness or connectors.
- CHECK INTAKE AIR TEMPERATURE SENSOR
Refer to COMPONENT INSPECTION .
OK or NG
- OK : GO TO 6.
- NG : Replace intake air temperature sensor.
- CHECK INTERMITTENT INCIDENT
Perform TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .
- : INSPECTION END.
