1. Check ASCD Steering Switch Circuit

With CONSULT-II

1. Turn ignition switch ON.
2. Select "MAIN SW", "RESUME/ACC SW", "SET SW" and "CANCEL SW" in "DATA MONITOR" mode with CONSULT-II.
3. Check each item indication under the following conditions.

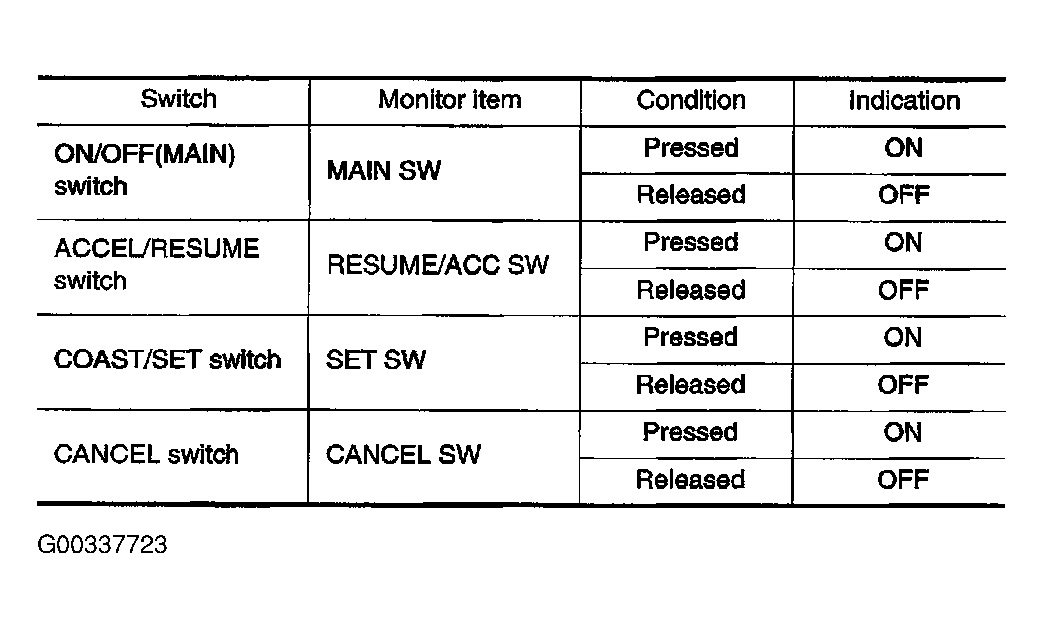

Fig 1: Checking ASCD Steering Switch With CONSULT-II (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Checking ASCD Steering Switch With CONSULT-II (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

1. Turn ignition switch ON.
2. Check voltage between ECM terminal 99 and ground with pressing each button.

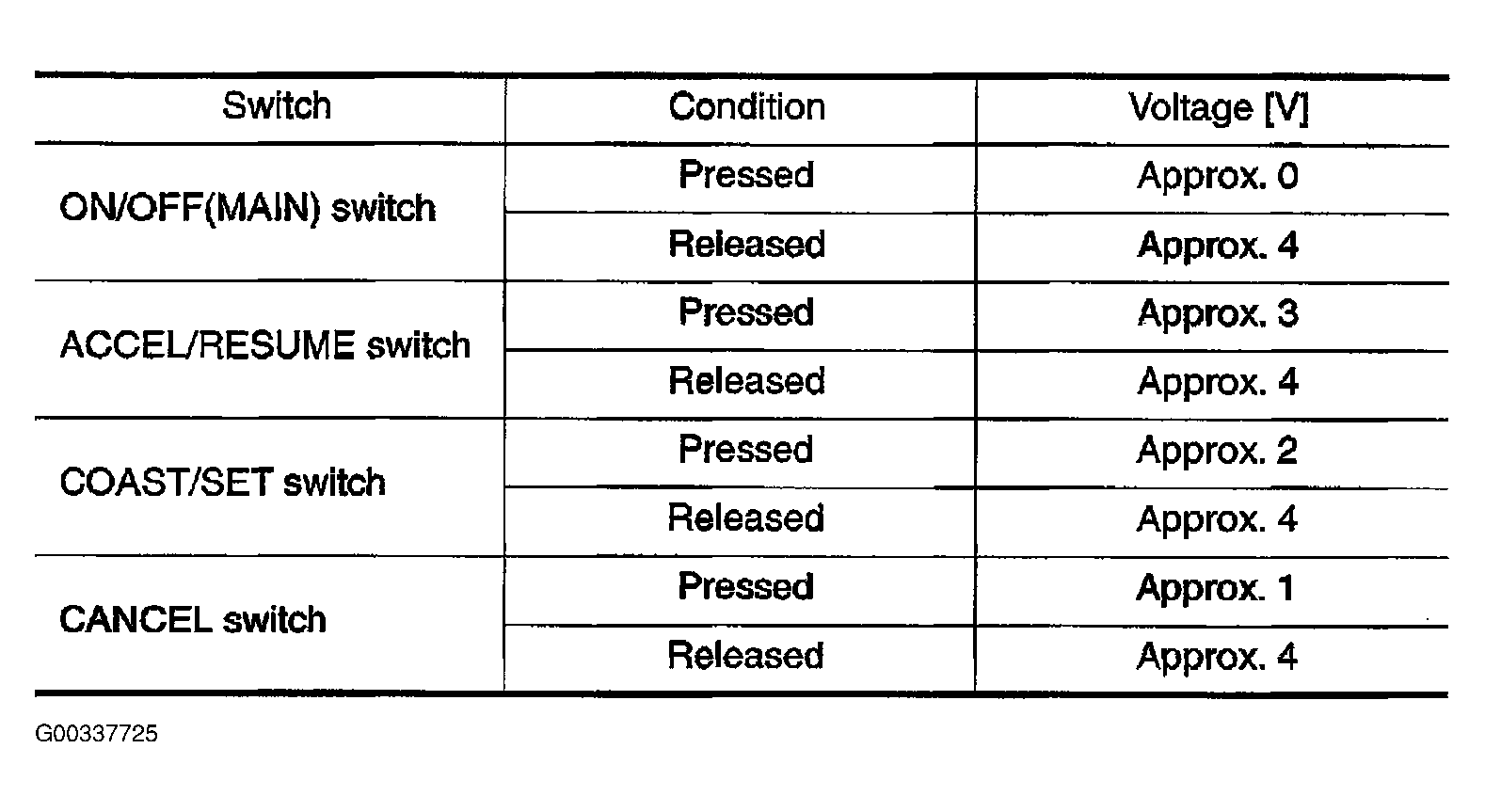

Fig 3: Checking ASCD Steering Switch Without CONSULT-II (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Checking ASCD Steering Switch Without CONSULT-II (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK >> GO TO 7. CHECK INTERMITTENT INCIDENT .

NG >> GO TO 2. CHECK ASCD STEERING SWITCH GROUND CIRCUIT FOR OPEN AND SHORT .
