Specifications & Procedures: Specifications

Use illustration for front wheel alignment specifications. See Fig 1 and Fig 2 .

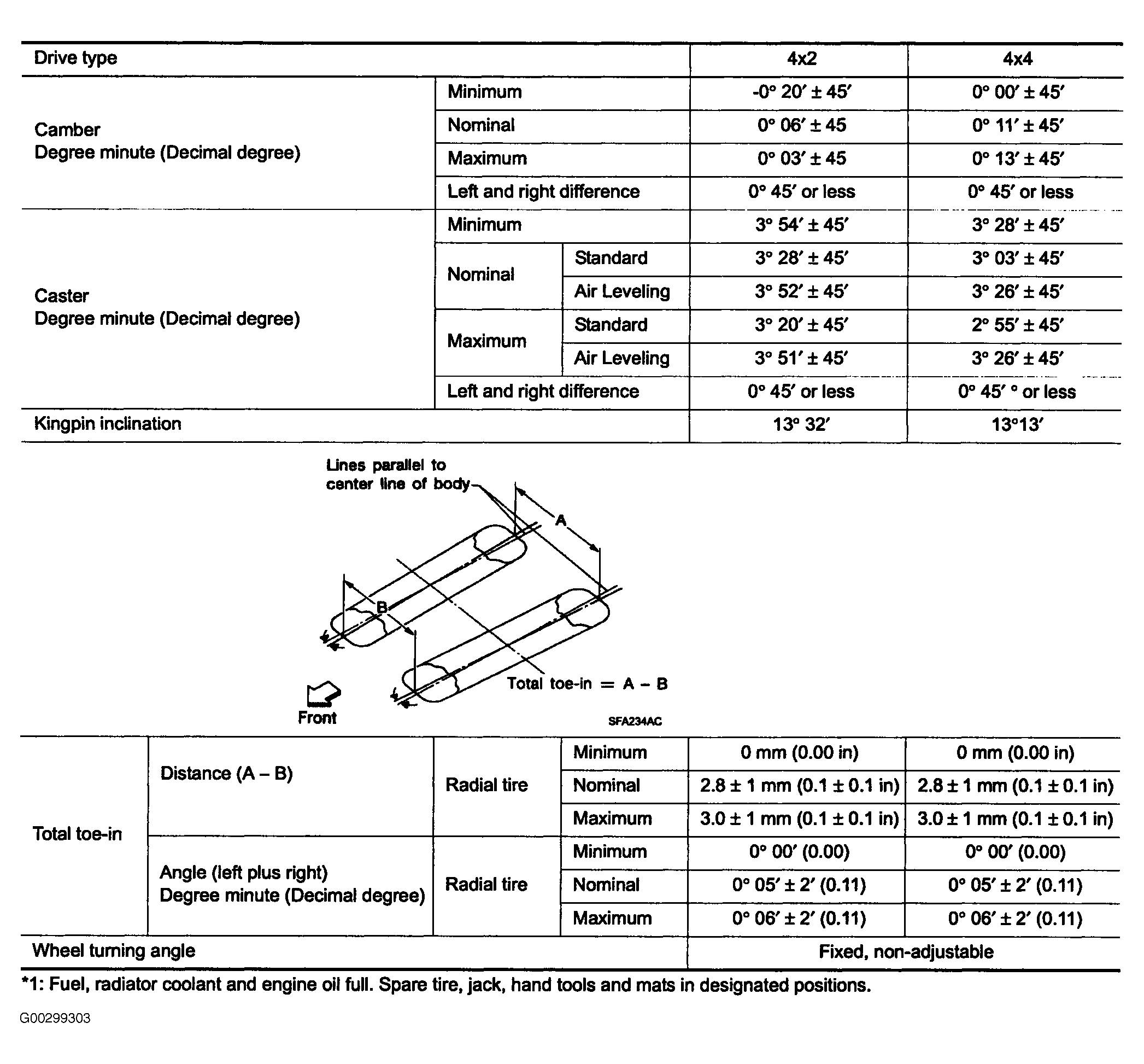

Fig 1: Front Wheel Alignment Specifications (Pathfinder Armada)

Courtesy of NISSAN MOTOR CO., U.S.A.

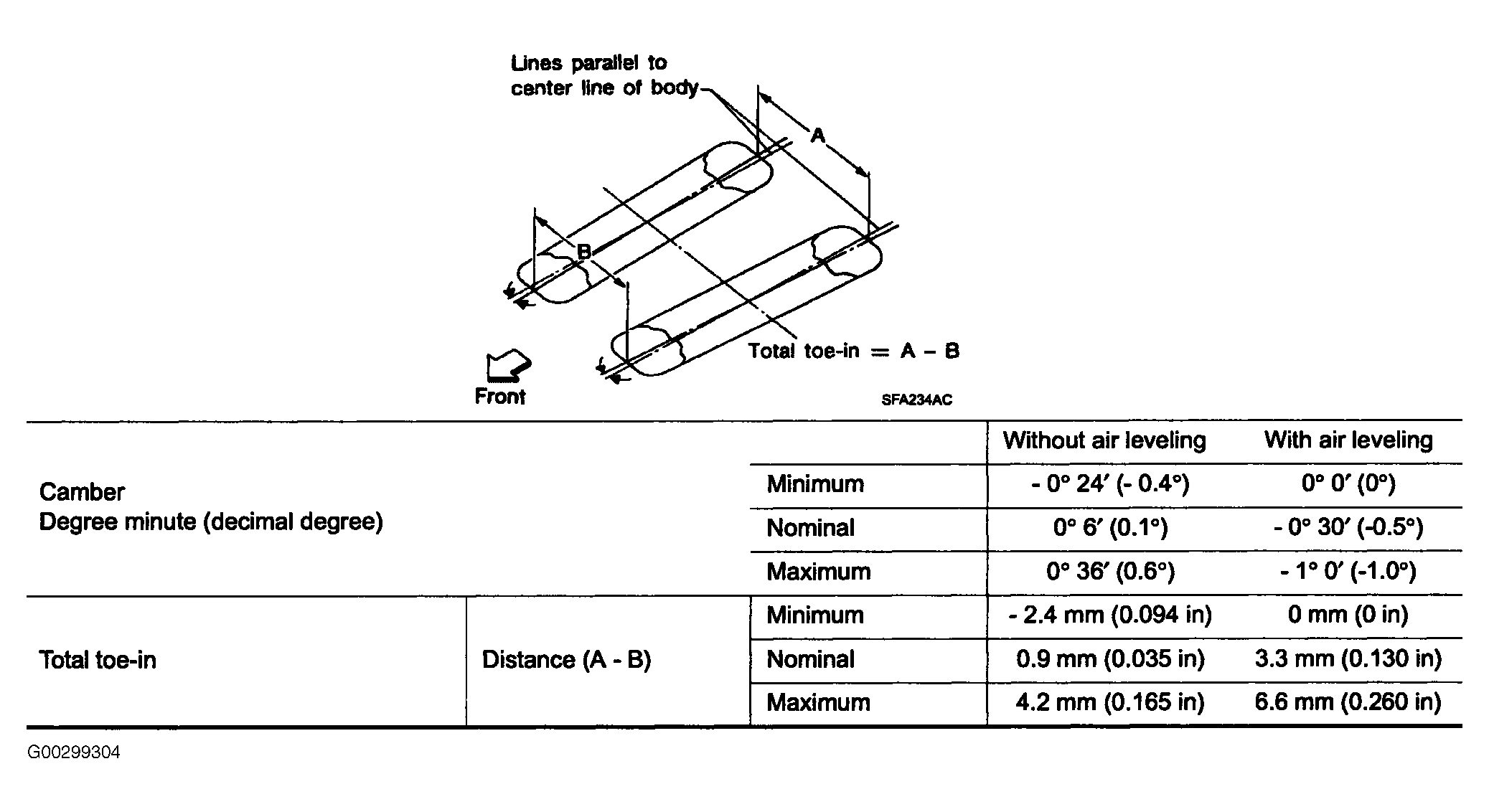

Fig 2: Rear Wheel Alignment Specifications (Pathfinder Armada)

Courtesy of NISSAN MOTOR CO., U.S.A.
