Disassembly and Assembly: Notes

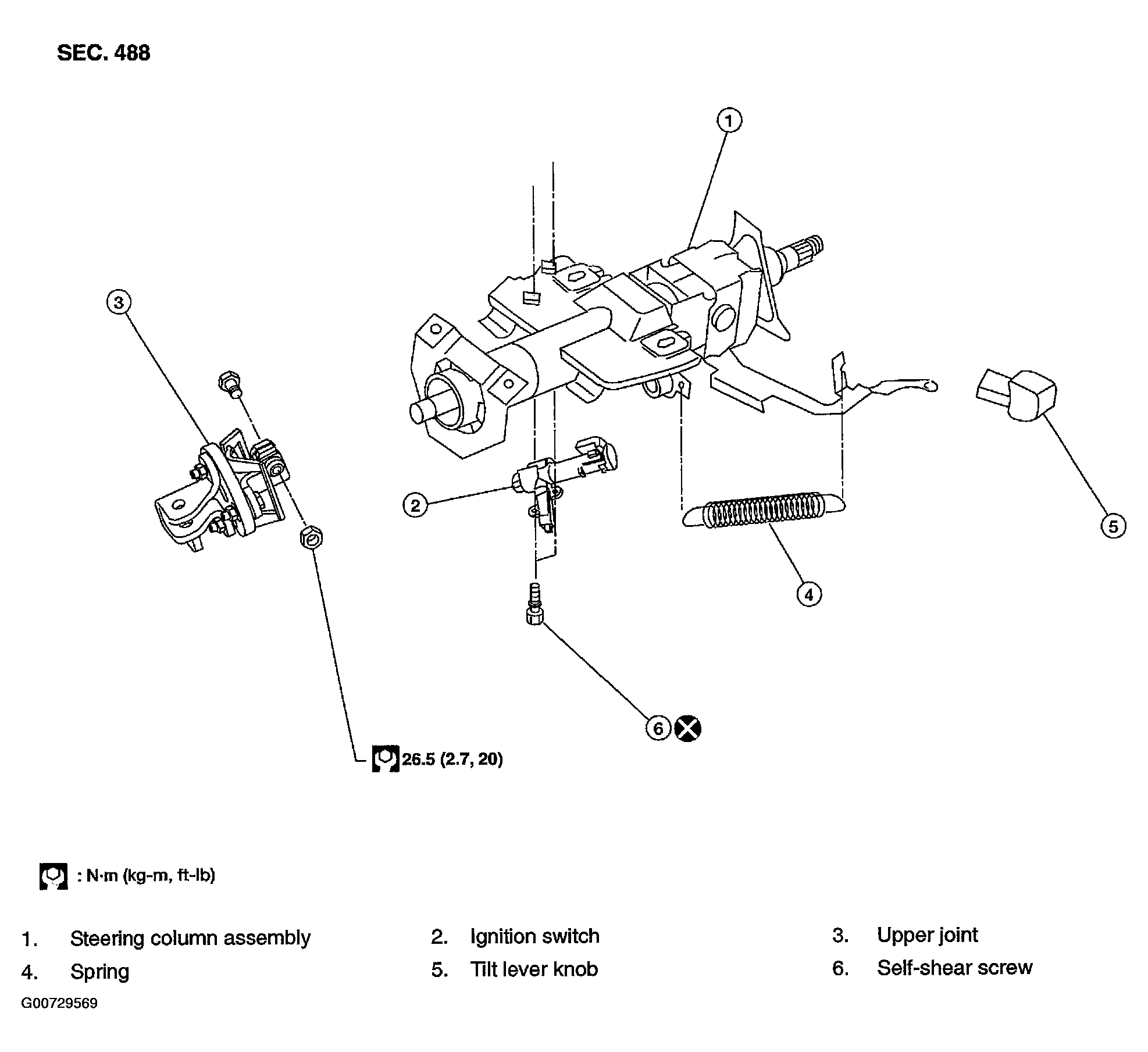

Fig 1: Exploded View Of Steering Column Assembly And Tilt Lever
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
