Removal And Installation: Notes

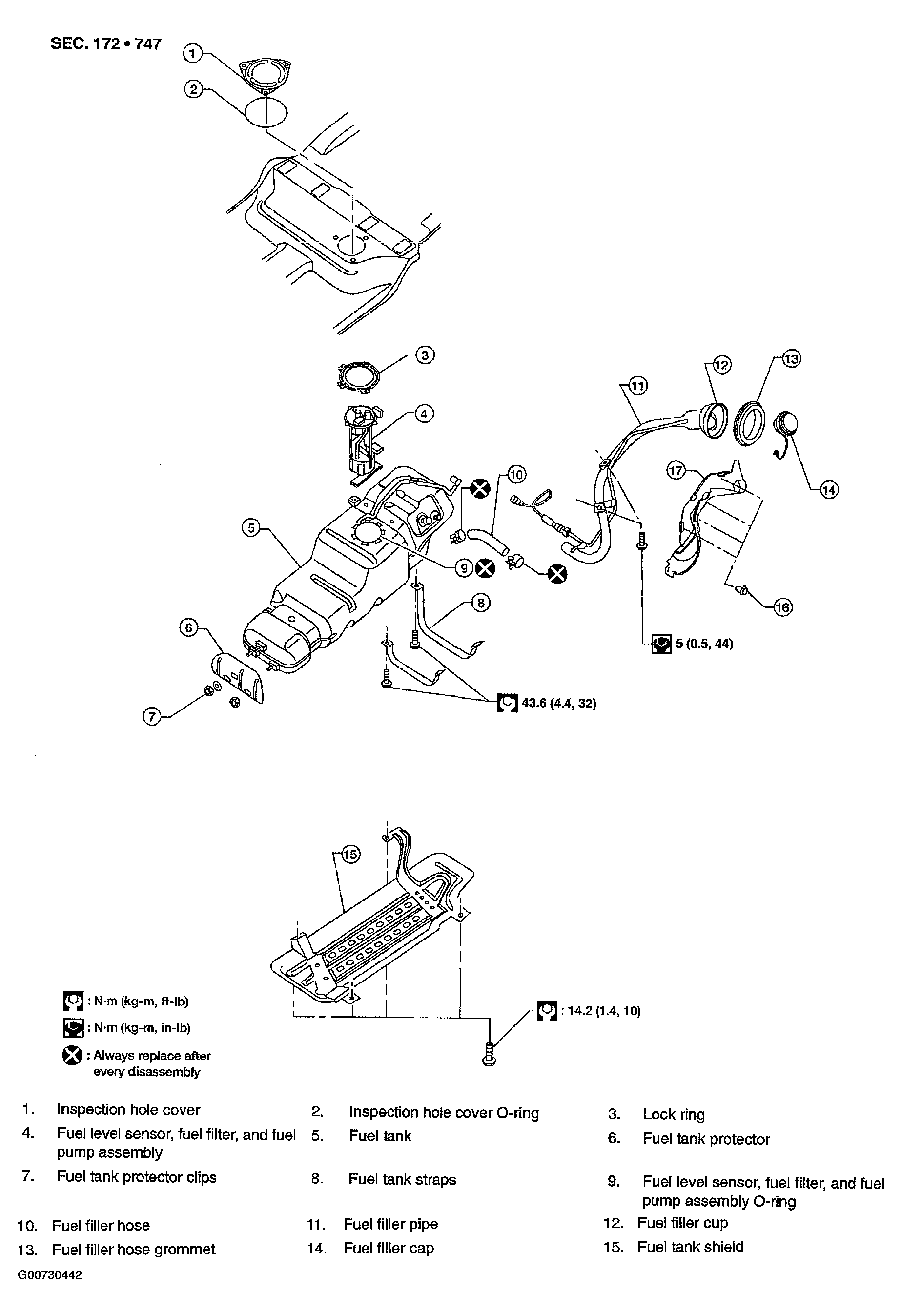

Fig 1: Exploded View Of Fuel Tank Assembly

G00730442

Courtesy of NISSAN MOTOR CO., U.S.A.
