Nissan-Datsun
>>
2004
>>
Armada LE, 4WD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Trouble Diagnosis
>>
Trouble Diagnosis Introduction
>>
Flow Chart
Flow Chart

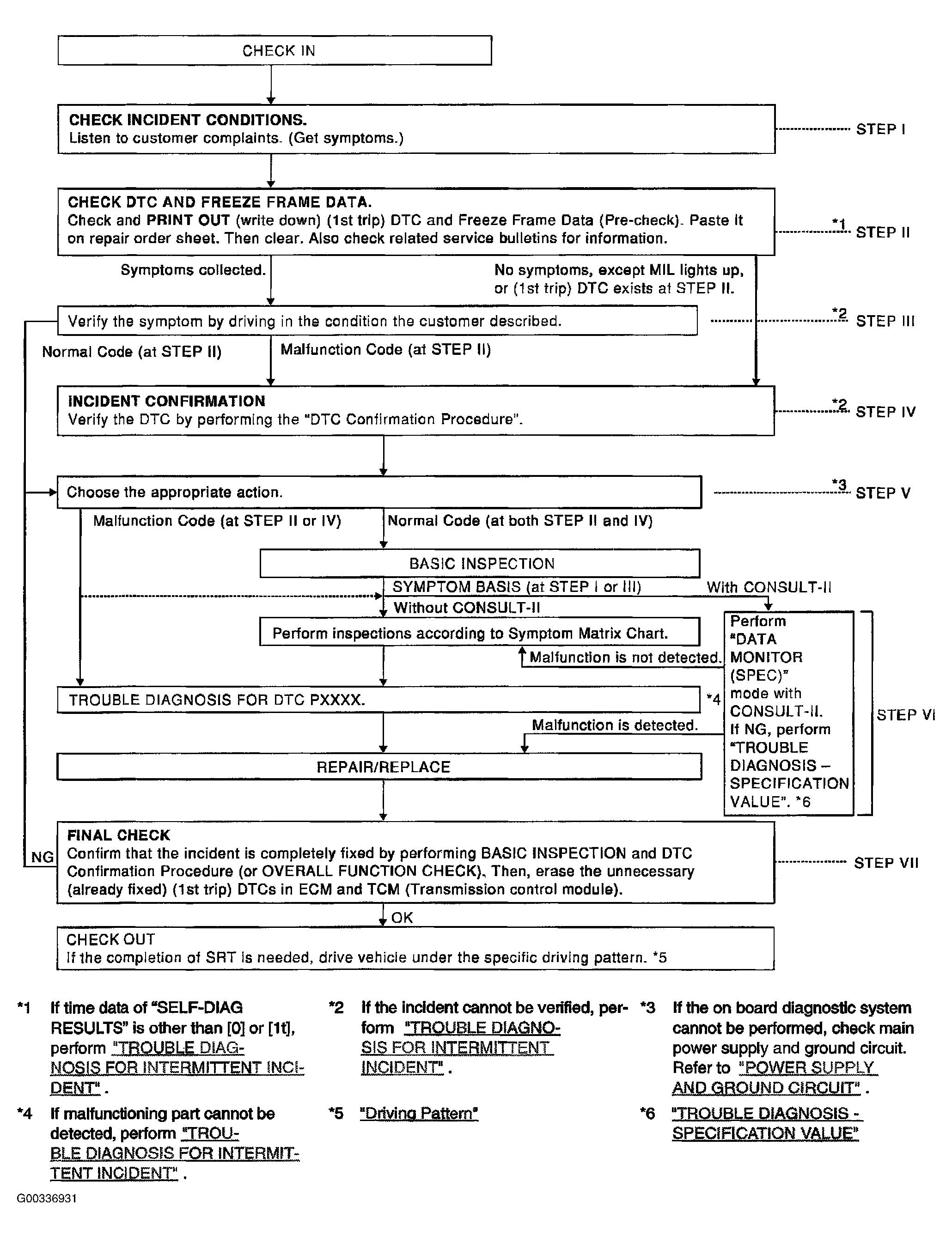

Fig 1: Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
