Generic Scan Tool (GST) Function: Function

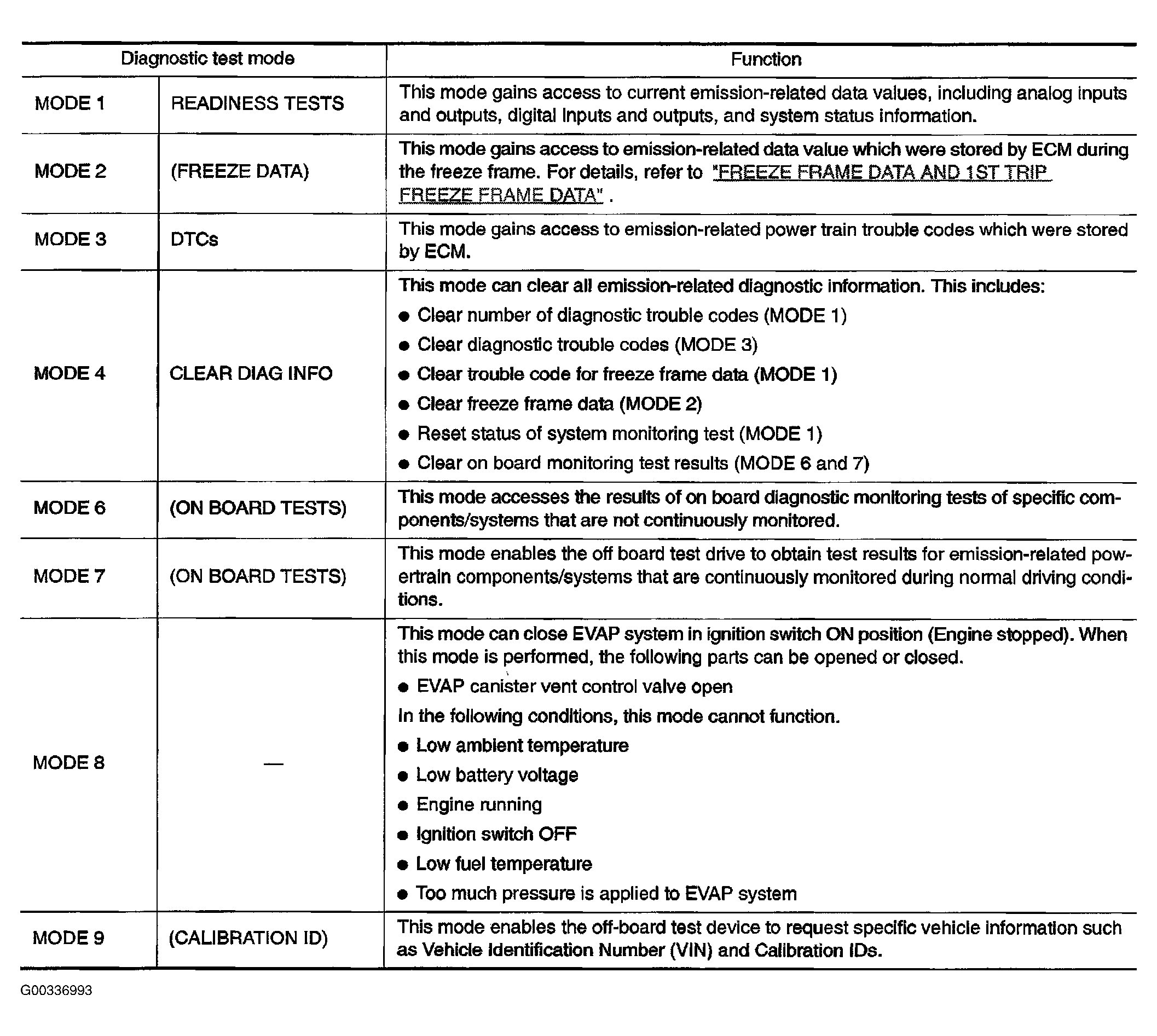

Fig 1: Function

G00336993

Courtesy of NISSAN MOTOR CO., U.S.A.
