CONSULT-II Reference Value in Data Monitor
CONSULT-II Reference Value in Data Monitor

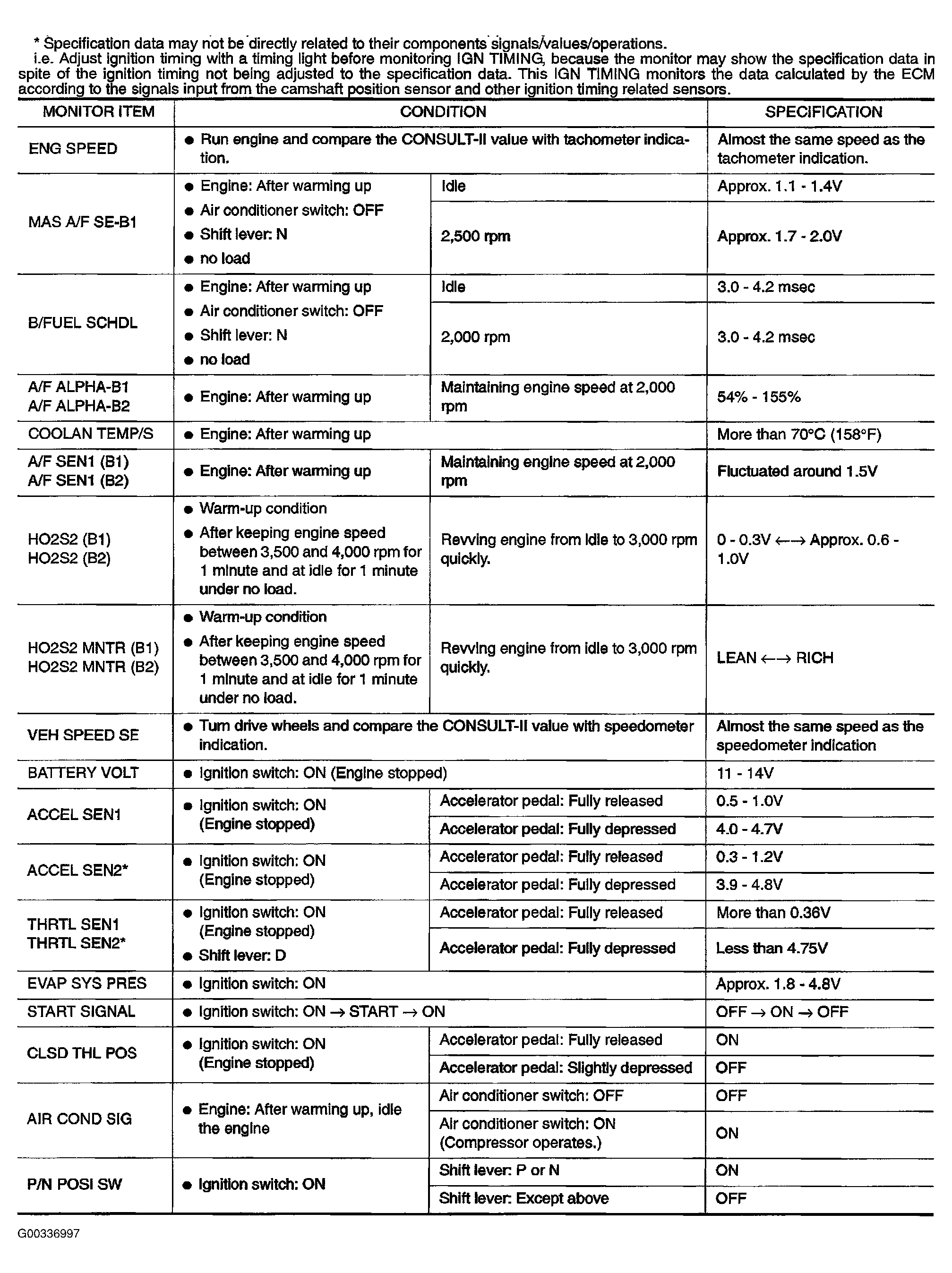

Fig 1: CONSULT-II Reference Value in Data Monitor (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

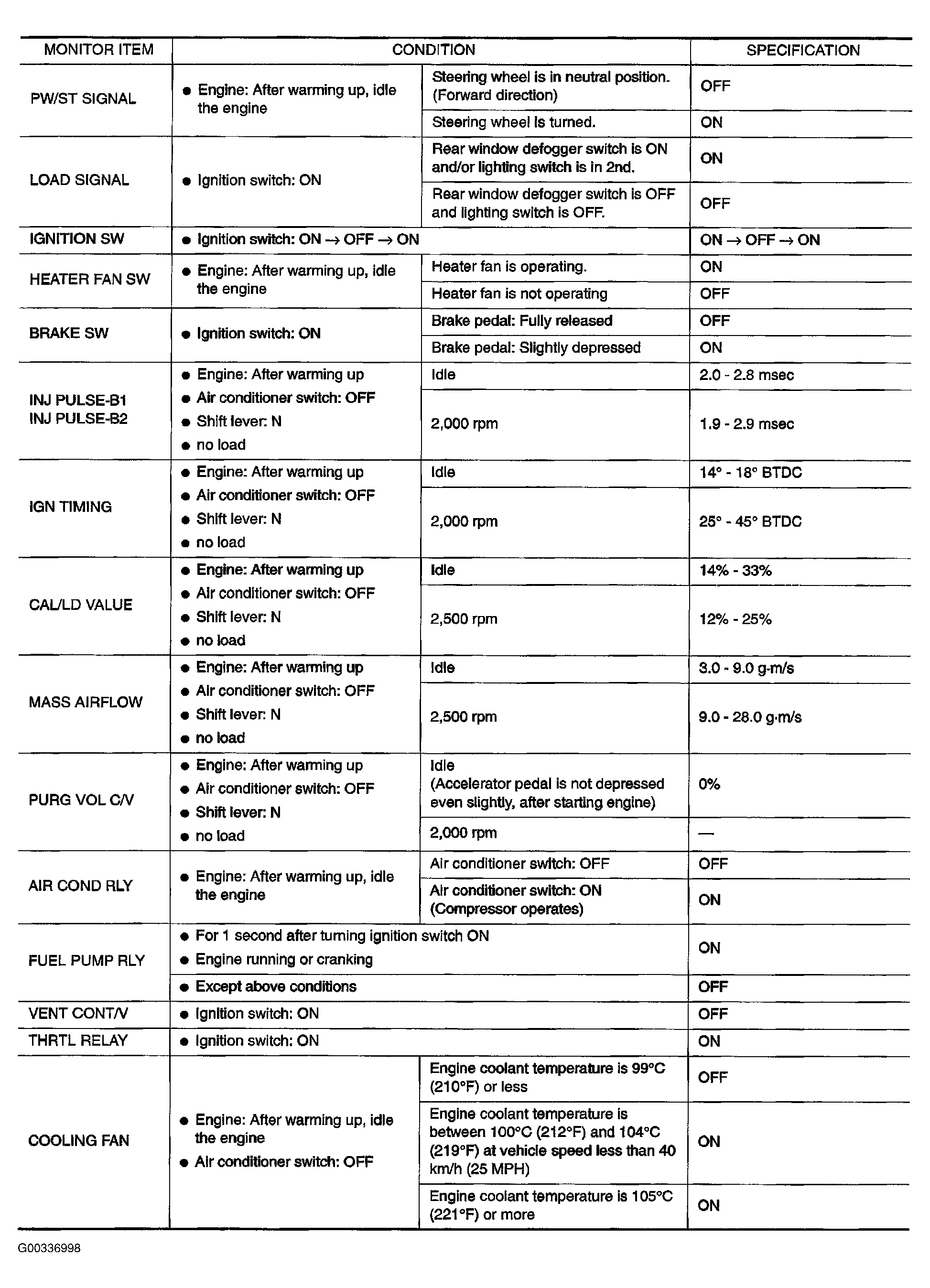

Fig 2: CONSULT-II Reference Value in Data Monitor (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

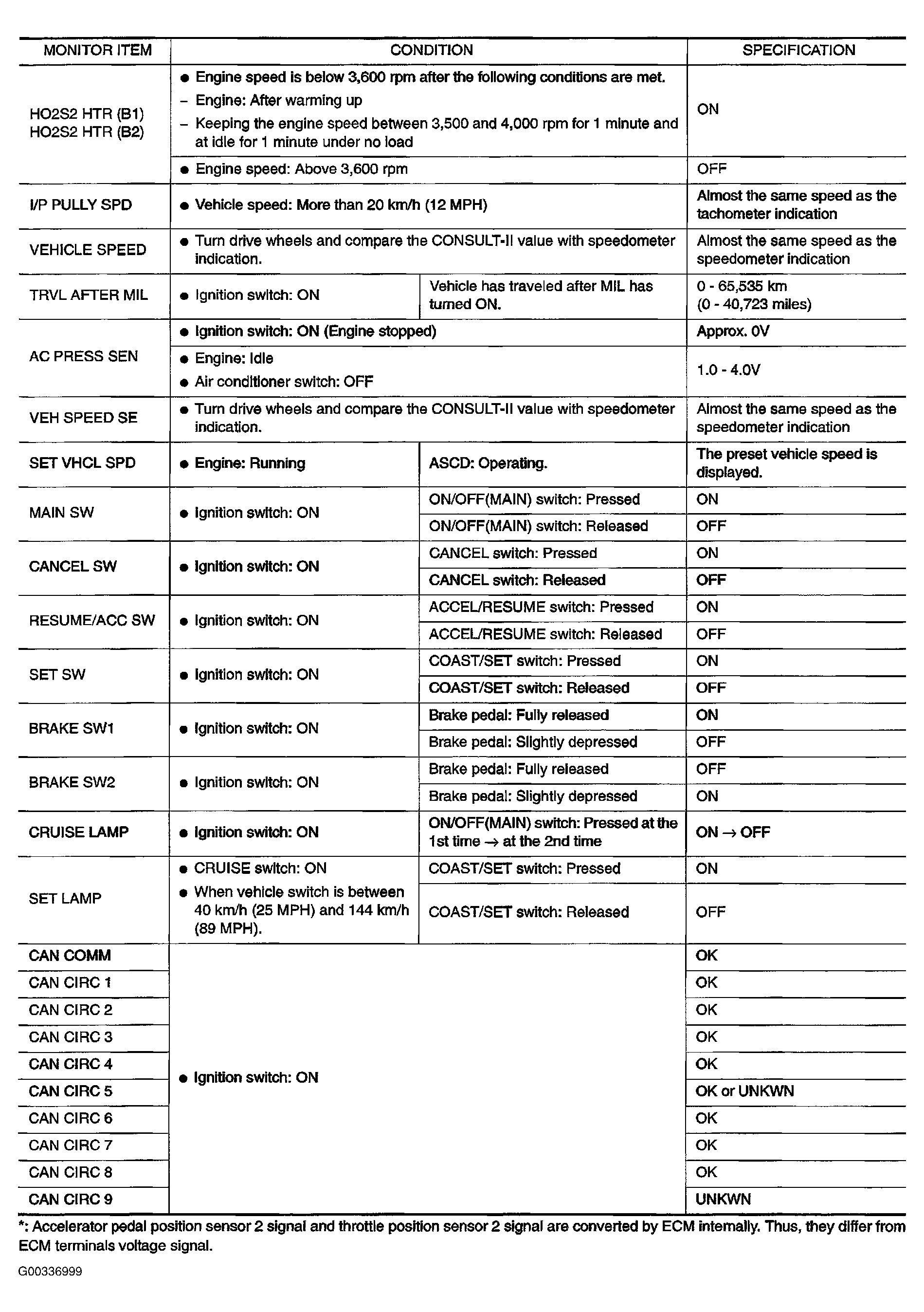

Fig 3: CONSULT-II Reference Value in Data Monitor (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
