Nissan-Datsun
>>
2004
>>
Armada LE, 4WD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System
>>
System Chart
System Chart

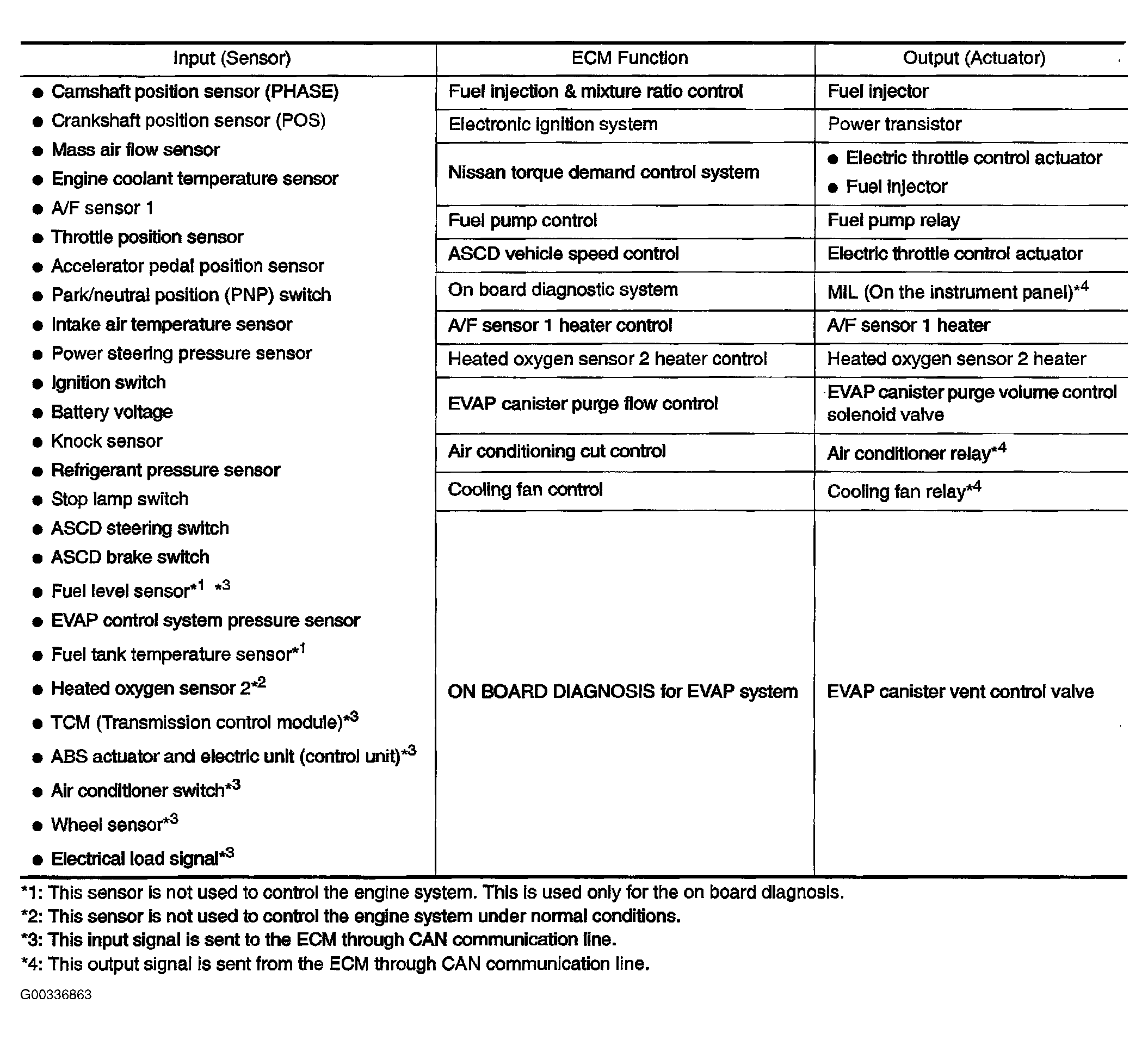

Fig 1: System Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
