DTC P1217: Engine Over Temperature
>>
Wiring Diagram
DTC P1217: Engine Over Temperature: Wiring Diagram

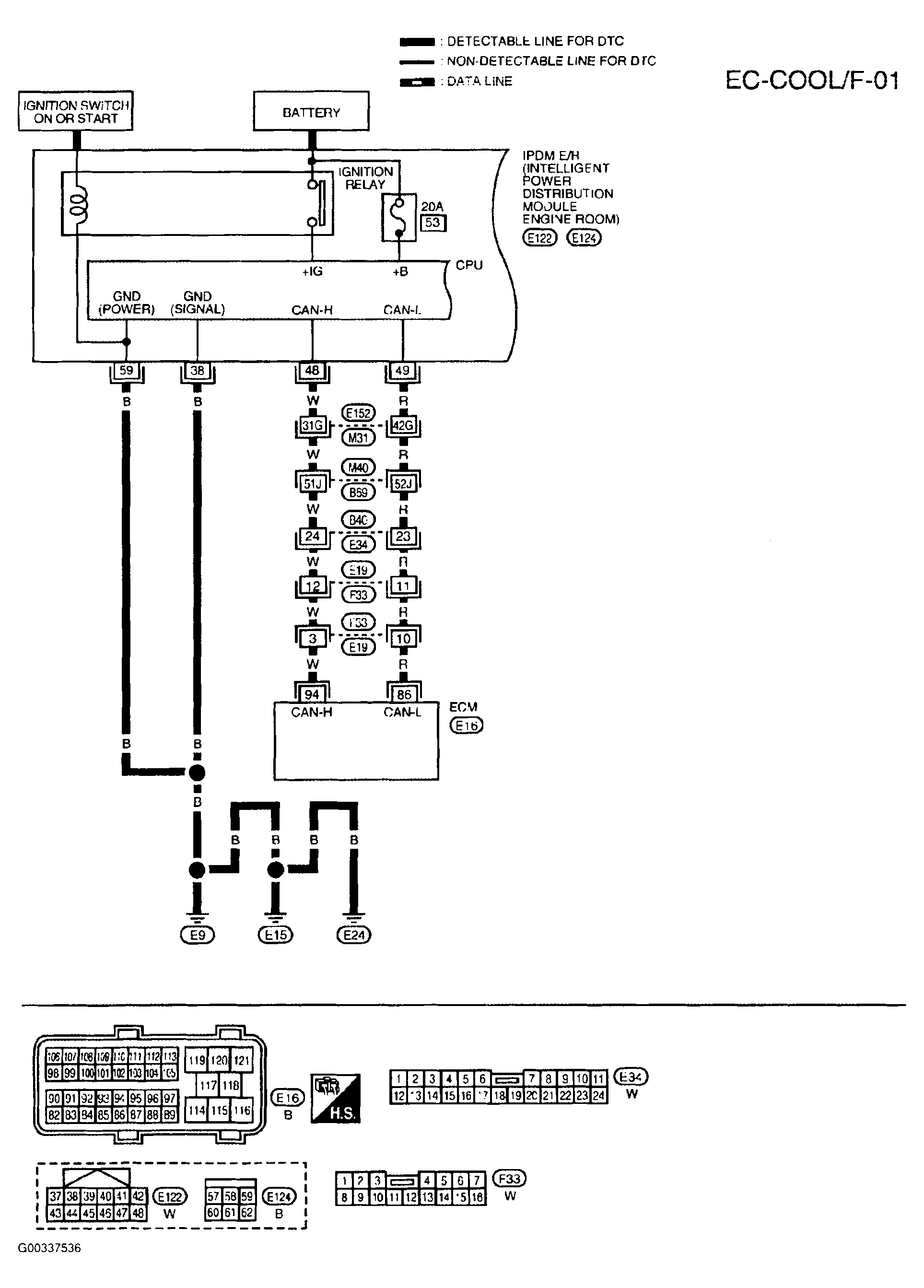

Fig 1: Wiring Diagram - EC-COOL/F-01
Courtesy of NISSAN MOTOR CO., U.S.A.

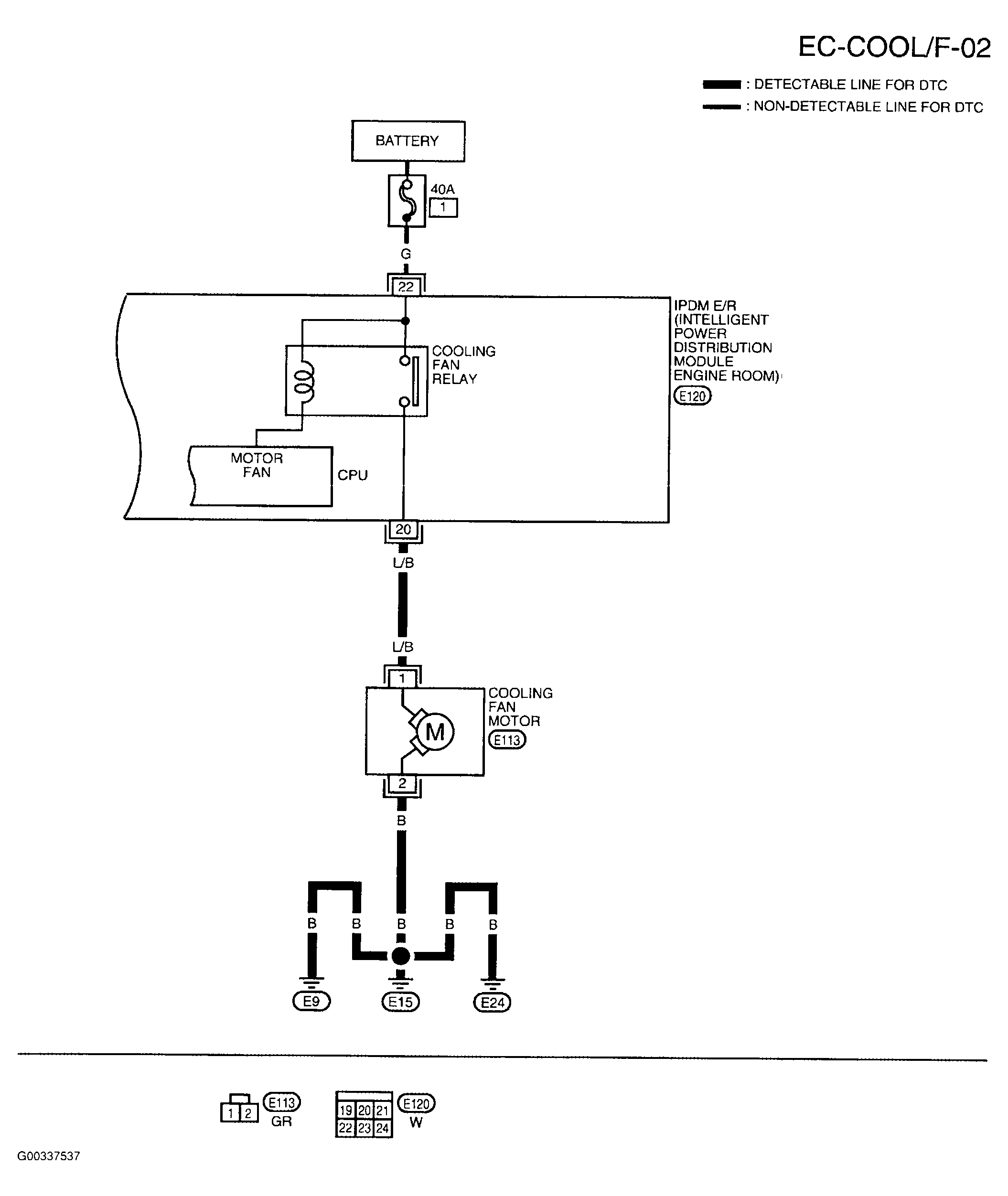

Fig 2: Wiring Diagram - EC-COOL/F-02
Courtesy of NISSAN MOTOR CO., U.S.A.
