CAUTION:
The display shows the control unit calculation data, so a normal value might be displayed even in the event the output circuit (harness) is open or short circuited.

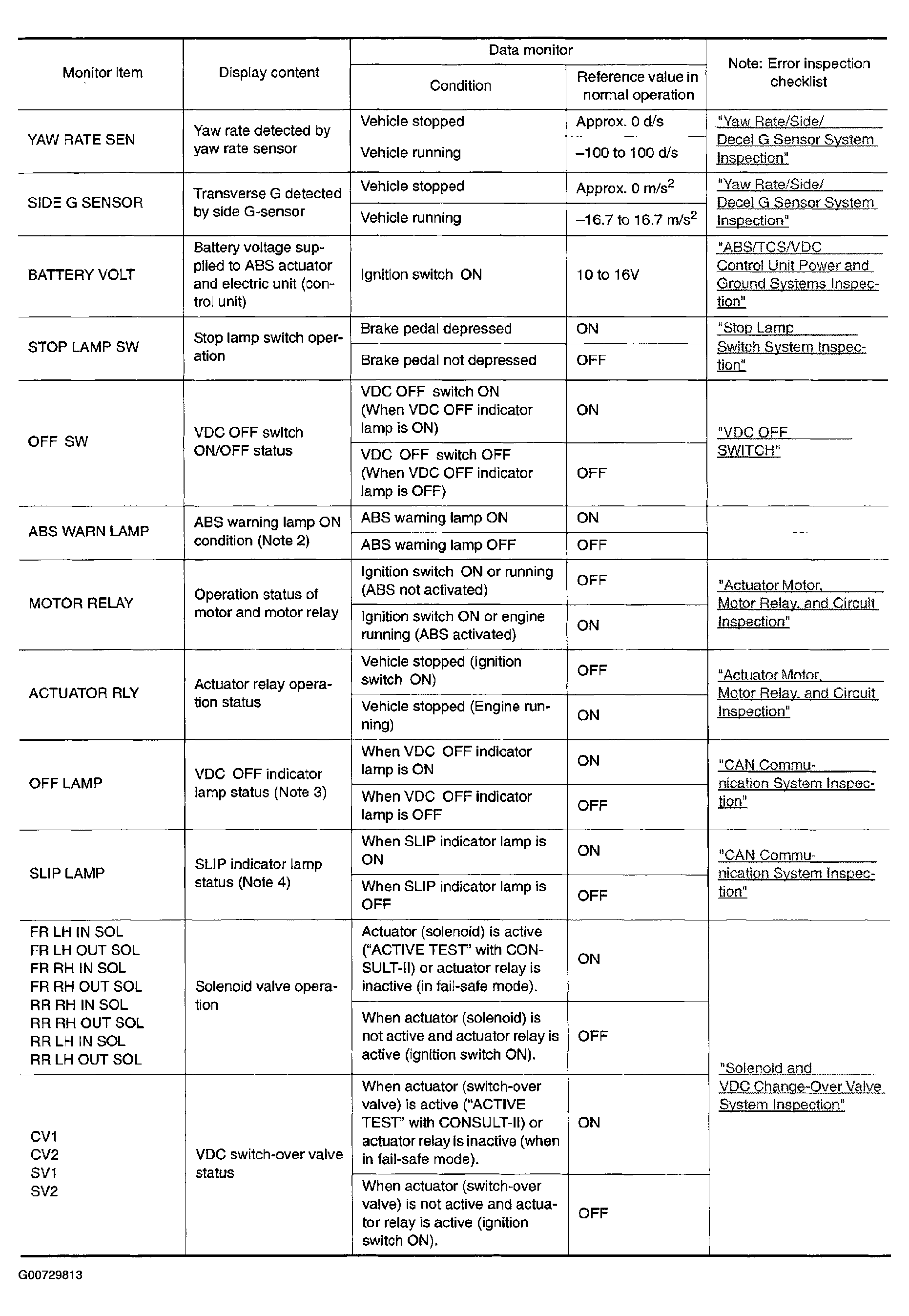

Fig 1: Reference Value From Consult-II Table (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

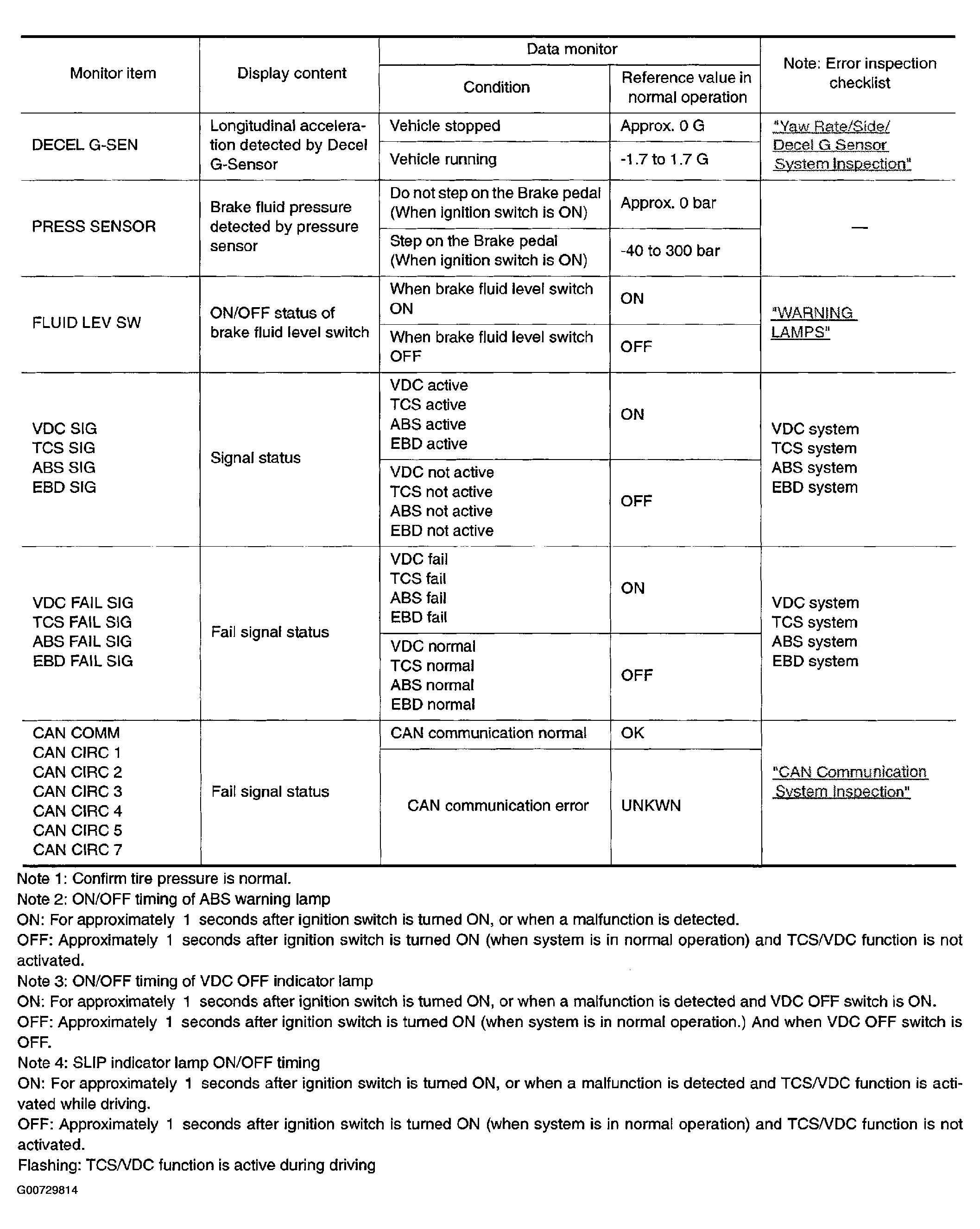

Fig 2: Reference Value From Consult-II Table (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

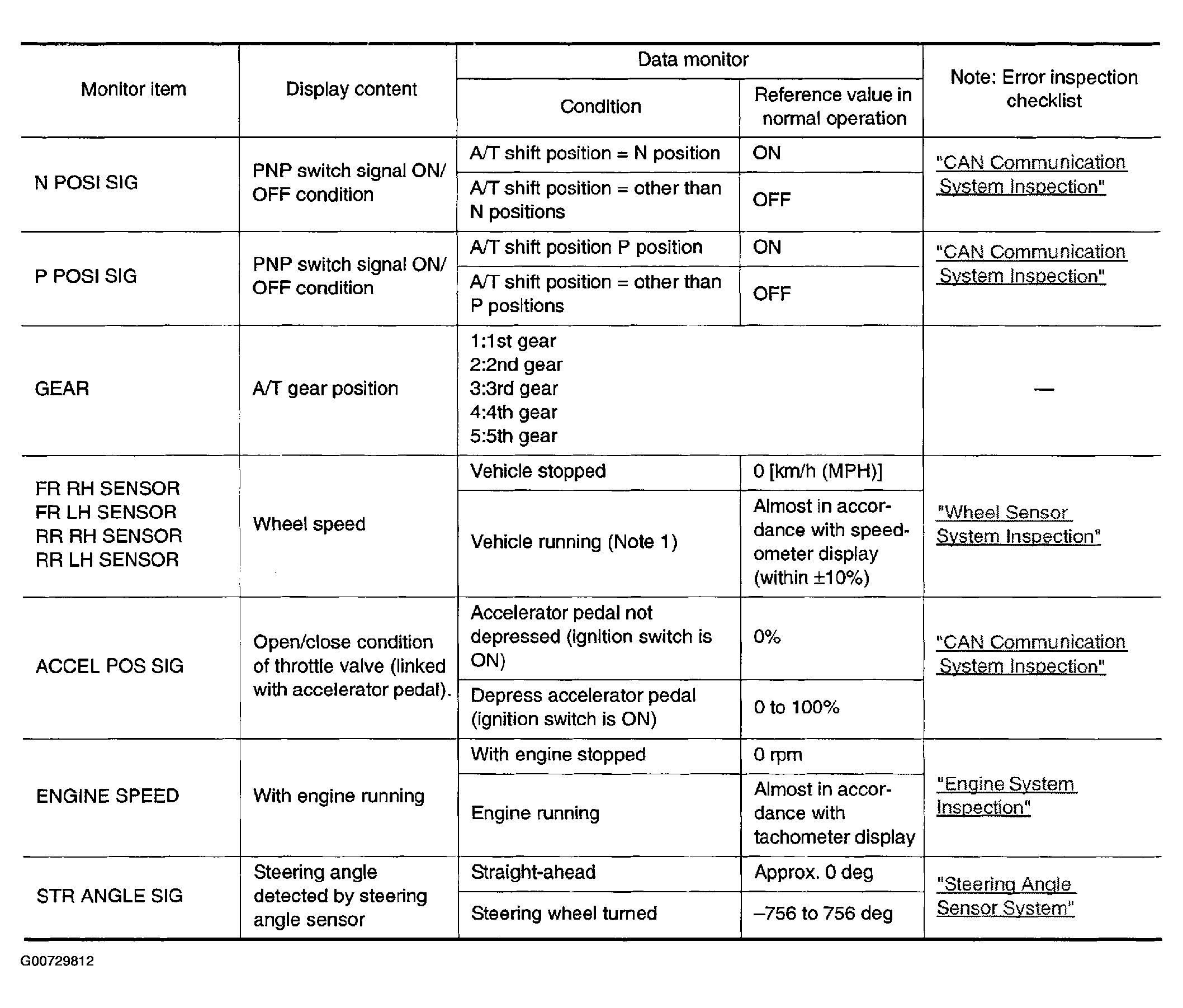

Fig 3: Reference Value From Consult-II Table (3 Of 3)
