Active Test

CAUTION:

Operation Procedure

Connect the CONSULT-II and CONSULT-II CONVERTER to the data link connector and start the engine.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
Touch "START (NISSAN BASED VHCL)" on the display screen.
Touch "ABS".
If "ABS" is not indicated, go to "CONSULT-II Data Link Connector (DLC) Circuit ".
Touch "ACTIVE TEST".
The test item selection screen is displayed.
Touch necessary test item.

Fig 1: CONSULT-II "ACTIVE TEST" Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
With the "MAIN ITEM" display shown in reverse, touch "START".
The Active Test screen will be displayed, so conduct the following test.

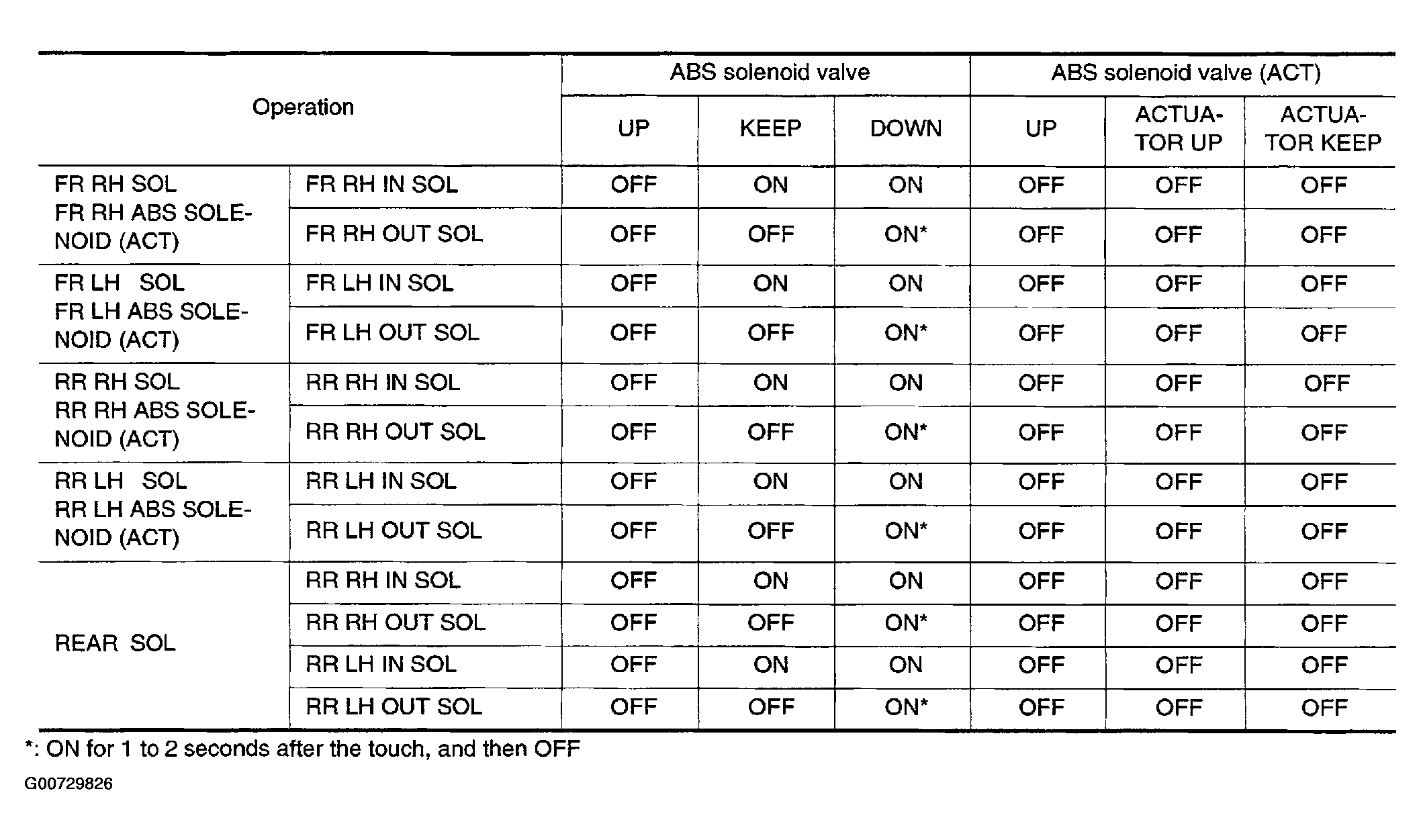

Solenoid Valve Operation Chart

Fig 2: ABS Solenoid Valve Operation Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

If active test is performed with brake pedal depressed, pedal stroke may change. This is normal.
"TEST IS STOPPED" is displayed approximately 10 seconds after operation starts.
After "TEST IS STOPPED" is displayed, to perform test again, repeat Step 6.

ABS Motor

Touch "ON" and "OFF" on the screen. Check that ABS motor relay operates as shown in Fig 3.

Fig 3: CONSULT-II "ACTIVE TEST" Results Table

Courtesy of NISSAN MOTOR CO., U.S.A.

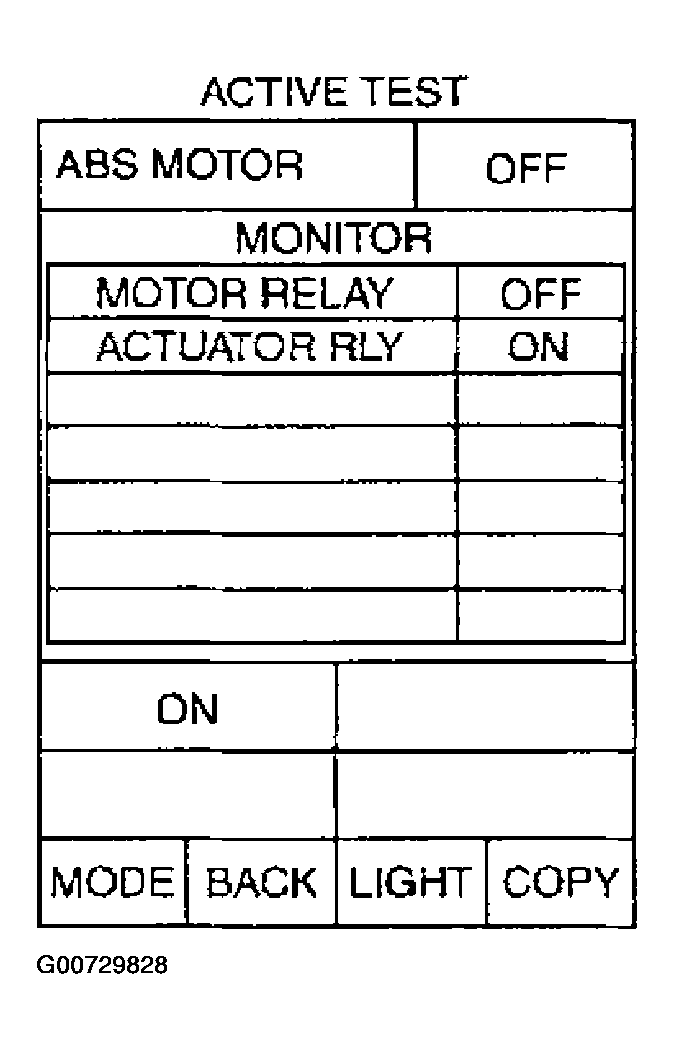

Fig 4: CONSULT-II "ACTIVE TEST" Screen

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

If active test is performed with brake pedal depressed, pedal stroke may change. This is normal.
"TEST IS STOPPED" is displayed approximately 10 seconds after operation starts.
