Shift Fork

Check if the width of shift fork hook (sliding area with coupling sleeve) is within allowable specification below.

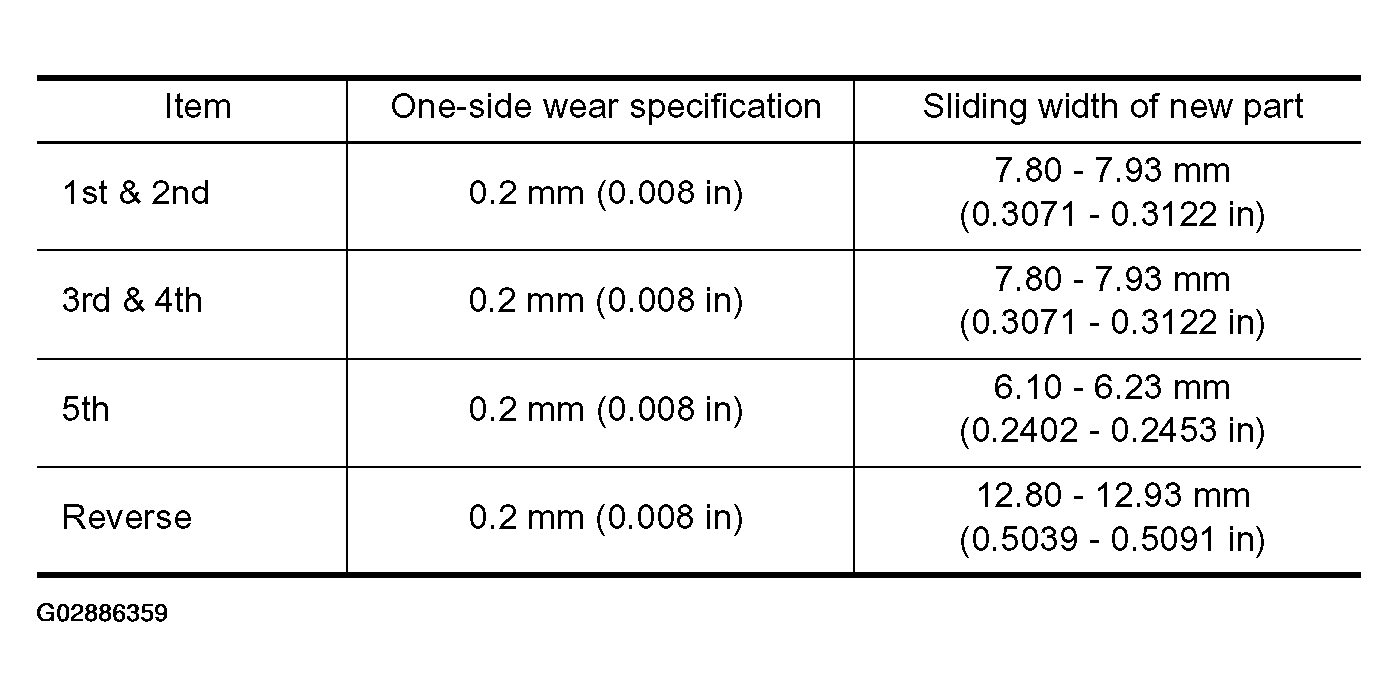

Fig 1: Shift Fork Specification Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Checking Shift Fork
Courtesy of NISSAN MOTOR CO., U.S.A.
