Home >> Nissan-Datsun >> 2004 >> Altima SL, Standard >> Repair and Diagnosis >> Transmission >> Manual Transaxle >> Service Data And Specifications (SDS) >> General Specifications >> Transaxle

General Specifications: Transaxle

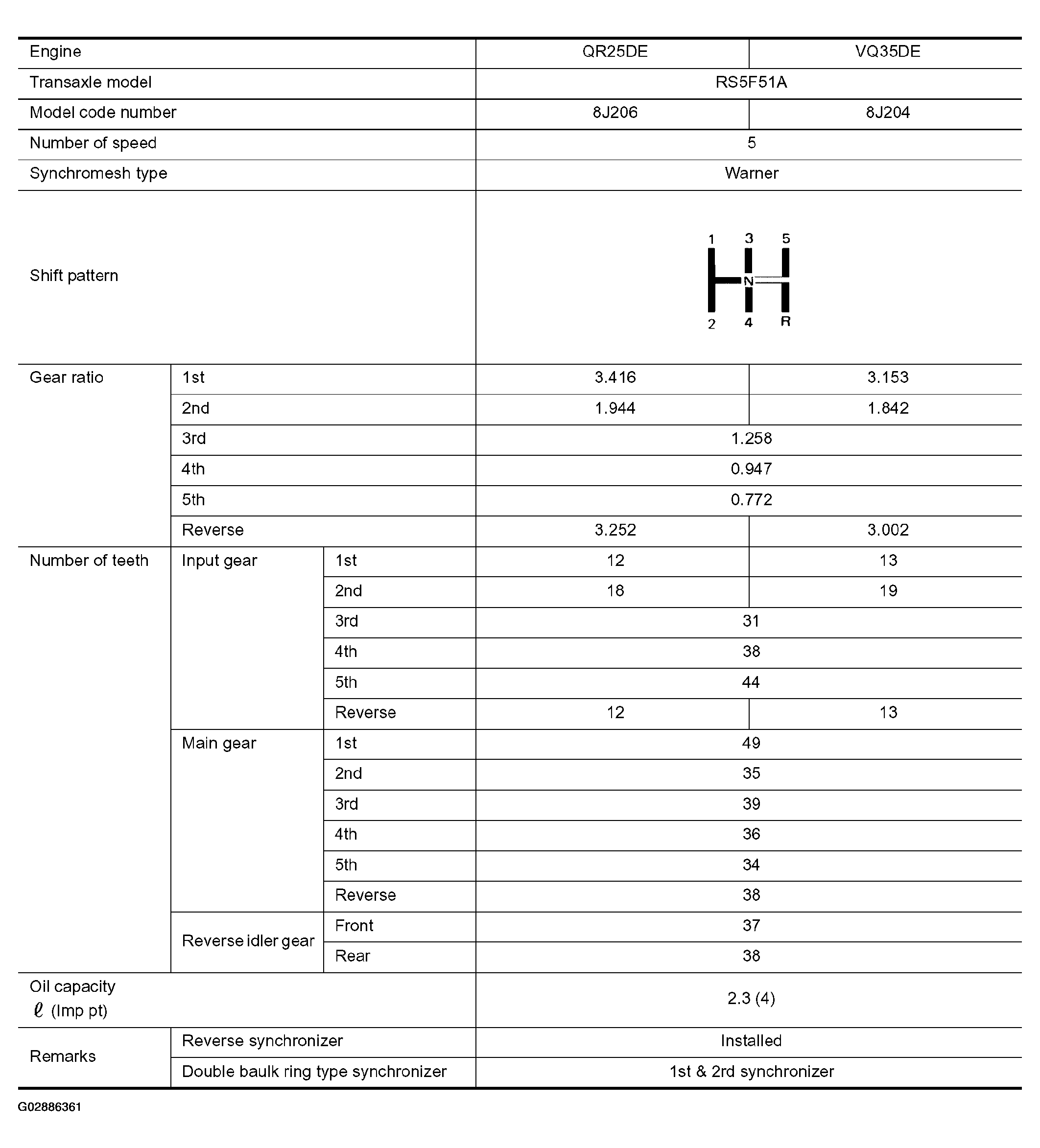

Fig 1: General Transaxle Specifications

G02886361

Courtesy of NISSAN MOTOR CO., U.S.A.
