Back-Up Lamp Switch

Check continuity.

BACK-UP LAMP SWITCH CONTINUITY

Gear position	Continuity
Reverse	Yes
Except reverse	No

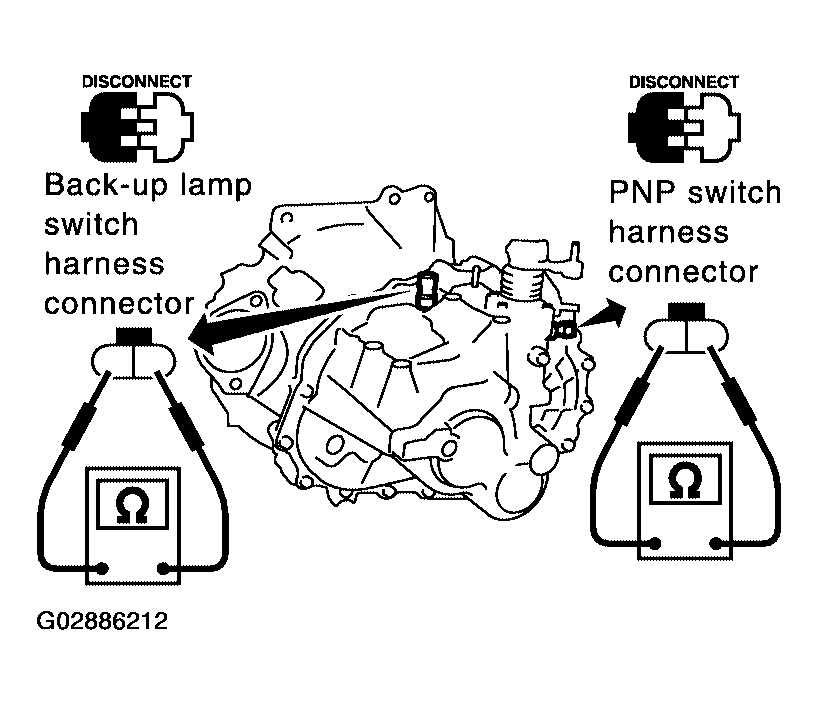

Fig 1: Back-Up Lamp Switch Continuity Test

Courtesy of NISSAN MOTOR CO., U.S.A.
