Removal and Installation: Installation

Install the sensor rotor using a hammer and a wooden block.

• Always replace sensor rotor with new one.

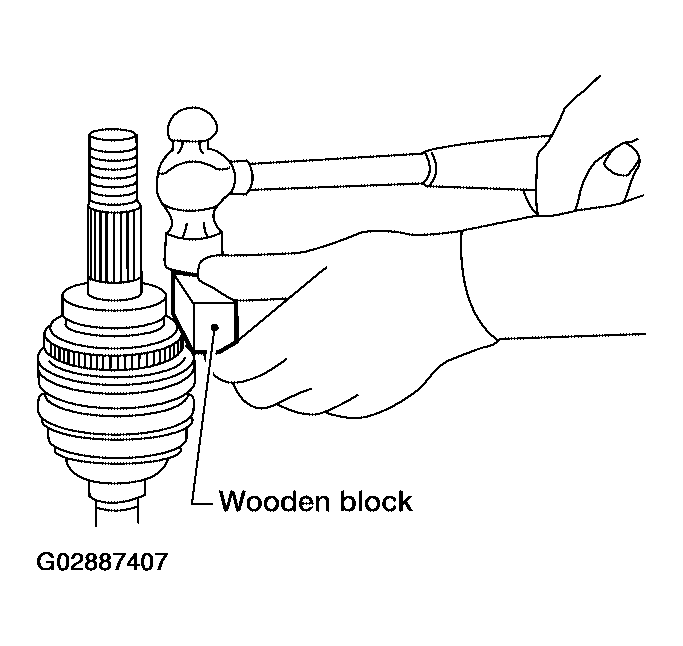

  Fig 1: Installing Sensor Rotor Using Hammer & Wooden Block

  Courtesy of NISSAN MOTOR CO., U.S.A.
