All Signals, Main Signals, Select From Menu

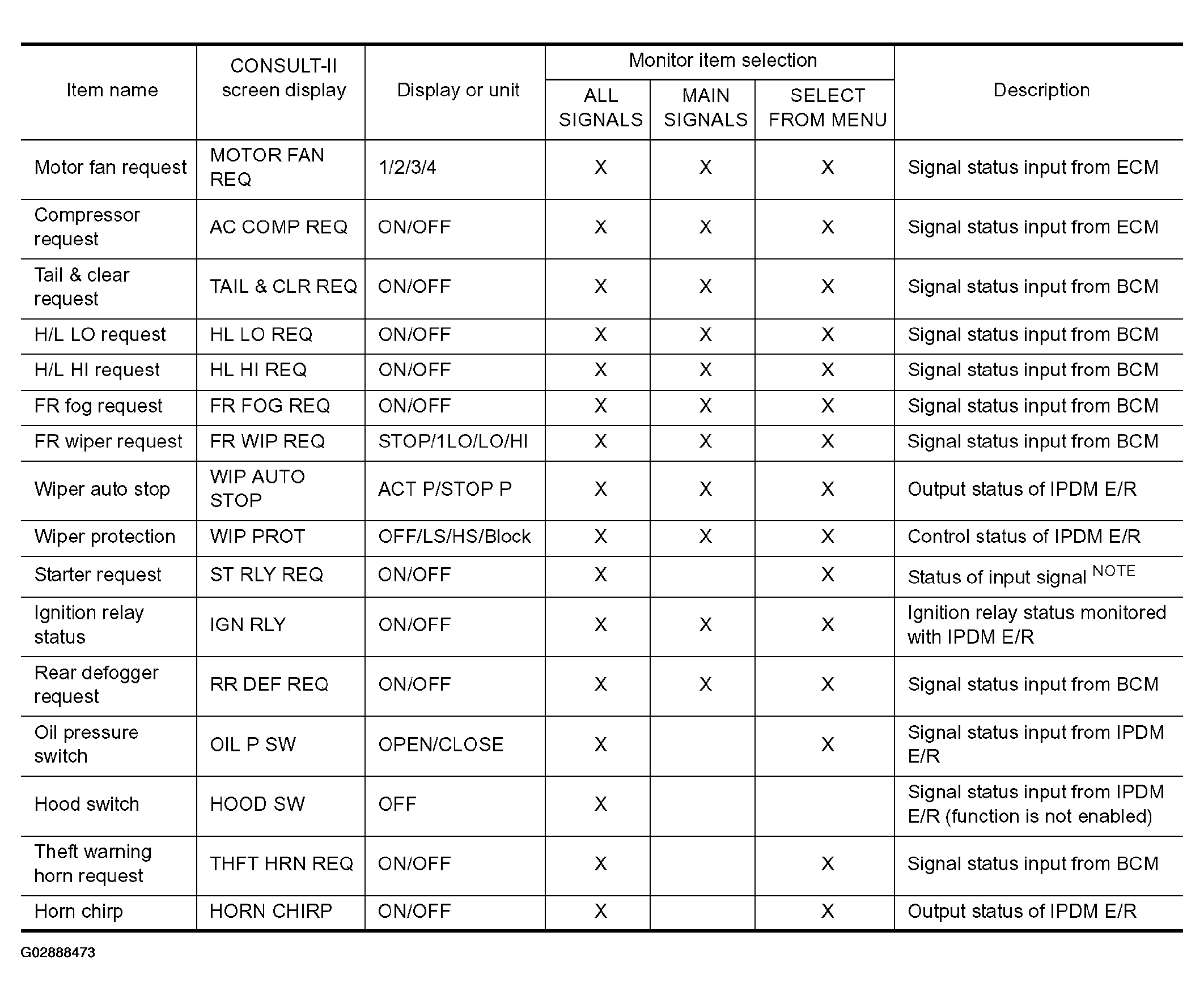

Fig 1: Identifying Scan Tool Display With CONSULT-II
G02888473Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Perform monitoring of IPDM E/R data with the ignition switch ON. When the ignition switch is in ACC position, display may not be correct.
