Check Sheet Results (Example)

NOTE: If "NG" is displayed on "INITIAL DIAG (Initial diagnosis)" as "CAN DIAG SUPPORT MNTR" for the diagnosed control unit, replace the control unit.

Case 1

Replace ECM.

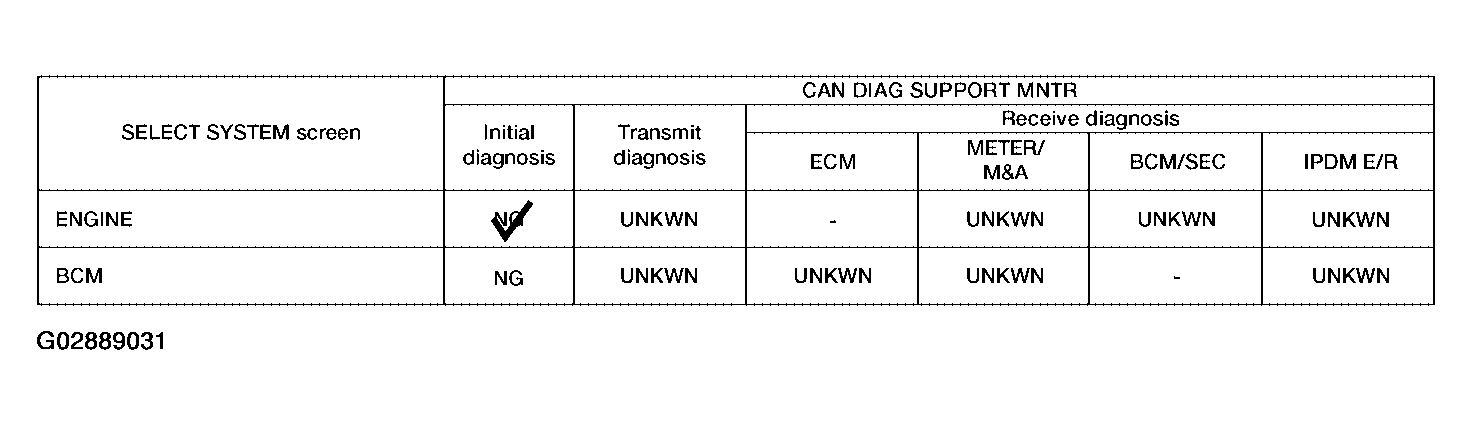

Fig 1: Check Sheet Results Case 1 (1 Of 2)

G02889031

Courtesy of NISSAN MOTOR CO., U.S.A.

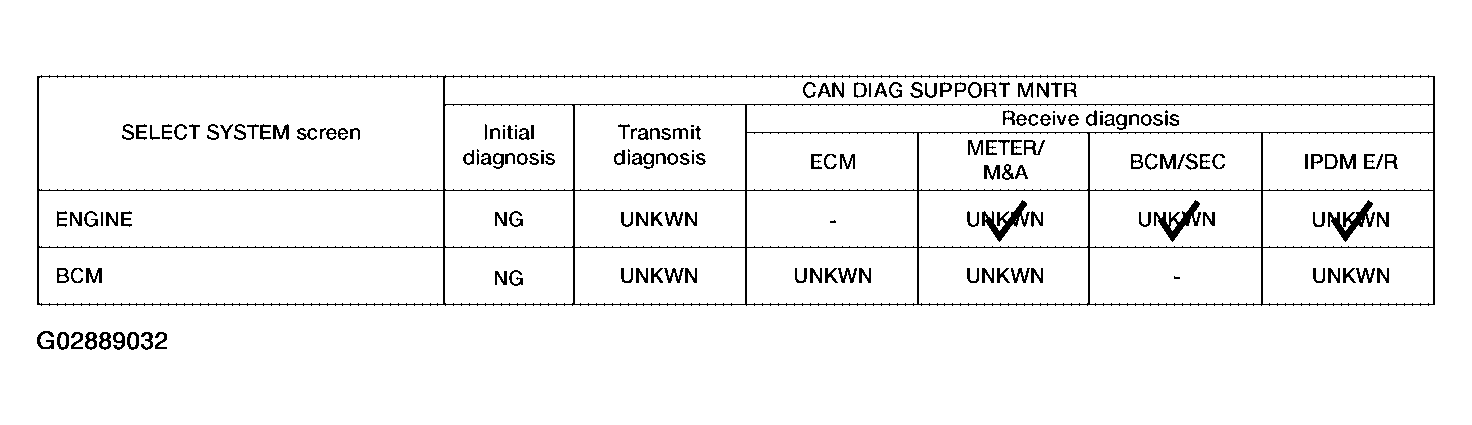

Fig 2: Check Sheet Results Case 1 (2 Of 2)

G02889032

Courtesy of NISSAN MOTOR CO., U.S.A.

Case 2

Replace BCM.

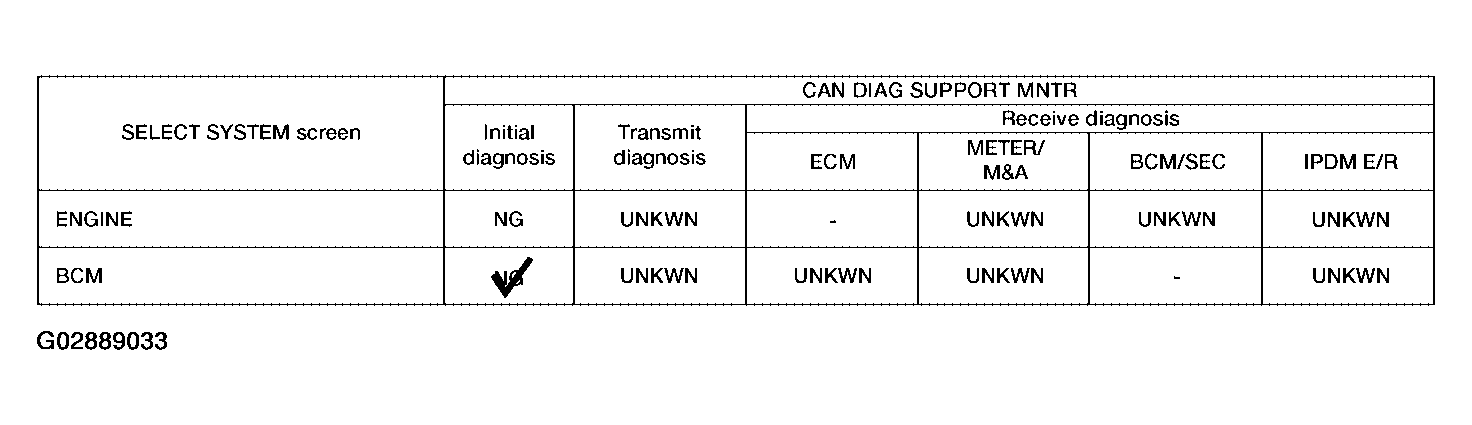

Fig 3: Check Sheet Results Case 2 (1 Of 2)

G02889033

Courtesy of NISSAN MOTOR CO., U.S.A.

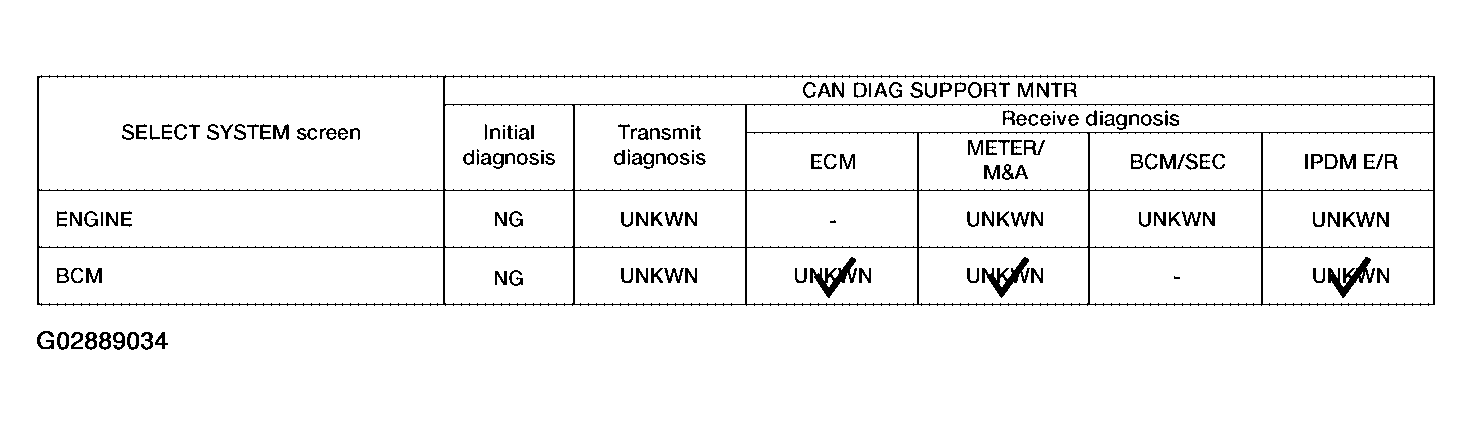

Fig 4: Check Sheet Results Case 1 (2 Of 2)

G02889034

Courtesy of NISSAN MOTOR CO., U.S.A.

Case 3

Check harness between combination meter and BCM. Refer to "CIRCUIT CHECK BETWEEN COMBINATION METER AND BCM ".

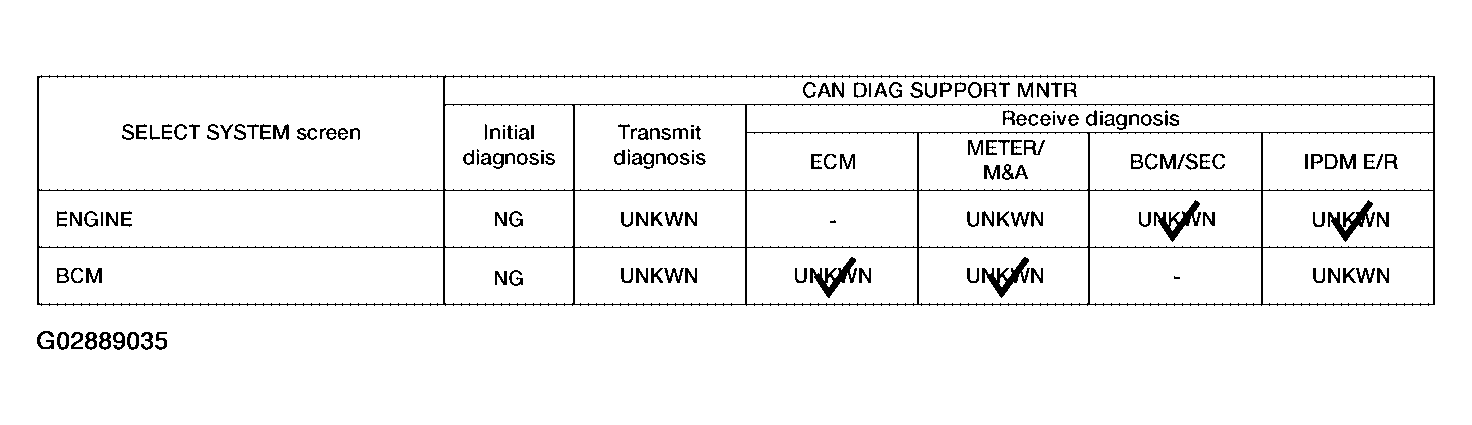

Fig 5: Check Sheet Results Case 3

G02889035

Courtesy of NISSAN MOTOR CO., U.S.A.

Case 4

Check ECM circuit. Refer to "ECM CIRCUIT CHECK ".

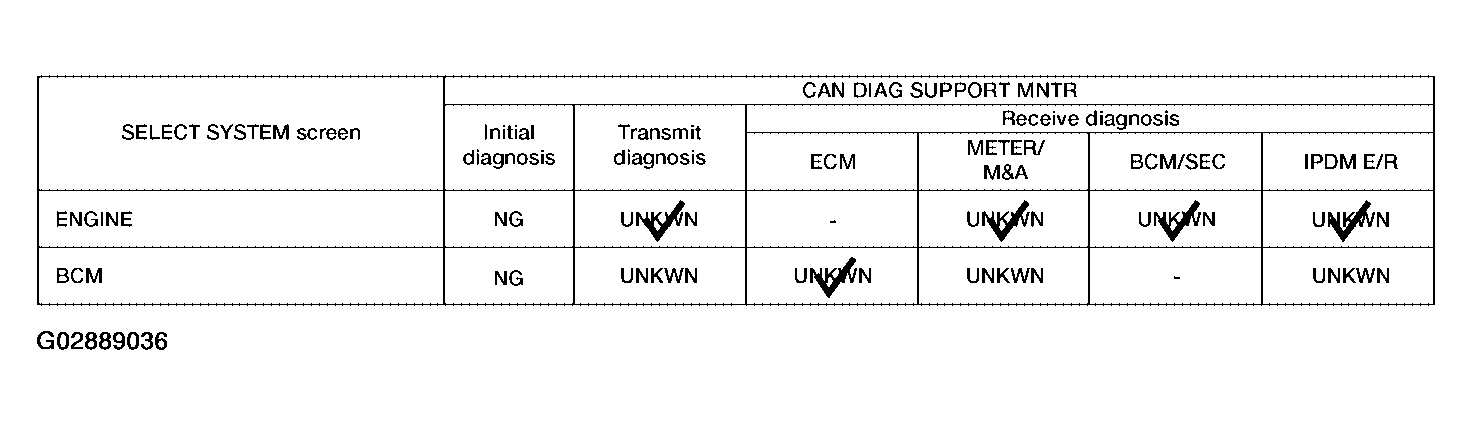

Fig 6: Check Sheet Results Case 4

G02889036

Courtesy of NISSAN MOTOR CO., U.S.A.

Case 5

Check combination meter circuit. Refer to "COMBINATION METER CIRCUIT CHECK ".

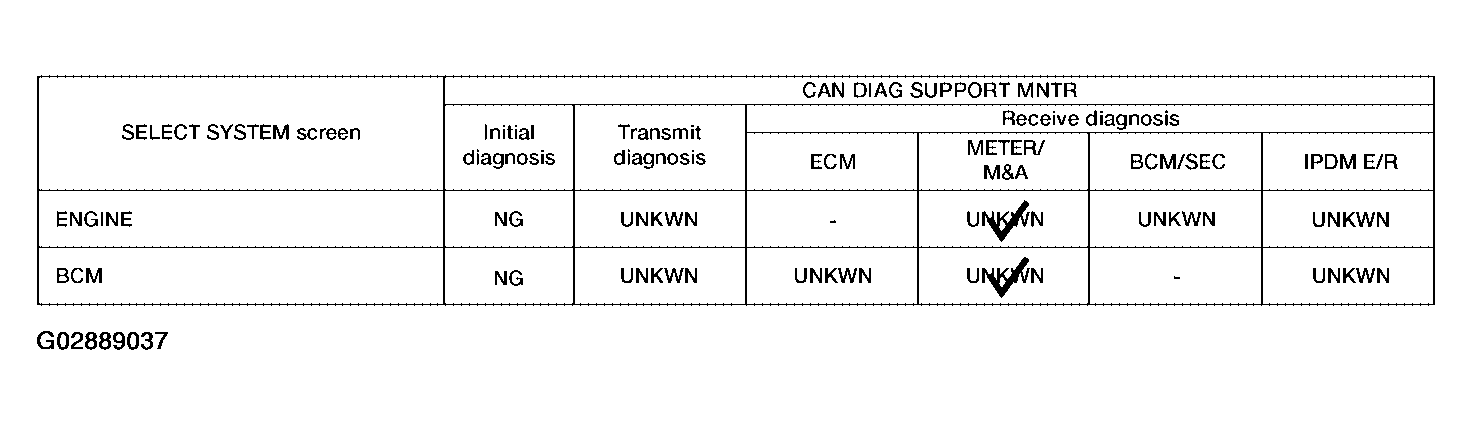

Fig 7: Check Sheet Results Case 5

G02889037

Courtesy of NISSAN MOTOR CO., U.S.A.

Case 6

Check BCM circuit. Refer to "BCM CIRCUIT CHECK ".

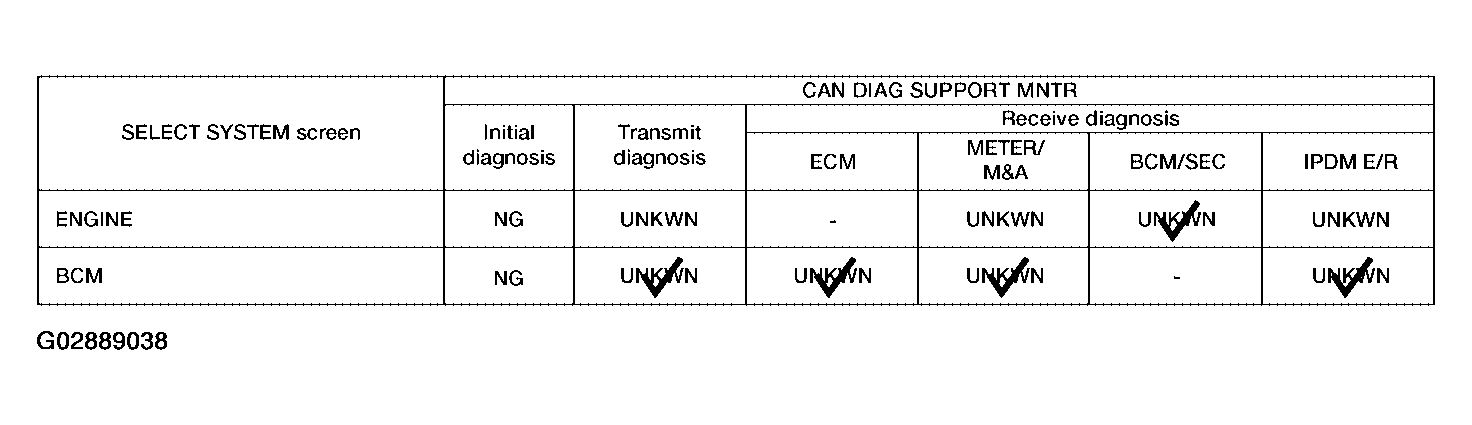

Fig 8: Check Sheet Results Case 6

G02889038

Courtesy of NISSAN MOTOR CO., U.S.A.

Case 7

Check IPDM E/R circuit. Refer to "IPDM E/R CIRCUIT CHECK ".

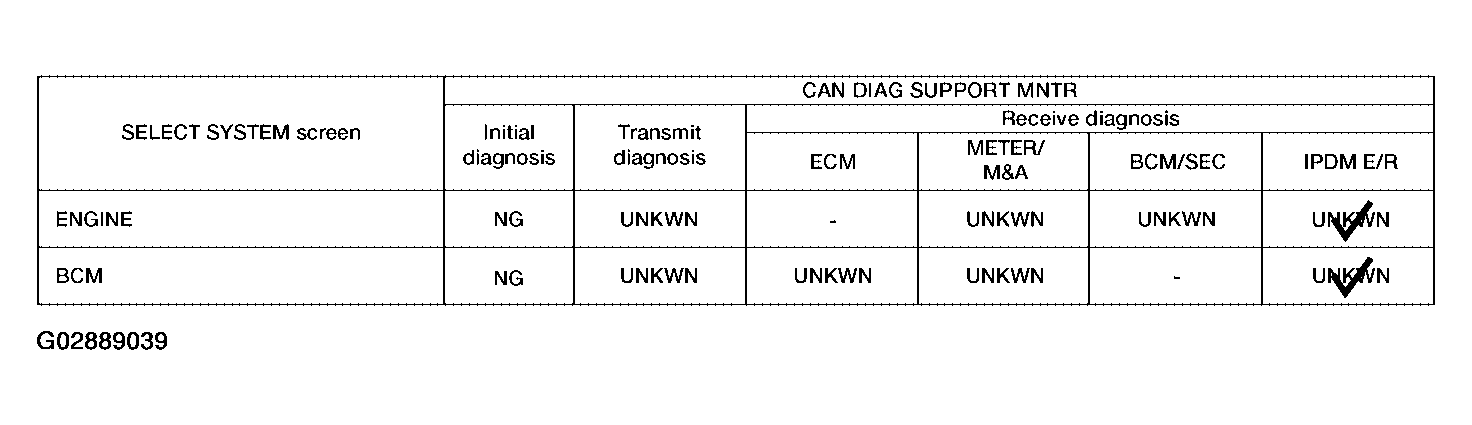

Fig 9: Check Sheet Results Case 7

G02889039

Courtesy of NISSAN MOTOR CO., U.S.A.

Case 8

Check CAN communication circuit. Refer to "CAN COMMUNICATION CIRCUIT CHECK ".

Fig 10: Check Sheet Results Case 8

G02889040

Courtesy of NISSAN MOTOR CO., U.S.A.
