Check Sheet Results (Example)

NOTE: If "NG" is displayed on "INITIAL DIAG (Initial diagnosis)" as "CAN DIAG SUPPORT MNTR" for the diagnosed control unit, replace the control unit.

Case 1

Replace ECM.

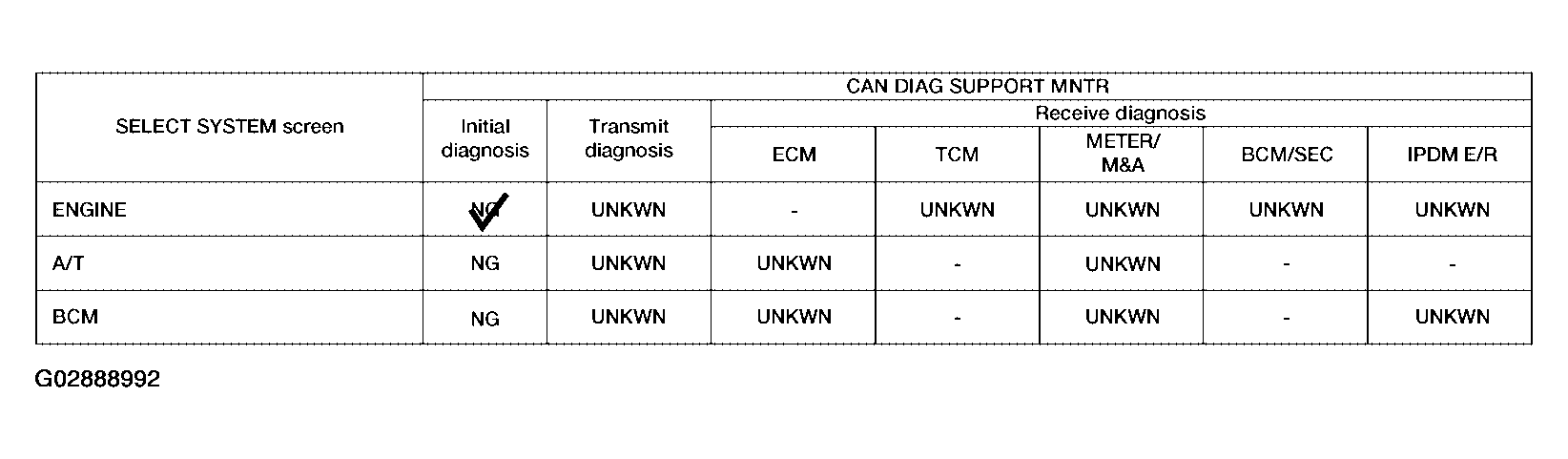

Fig 1: Check Sheet Results Case 1 (1 Of 2)
G02888992Courtesy of NISSAN MOTOR CO., U.S.A.

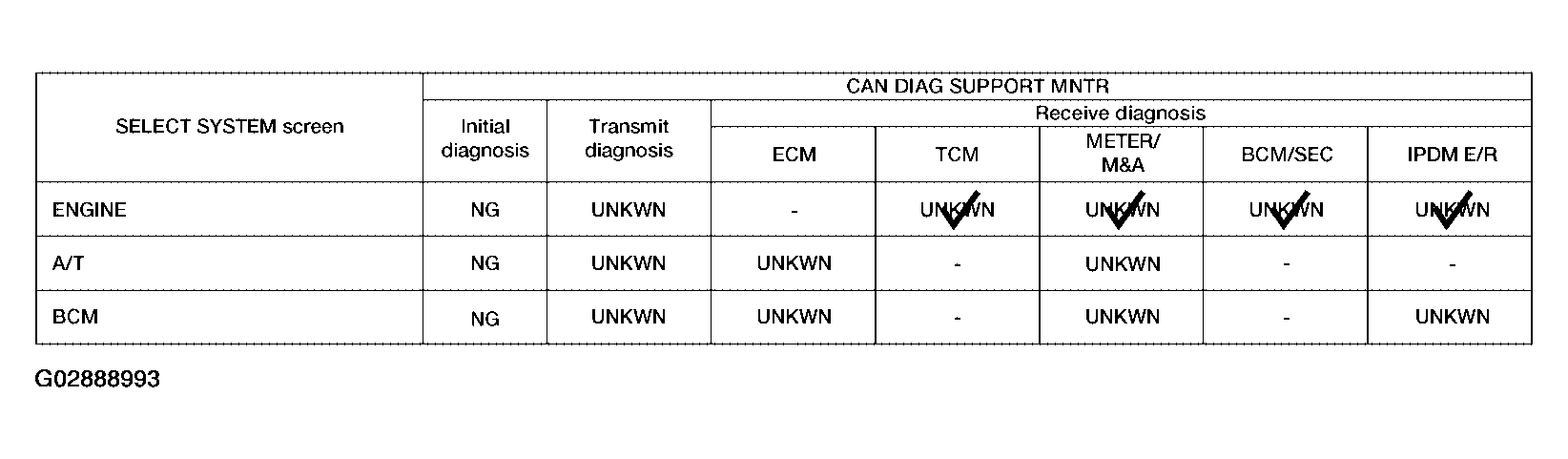

Fig 2: Check Sheet Results Case 1 (2 Of 2)
G02888993Courtesy of NISSAN MOTOR CO., U.S.A.

Case 2

Replace TCM.

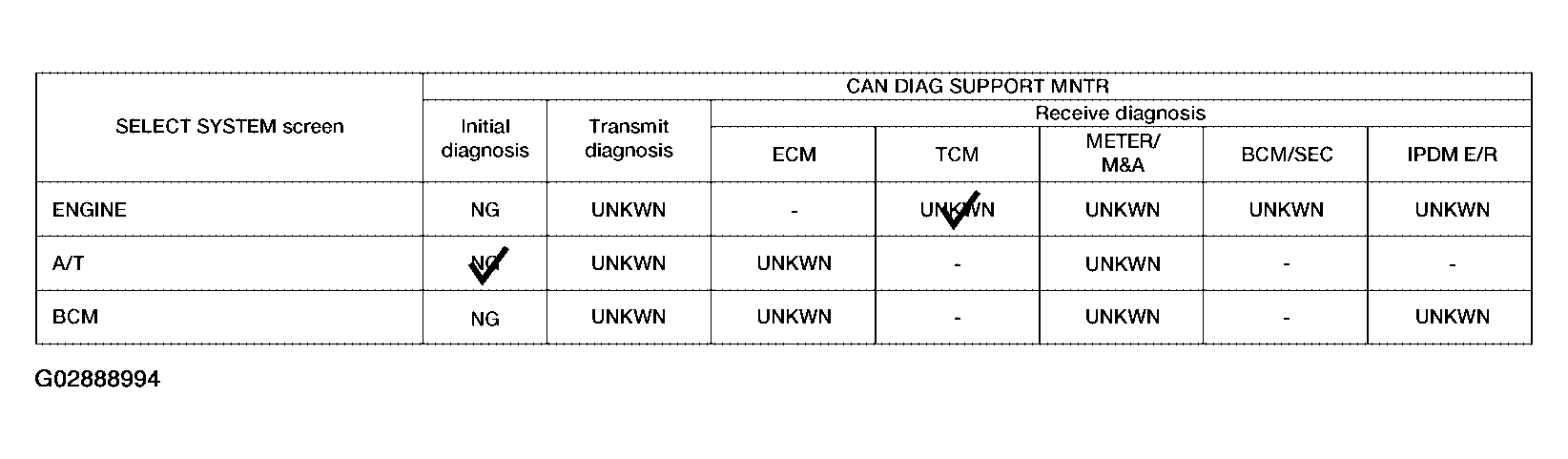

Fig 3: Check Sheet Results Case 2
G02888994Courtesy of NISSAN MOTOR CO., U.S.A.

Case 3

Replace BCM.

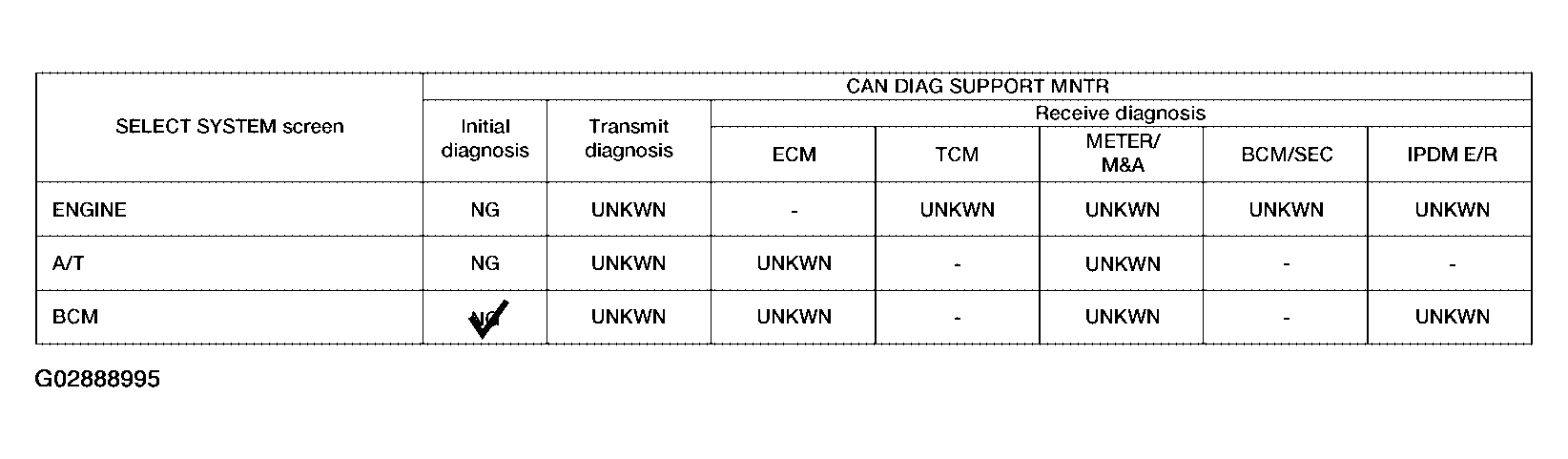

Fig 4: Check Sheet Results Case 3 (1 Of 2)
G02888995Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 5: Check Sheet Results Case 3 (2 Of 2)
G02888996Courtesy of NISSAN MOTOR CO., U.S.A.

Case 4

Check harness between TCM and combination meter. Refer to "CIRCUIT CHECK BETWEEN TCM AND COMBINATION METER ".

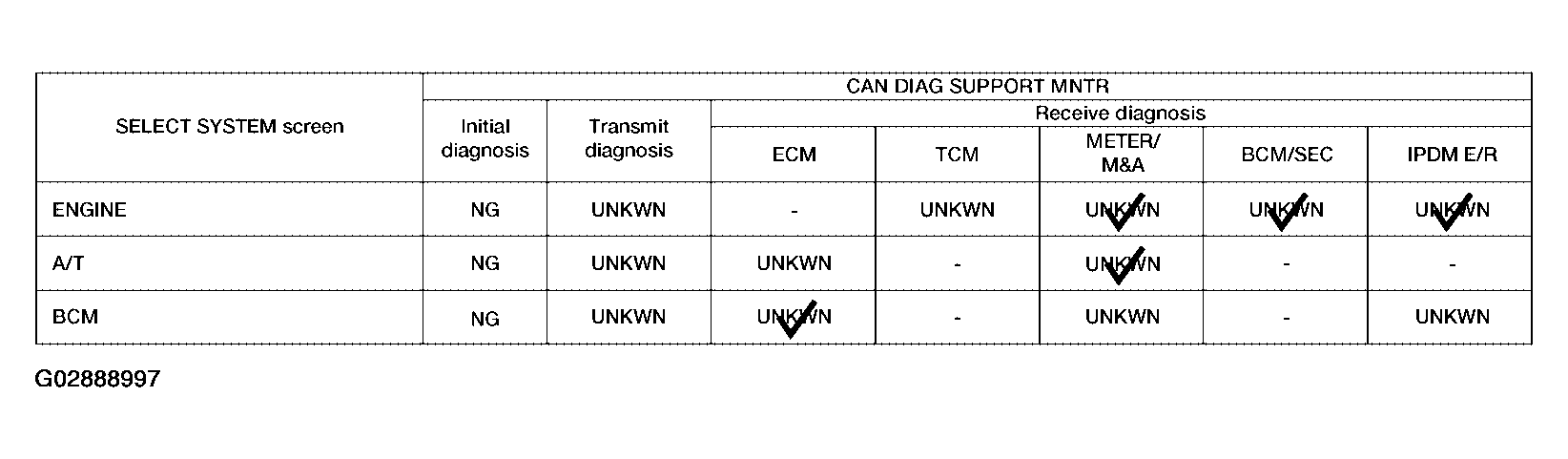

Fig 6: Check Sheet Results Case 4
G02888997Courtesy of NISSAN MOTOR CO., U.S.A.

Case 5

Check harness between combination meter and BCM. Refer to "CIRCUIT CHECK BETWEEN COMBINATION METER AND BCM ".

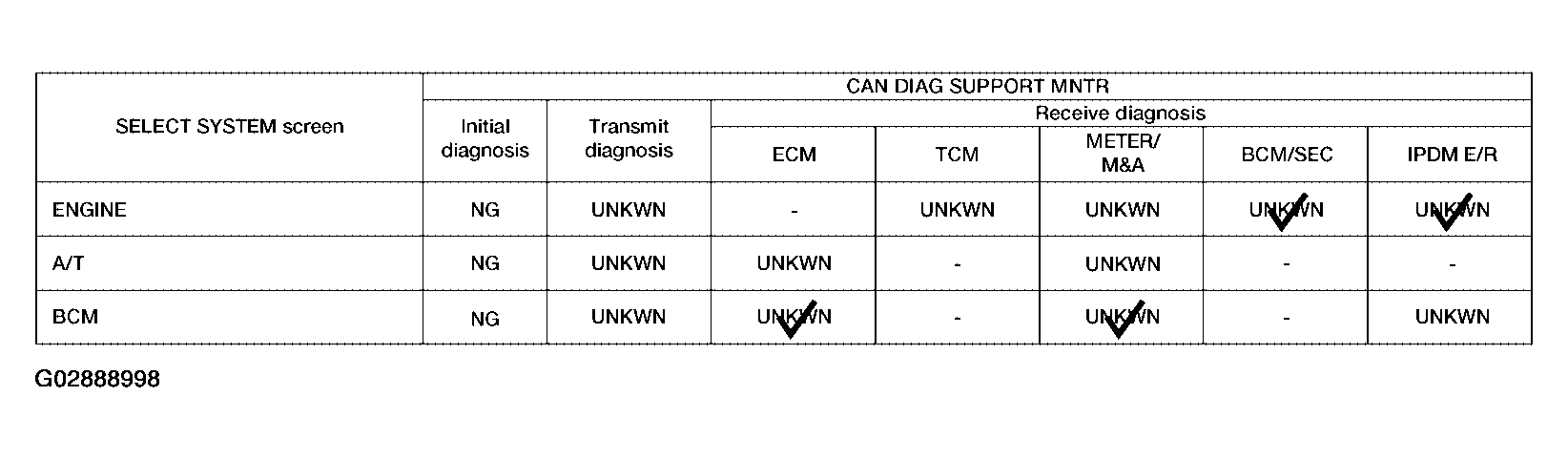

Fig 7: Check Sheet Results Case 5
G02888998Courtesy of NISSAN MOTOR CO., U.S.A.

Case 6

Check ECM circuit. Refer to "ECM CIRCUIT CHECK ".

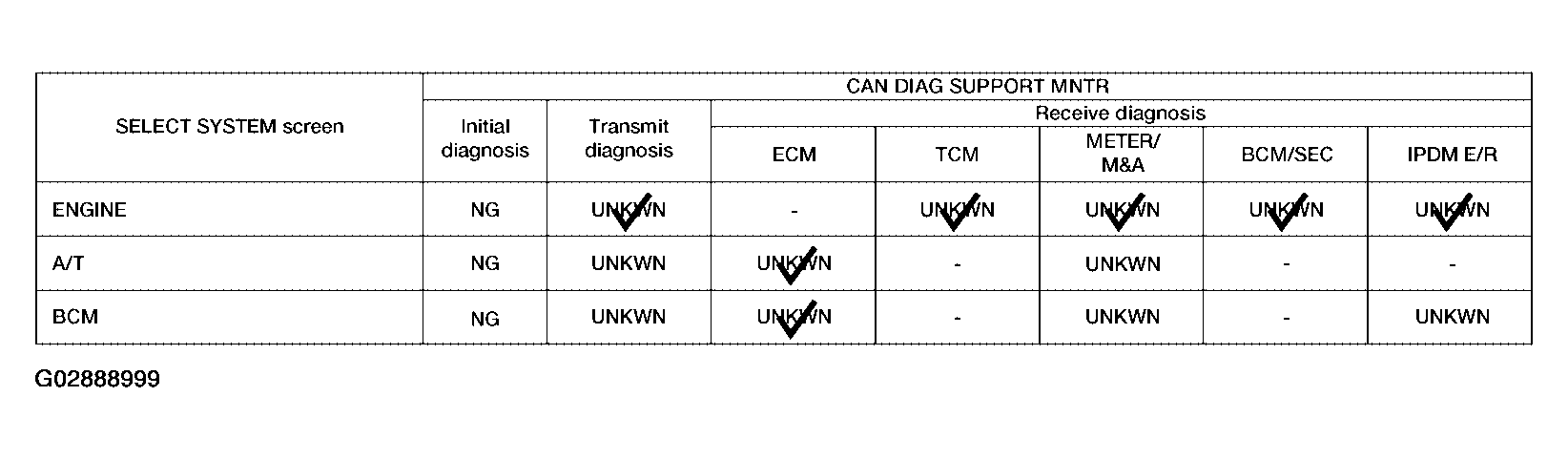

Fig 8: Check Sheet Results Case 6
G02888999Courtesy of NISSAN MOTOR CO., U.S.A.

Case 7

Check TCM circuit. Refer to "TCM CIRCUIT CHECK ".

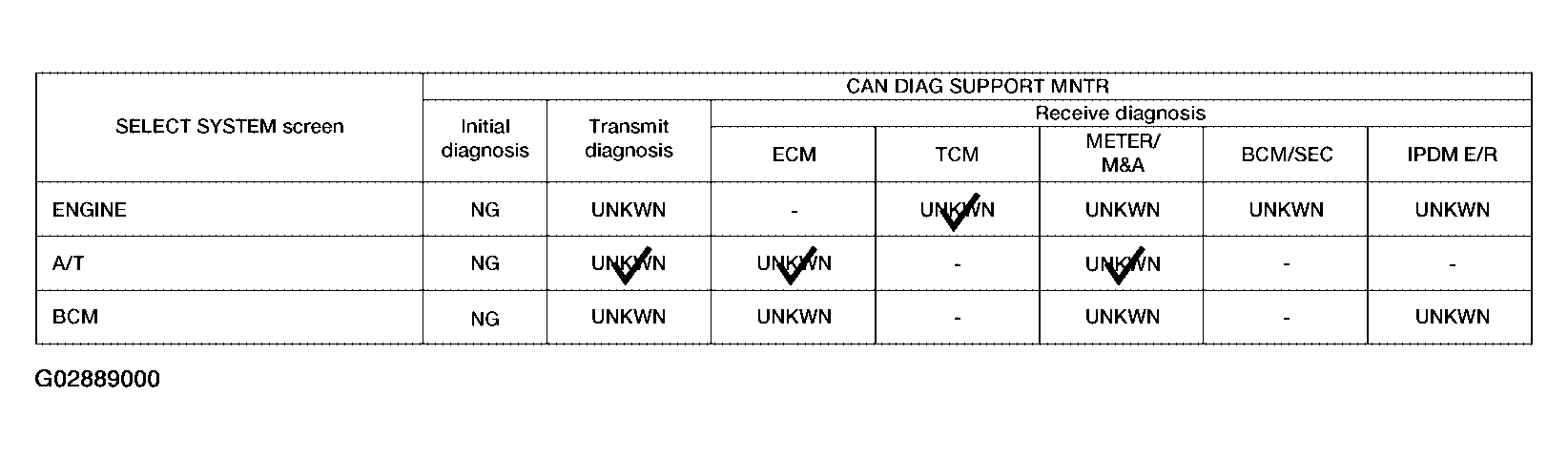

Fig 9: Check Sheet Results Case 7
G02889000Courtesy of NISSAN MOTOR CO., U.S.A.

Case 8

Check combination meter circuit. Refer to "COMBINATION METER CIRCUIT CHECK ".

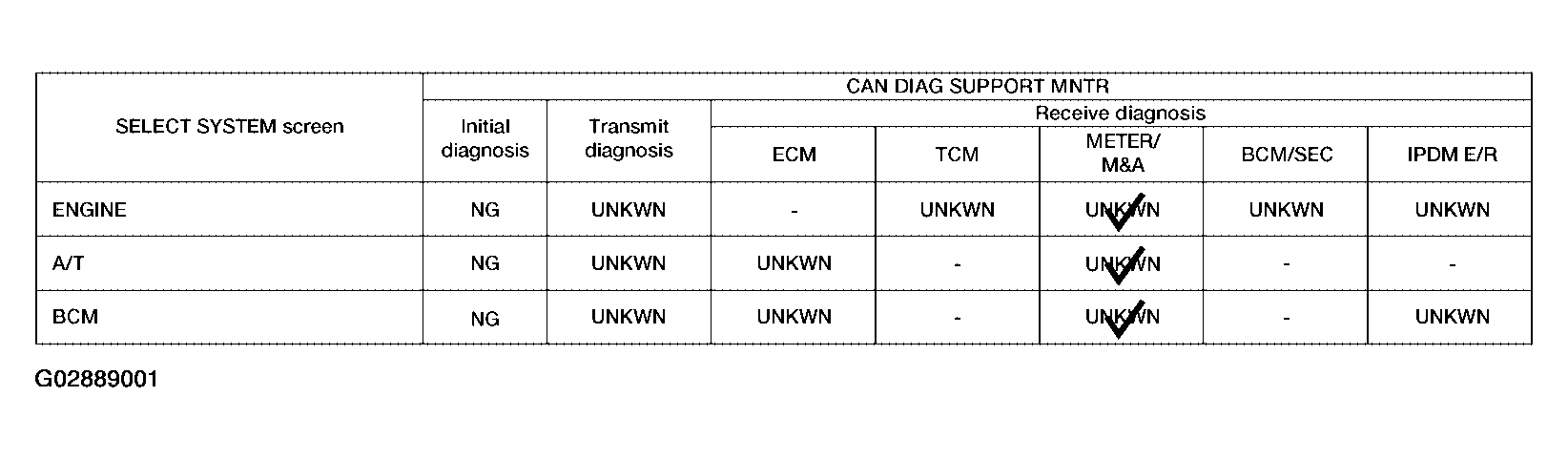

Fig 10: Check Sheet Results Case 8
G02889001Courtesy of NISSAN MOTOR CO., U.S.A.

Case 9

Check BCM circuit. Refer to "BCM CIRCUIT CHECK ".

Fig 11: Check Sheet Results Case 9
G02889002Courtesy of NISSAN MOTOR CO., U.S.A.

Case 10

Check IPDM E/R circuit. Refer to "IPDM E/R CIRCUIT CHECK ".

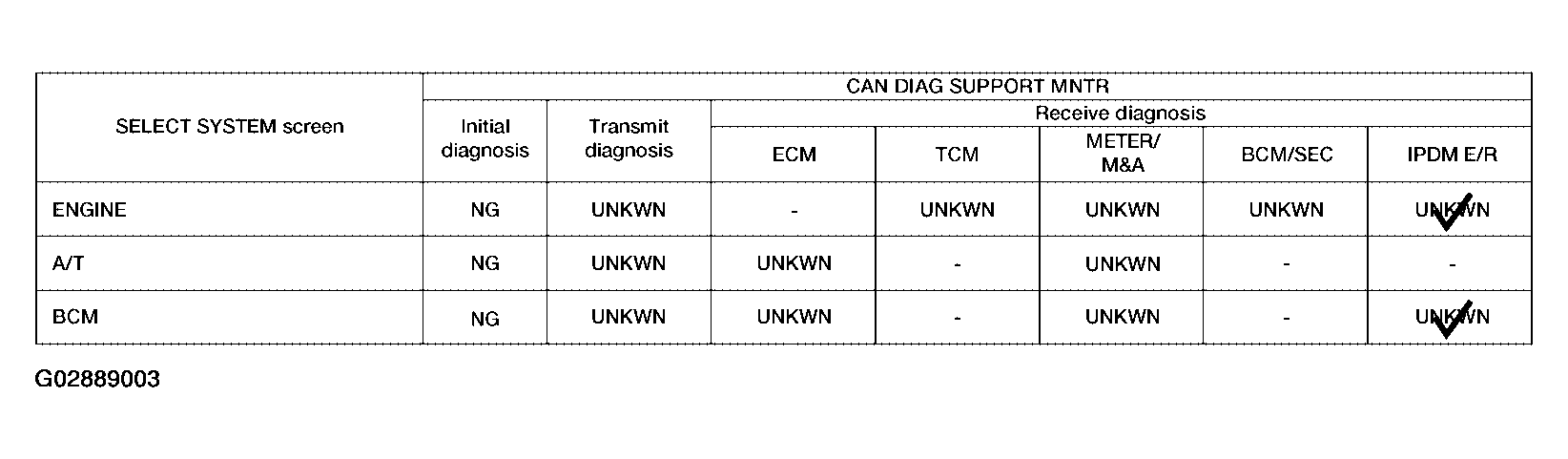

Fig 12: Check Sheet Results Case 10
G02889003Courtesy of NISSAN MOTOR CO., U.S.A.

Case 11

Check CAN communication circuit. Refer to "CAN COMMUNICATION CIRCUIT CHECK ".

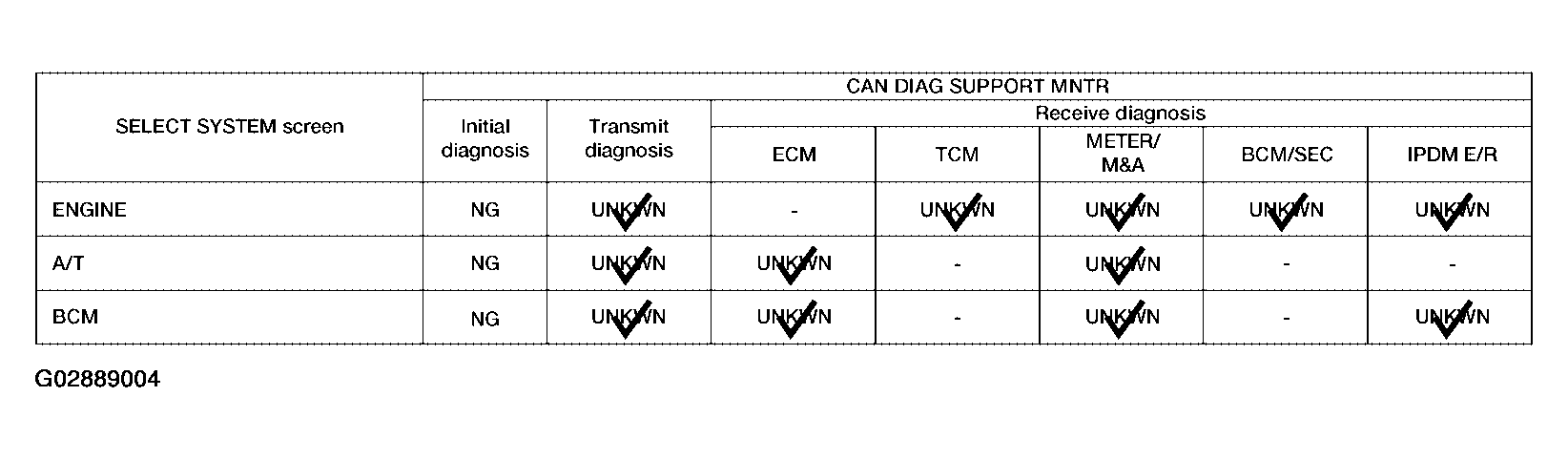

Fig 13: Check Sheet Results Case 11
G02889004Courtesy of NISSAN MOTOR CO., U.S.A.

Case 12

Check IPDM E/R ignition relay circuit. Refer to "IPDM E/R IGNITION RELAY CIRCUIT CHECK ".

Fig 14: Check Sheet Results Case 12
G02889005Courtesy of NISSAN MOTOR CO., U.S.A.

Case 13

Check IPDM E/R. Refer to "IPDM E/R CHECK ".

Fig 15: Check Sheet Results Case 13
G02889006Courtesy of NISSAN MOTOR CO., U.S.A.
