Replacement Operations: HOODLEDGE

Work after radiator core support has been removed.

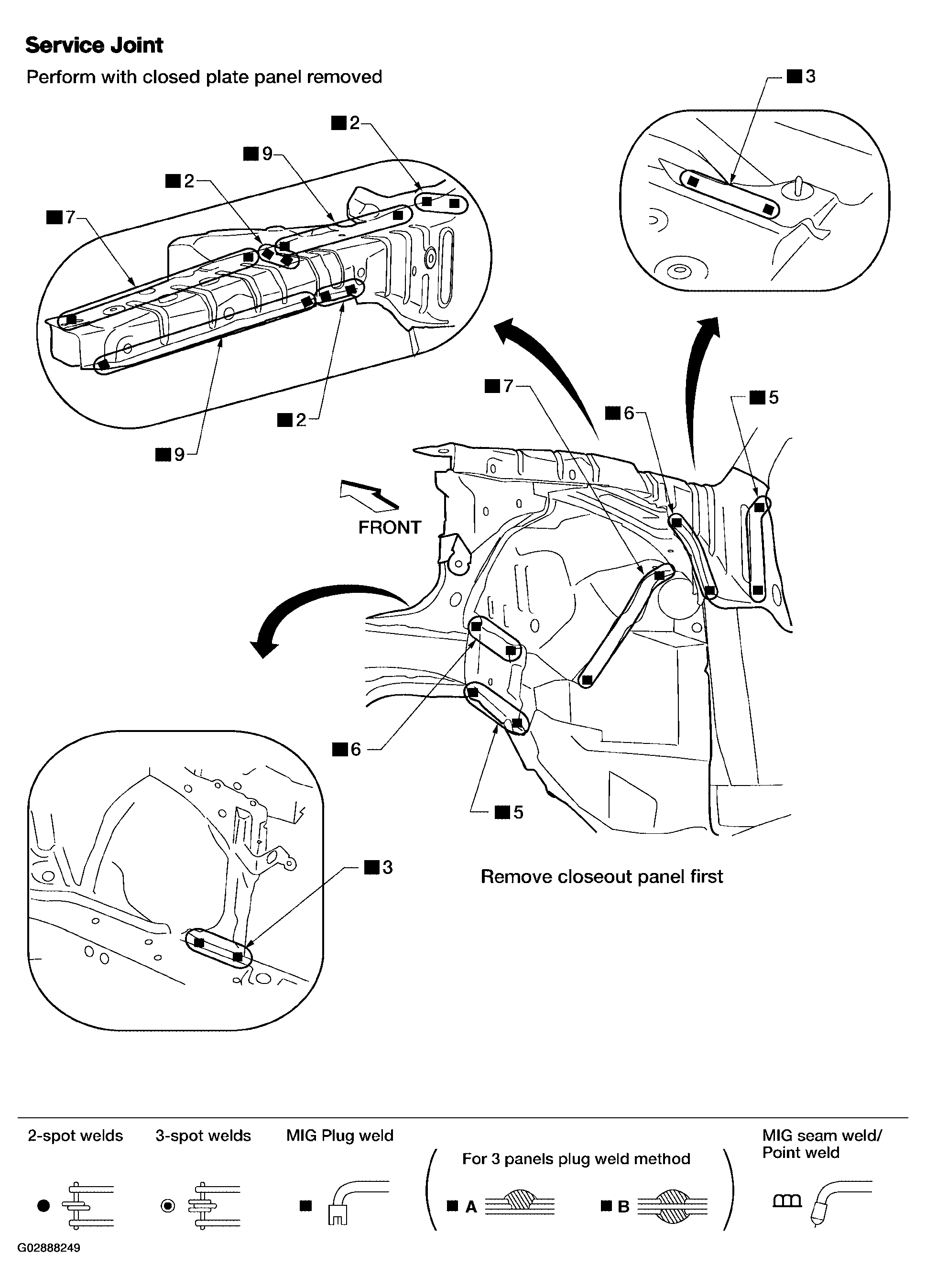

Service Joint

Perform with closed plate panel removed

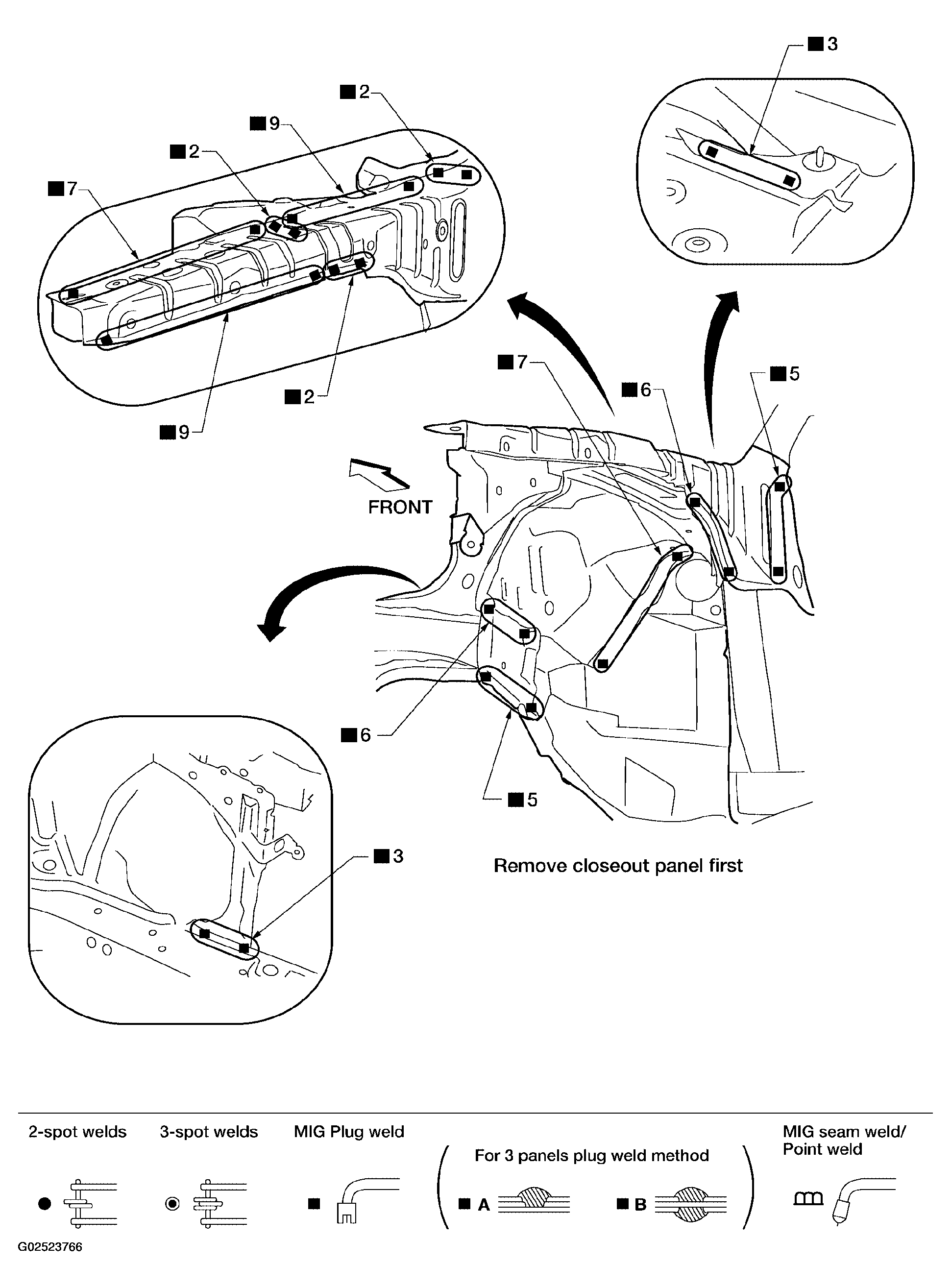

Fig 1: Identifying Hoodledge Service Joints
Courtesy of NISSAN MOTOR CO., U.S.A.
