CONSULT-II Reference Value in Data Monitor Mode: Notes

Specification data are reference values.

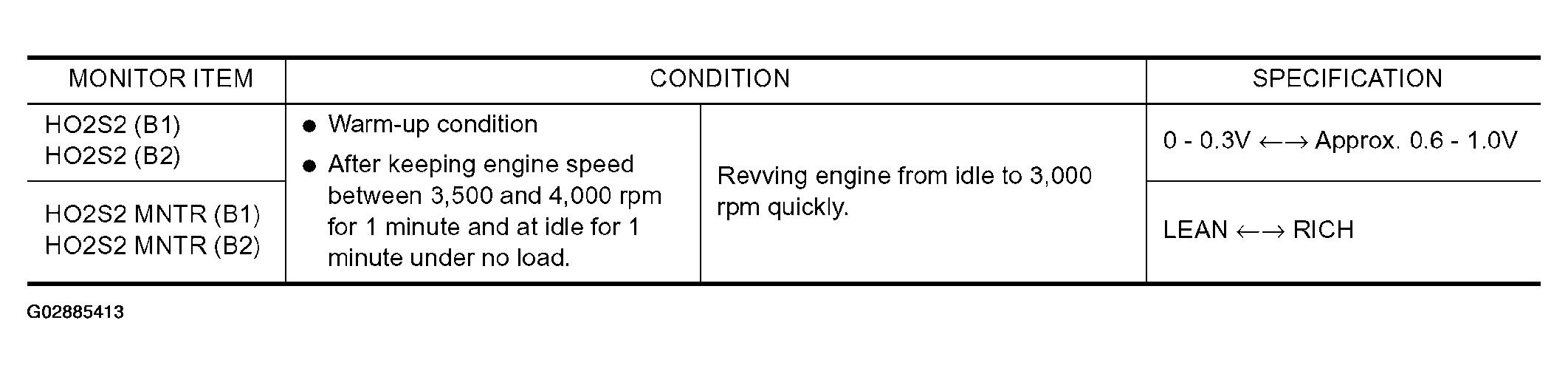

Fig 1: Specification Data Are Reference Values Chart

G02885413

Courtesy of NISSAN MOTOR CO., U.S.A.
