Basic Inspection

1. Check service records for any recent repairs that may indicate a related incident, or a current need for scheduled maintenance.
2. Open engine hood and check the following:
   • Harness connectors for improper connections
   • Wiring harness for improper connections, pinches and cut
   • Vacuum hoses for splits, kinks and improper connections
   • Hoses and ducts for leaks
   • Air cleaner clogging
   • Gasket
     Fig 1: Checking Wiring Harness For Improper Connections, Pinches And Cut

     Courtesy of NISSAN MOTOR CO., U.S.A.
3. Confirm that electrical or mechanical loads are not applied.
   • Headlamp switch is OFF.
   • Air conditioner switch is OFF.
   • Rear window defogger switch is OFF.
   • Steering wheel is in the straight-ahead position, etc.
4. Start engine and warm it up until engine coolant temperature indicator points the middle of gauge.

   Ensure engine stays below 1, 000 RPM.

   Fig 2: Identifying Engine Coolant Temperature Gauge

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. Run engine at about 2, 000 RPM for about 2 minutes under no-load.
6. Make sure that no DTC is displayed with CONSULT-II or GST.

OK or NG

1. OK : GO TO  3.
2. NG : GO TO 2.
   Fig 3: Identifying Engine RPM Gauge

   Courtesy of NISSAN MOTOR CO., U.S.A.

Repair or replace components as necessary according to corresponding Diagnostic Procedure.

1. : GO TO 3.

With CONSULT-II

1. Run engine at about 2, 000 RPM for about 2 minutes under no-load.
2. Rev engine (2, 000 to 3, 000 RPM) two or three times under no-load, then run engine at idle speed for about 1 minute.
   Fig 4: Identifying Engine RPM Gauge

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Read idle speed in "DATA MONITOR" mode with CONSULT-II.

   M/T: 700 +/- 50 RPM

   A/T: 700 +/- 50 RPM (in P or N position)

   Fig 5: Displaying "ENG SPEED" In "DATA MONITOR" Mode

   Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

1. Run engine at about 2, 000 RPM for about 2 minutes under no-load.
2. Rev engine (2, 000 to 3, 000 RPM) two or three times under no-load, then run engine at idle speed for about 1 minute.
3. Check idle speed.

   M/T: 700 +/- 50 RPM

   A/T: 700 +/- 50 RPM (in P or N position)

OK or NG

1. OK : GO TO  9.
2. NG : GO TO 4.

1. Stop engine.
2. Perform "ACCELERATOR PEDAL RELEASED POSITION LEARNING ".

1. : GO TO 5.

Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".

1. : GO TO 6.

Refer to "IDLE AIR VOLUME LEARNING ".

Is the Idle Air volume Learning carried out successfully?

Yes or No

1. CMPLT : GO TO 7.
2. INCMP :
   1. Follow the instruction of Idle Air Volume Learning.
   2. GO TO  4.

With CONSULT-II

1. Start engine and warm it up to normal operating temperature.
2. Read idle speed in "DATA MONITOR" mode with CONSULT-II.

   M/T: 700 +/- 50 RPM

   A/T: 700 +/- 50 RPM (in P or N position)

Without CONSULT-II

1. Start engine and warm it up to normal operating temperature.
2. Check idle speed.

   M/T: 700 +/- 50 RPM

   A/T: 700 +/- 50 RPM (in P or N position)

OK or NG

1. OK : GO TO  10.
2. NG : GO TO 8.

Check the Following.

• Check camshaft position sensor (PHASE) and circuit. Refer to DTC P0340, P0345 CMP SENSOR (PHASE) .
• Check crankshaft position sensor (POS) and circuit. Refer to DTC P0335 CKP SENSOR (POS) .

OK or NG

1. OK : GO TO 9.
2. NG :
   1. Repair or replace.
   2. GO TO  4.

1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but this is a rare case.)
2. Perform initialization of NVIS (NATS) system and registration of all NVIS (NATS) ignition key IDs. Refer to "NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM - NATS) ".

1. : GO TO  4.

1. Run engine at idle.
2. Check ignition timing with a timing light.

   M/T: 15 +/- 5° BTDC

   A/T: 15 +/- 5° BTDC (in P or N position)

OK or NG

1. OK : INSPECTION END
2. NG : GO TO 11.

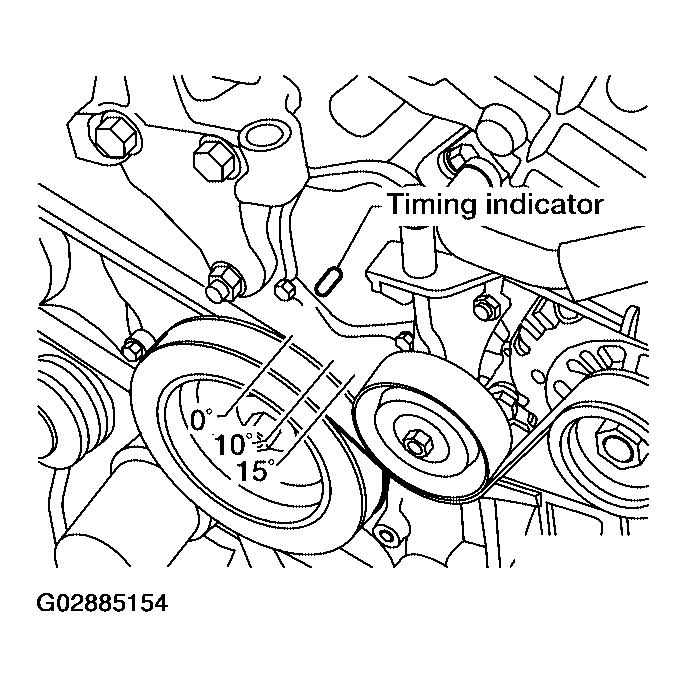

   Fig 6: Checking Ignition Timing

   Courtesy of NISSAN MOTOR CO., U.S.A.

1. Stop engine.
2. Perform "ACCELERATOR PEDAL RELEASED POSITION LEARNING ".

1. : GO TO 12.

Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".

1. : GO TO 13.

Refer to "IDLE AIR VOLUME LEARNING ".

Is the Idle Air volume Learning carried out successfully?

Yes or No

1. Yes : GO TO 14.
2. No :
   1. Follow the instruction of Idle Air Volume Learning.
   2. GO TO  4.

With CONSULT-II

1. Start engine and warm it up to normal operating temperature.
2. Read idle speed in "DATA MONITOR" mode with CONSULT-II.

   M/T: 700 +/- 50 RPM

   A/T: 700 +/- 50 RPM (in P or N position)

Without CONSULT-II

1. Start engine and warm it up to normal operating temperature.
2. Check idle speed.

   M/T: 700 +/- 50 RPM

   A/T: 700 +/- 50 RPM (in P or N position)

OK or NG

1. OK : GO TO 15.
2. NG : GO TO  17.

1. Run engine at idle.
2. Check ignition timing with a timing light.

   M/T: 15 +/- 5° BTDC

   A/T: 15 +/- 5° BTDC (in P or N position)

OK or NG

1. OK : INSPECTION END
2. NG : GO TO 16.
   Fig 7: Checking Ignition Timing

   Courtesy of NISSAN MOTOR CO., U.S.A.

Check timing chain installation. Refer to TIMING CHAIN in Engine Mechanical - 3.5L article.

OK or NG

1. OK : GO TO 17.
2. NG :
   1. Repair the timing chain installation.
   2. GO TO  4.

Check the following.

• Check camshaft position sensor (PHASE) and circuit. Refer to DTC P0340, P0345 CMP SENSOR (PHASE) .
• Check crankshaft position sensor (POS) and circuit. Refer to DTC P0335 CKP SENSOR (POS) .

OK or NG

1. OK : GO TO 18.
2. NG :
   1. Repair or replace.
   2. GO TO  4.

1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but this is a rare case.)
2. Perform initialization of NVIS (NATS) system and registration of all NVIS (NATS) ignition key IDs. Refer to "NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM - NATS) ".

1. : GO TO  4.
