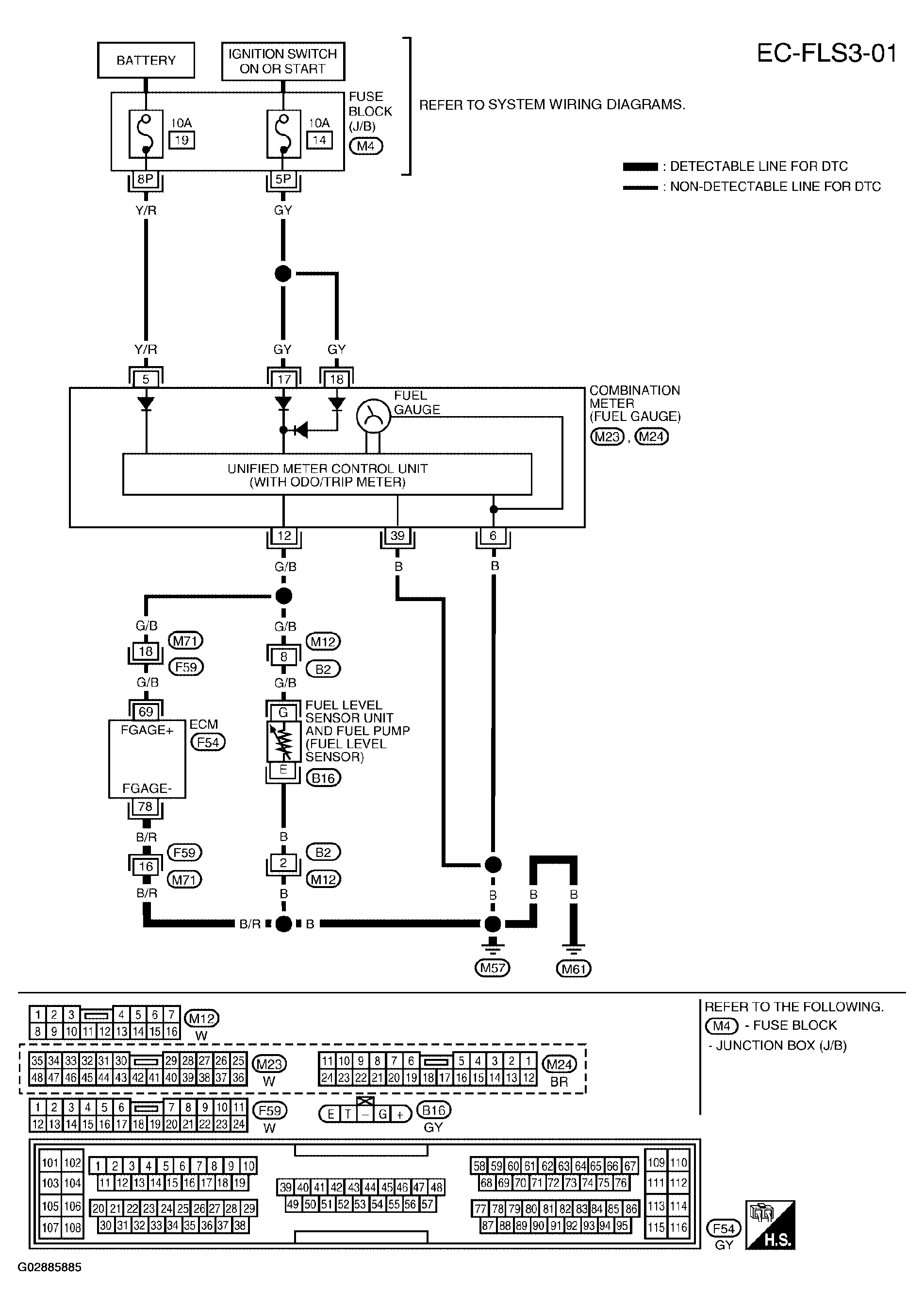

DTC P1464: Fuel Level Sensor: Wiring Diagram
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TERMINAL CONDITION SPECIFICATION
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 69 | G/B | Fuel level sensor | [Ignition switch ON] | Approximately 0 - 4.8V Output voltage varies with fuel level. |
| 78 | B/R | Fuel level sensor ground | [Engine is running] Idle speed | Approximately 0V |
