With Consult-II

  1. Start engine (TCS switch OFF).
  2. Read "VHCL SPEED SE" in "DATA MONITOR" mode with CONSULT-II. The vehicle speed on CONSULT-II should exceed 10 km/h (6 MPH) when rotating wheels with suitable gear position.

    If NG, go to "DIAGNOSTIC PROCEDURE ".

    If OK, go to following step.

  3. Select "DATA MONITOR" mode with CONSULT-II.
  4. Warm engine up to normal operating temperature.
  5. Maintain the following conditions for at least 60 consecutive seconds.
    ENGINE SPEED AND COOLANT TEMPERATURE SPECIFICATION

    ENG SPEED More than 1, 700 RPM (A/T models) More than 1, 800 RPM (M/T models)
    COOLAN TEMP/S More than 70°C (158°F)
    B/FUELSCHDL More than 5.5 msec
    Selector lever Except P or N position
    PW/ST SIGNAL OFF
  6. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

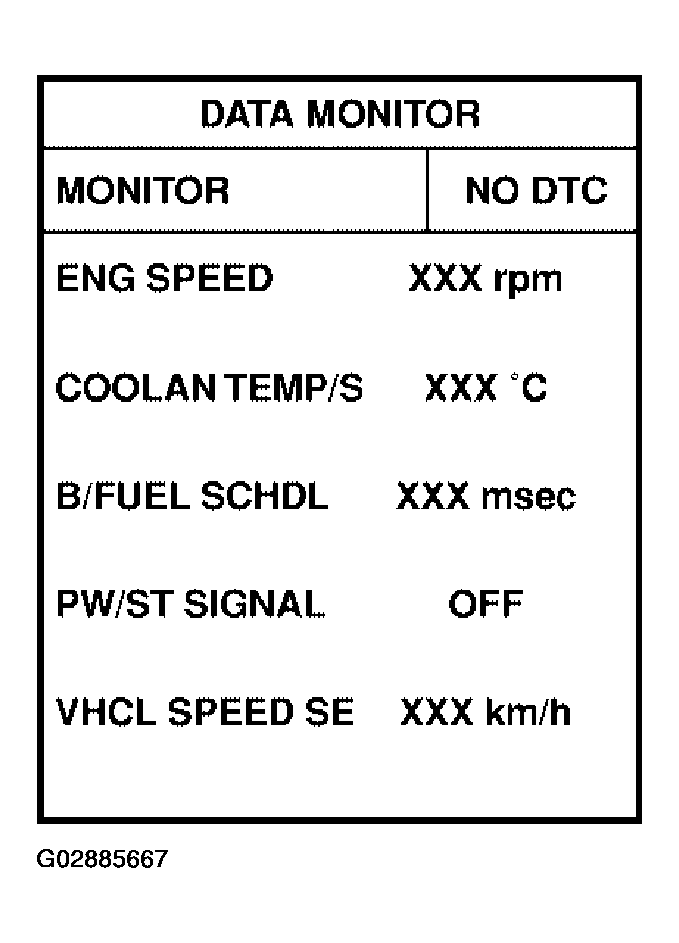

Fig 1: CONSULT-II Diagnosis Function Display
G02885667Courtesy of NISSAN MOTOR CO., U.S.A.
