ASCD Clutch Switch (For M/T Models)

  1. Turn ignition switch OFF.
  2. Disconnect ASCD clutch switch harness connector.
  3. Check harness continuity between ASCD clutch switch terminals 1 and 2 under the following conditions.
    ASCD CLUTCH SWITCH (FOR M/T MODELS) SPECIFICATION

    Condition Continuity
    When clutch pedal is fully released. Should exist.
    When clutch pedal is depressed. Should not exist.

    If NG, adjust ASCD clutch switch installation, refer to "CLUTCH PEDAL ", and perform step 3 again.

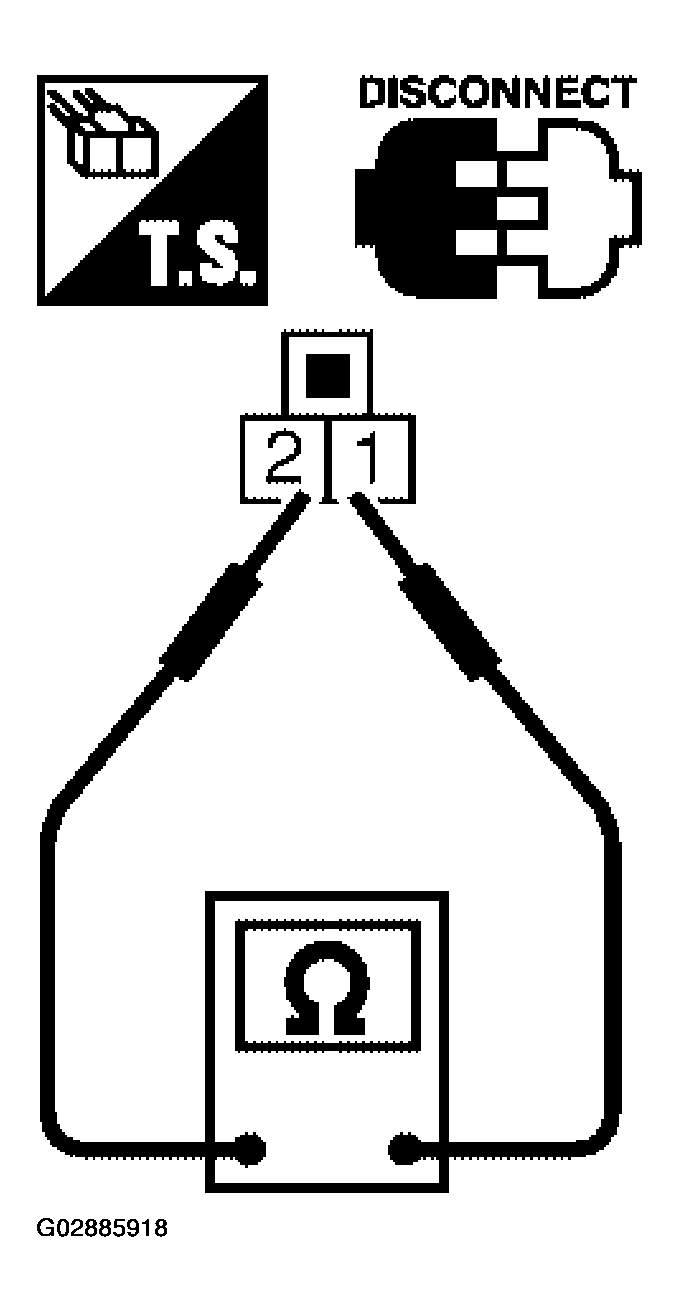

    Fig 1: Checking Harness Continuity Between ASCD Clutch Switch Terminals 1 And 2
    G02885918Courtesy of NISSAN MOTOR CO., U.S.A.
