CONSULT-II Inspection Procedure: Notes

"RETAINED PWR"

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

Turn ignition switch OFF.
Connect CONSULT-II to the data link connector.

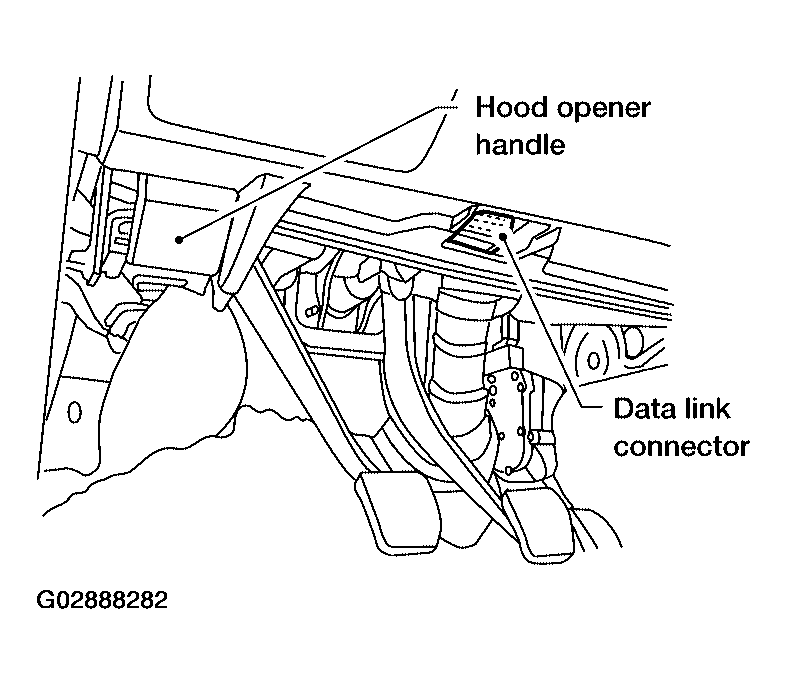

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START (NISSAN BASED VHCL)".

Fig 2: Scan Tool Display "CONSULT-II"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM" on "SELECT SYSTEM" screen.

Fig 3: Scan Tool Display "Select System"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "RETAINED PWR" on "SELECT TEST ITEM" screen.

Fig 4: Scan Tool Display "Select Test Item"
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode.
"ACTIVE TEST" is available for the power window.

Fig 5: Scan Tool Display "Select Diag Mode"
Courtesy of NISSAN MOTOR CO., U.S.A.
