Symptom Chart

NOTE:
  • Always check key fob battery before replacing key fob.
  • The panic alarm operation and trunk lid opener operation of remote keyless entry system do not activate with the ignition key inserted in the ignition key cylinder.
  • Use Remote Keyless Entry Tester J-43241 (follow instructions on tester) to check operation of key fob before replacing key fob.

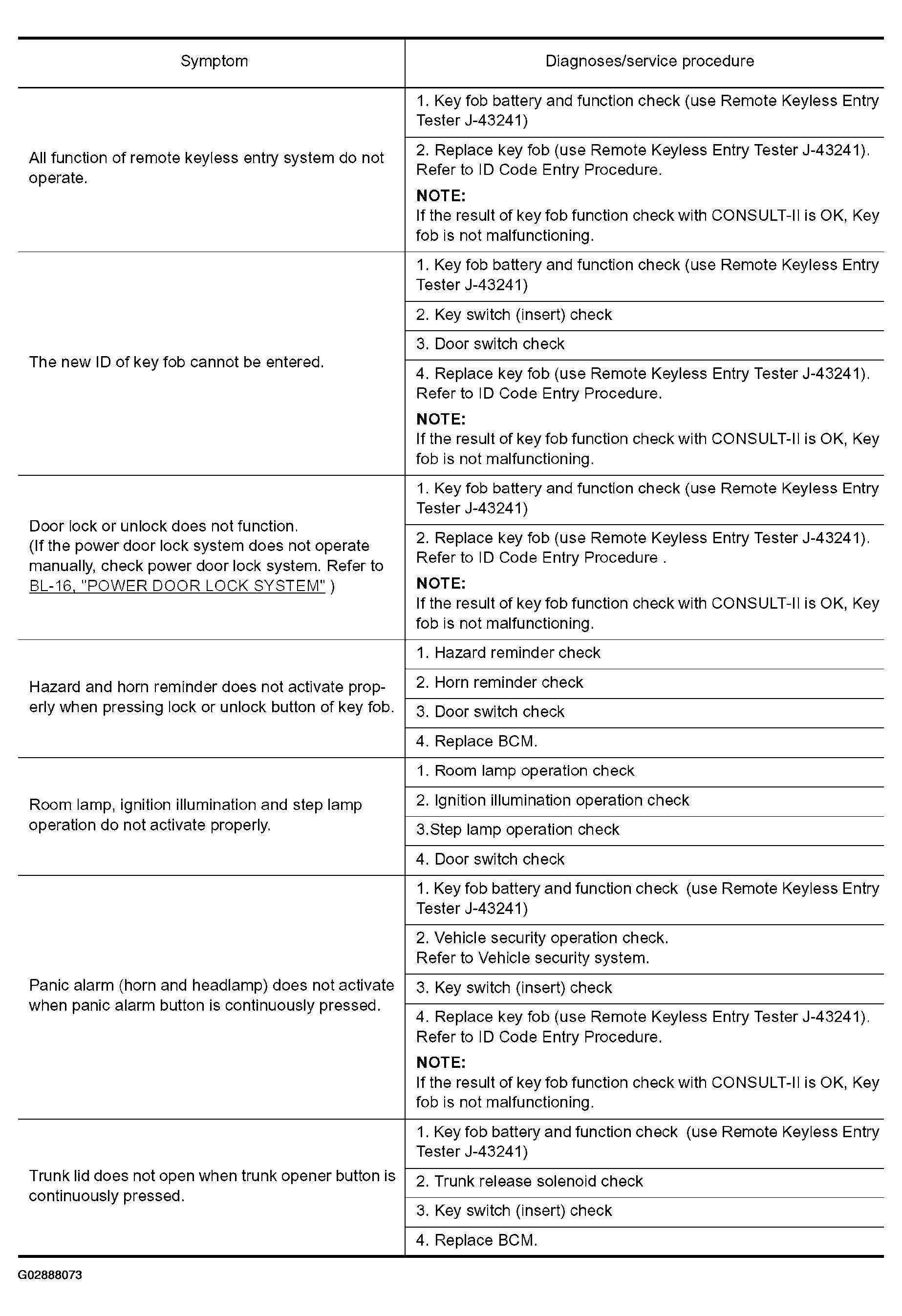

Fig 1: Symptom Chart
G02888073Courtesy of NISSAN MOTOR CO., U.S.A.
