Removal and Installation

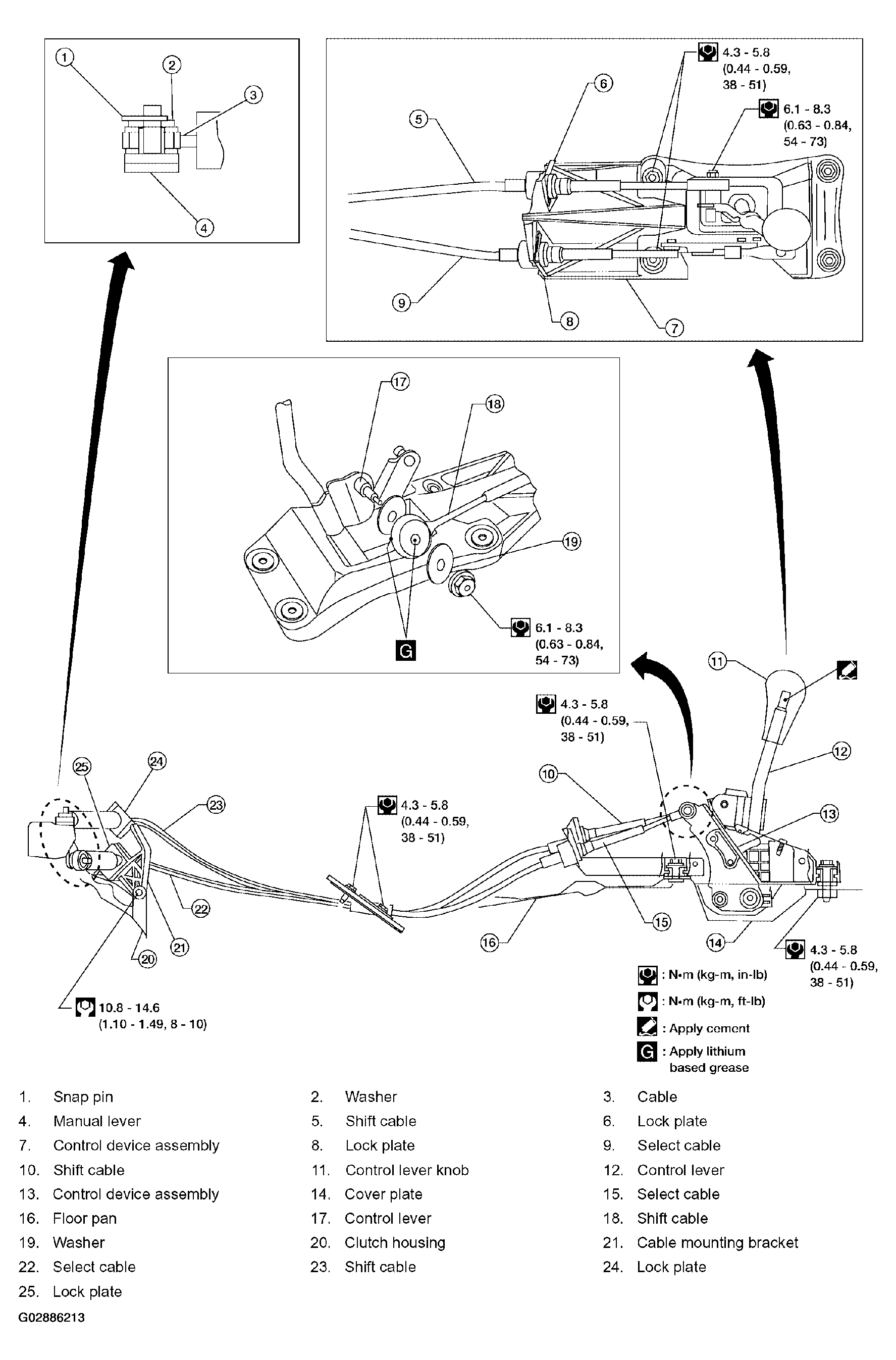

Fig 1: Control Linkage & Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Note that the select side lock plate for securing the control cable is different from the one on the shift side.
After assembly, make sure selector lever automatically returns to Neutral when it is moved to 1st, 2nd, or Reverse.
