Home >> Nissan-Datsun >> 2004 >> Altima Base, Standard >> Repair and Diagnosis >> Transmission >> Clutch >> Operating Cylinder >> Removal and Installation >> Notes

Removal and Installation: Notes

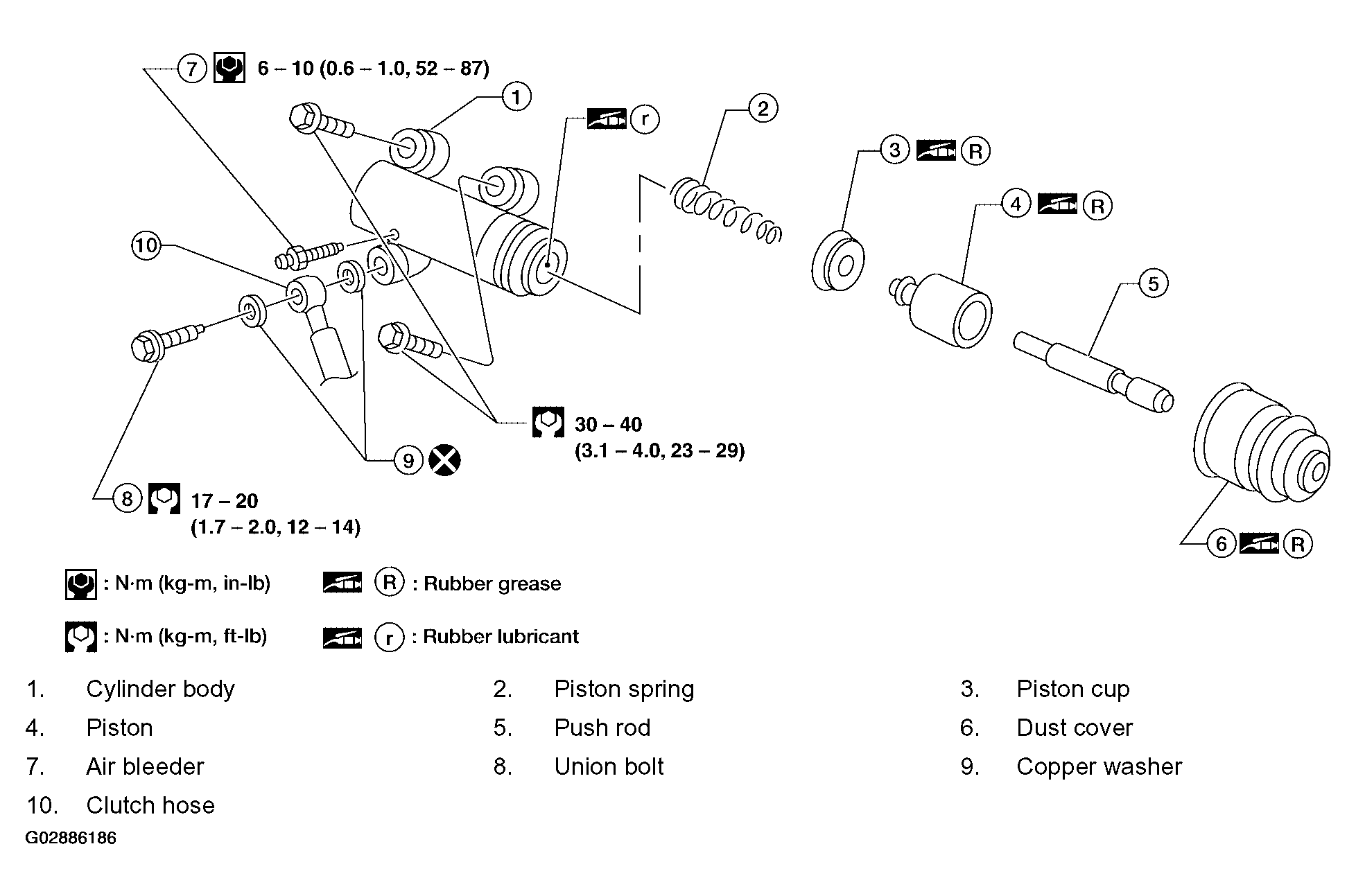

Fig 1: Removing Operating Cylinder & Torque Specifications

G02886186

Courtesy of NISSAN MOTOR CO., U.S.A.
