Control Valve Upper Body: Disassembly

Remove valves at retainer plates.
- Do not use a magnetic pick-up tool.

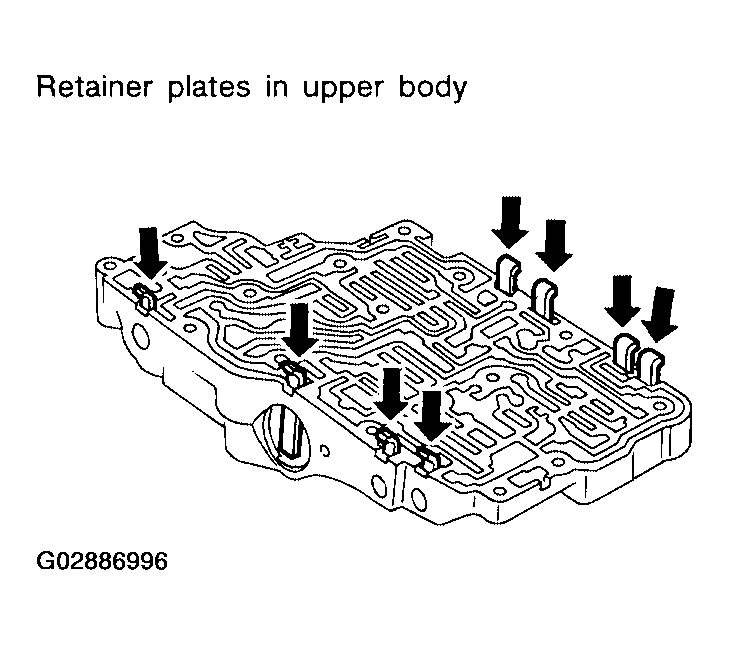

  Fig 1: Removing Valves At Retainer Plate
  Courtesy of NISSAN MOTOR CO., U.S.A.
1. Use a screwdriver to remove retainer plates.

  Fig 2: Removing Retainer Plates
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Remove retainer plates while holding spring, plugs or sleeves.
  - Remove plugs slowly to prevent internal parts from jumping out.

    Fig 3: Removing Retainer Plates Holding Spring, Plugs Or Sleeves
    Courtesy of NISSAN MOTOR CO., U.S.A.
3. Place mating surface of valve body face down, and remove internal parts.

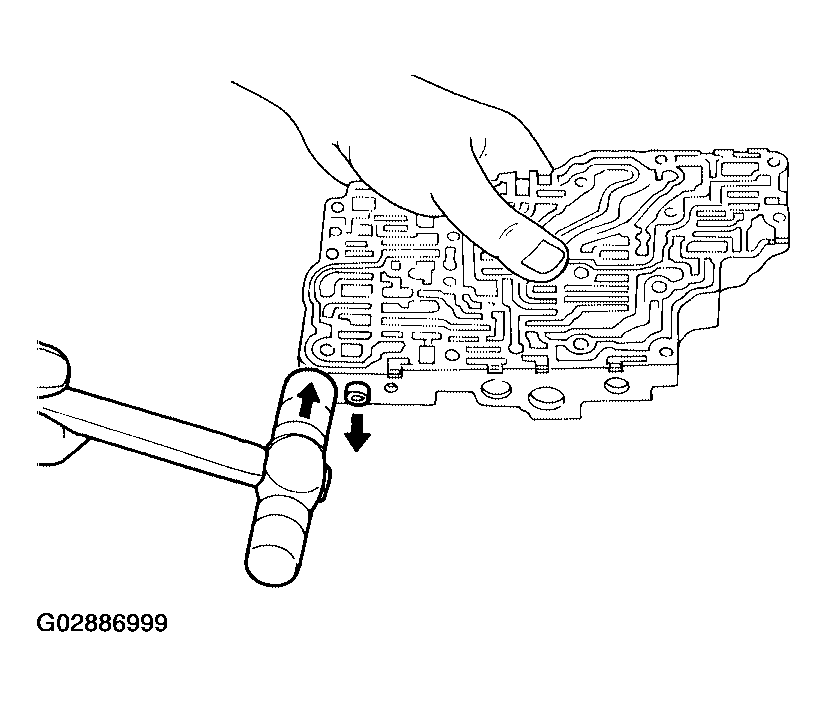

  - If a valve is hard to remove, place valve body face down and lightly tap it with a soft hammer.
  - Be careful not to drop or damage valves and sleeves.

    Fig 4: Removing Control Valve Assembly Internal Components
    Courtesy of NISSAN MOTOR CO., U.S.A.
