D4 Position
D4 Position

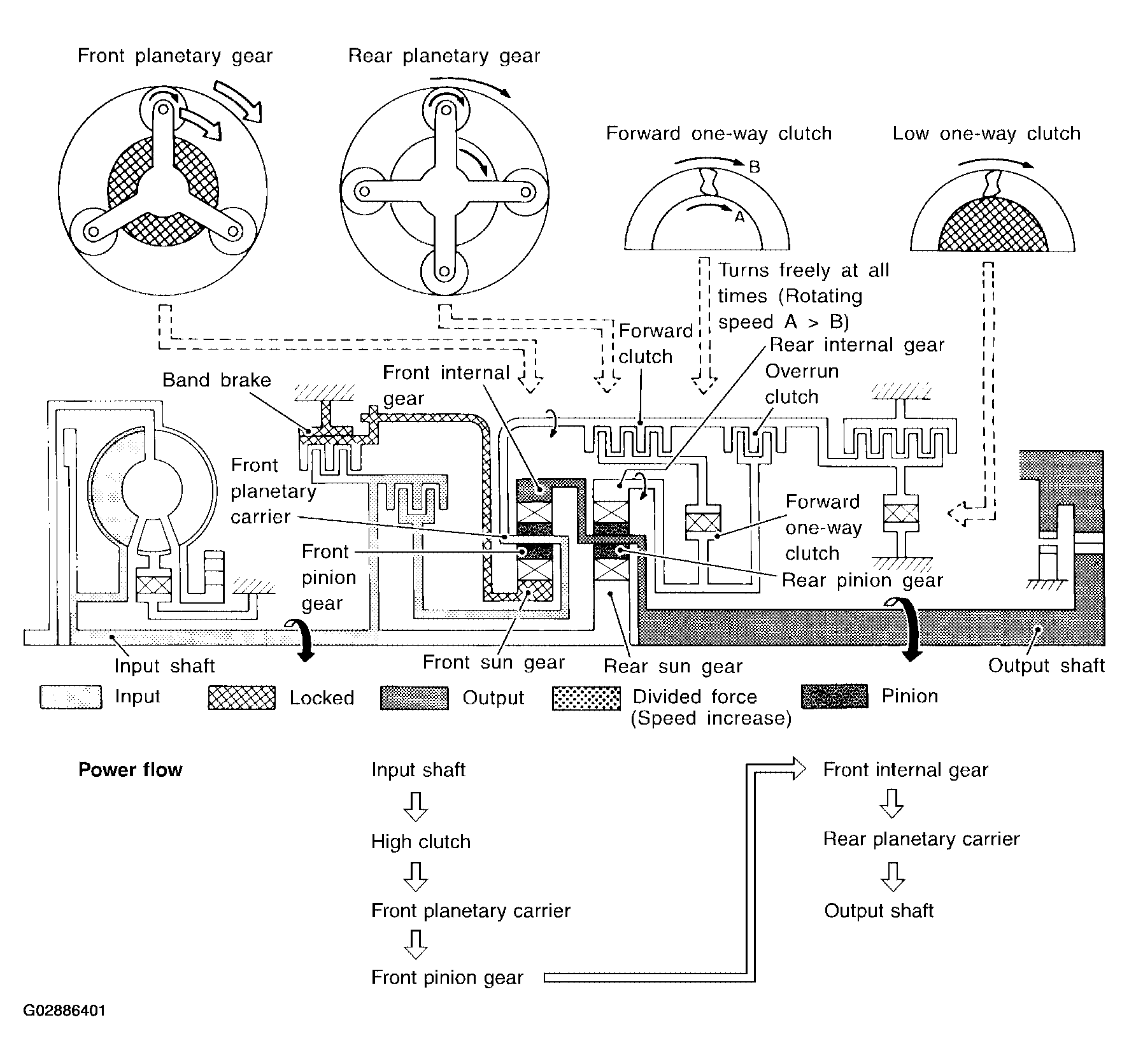

Fig 1: Power Transmission D4 Position
Courtesy of NISSAN MOTOR CO., U.S.A.

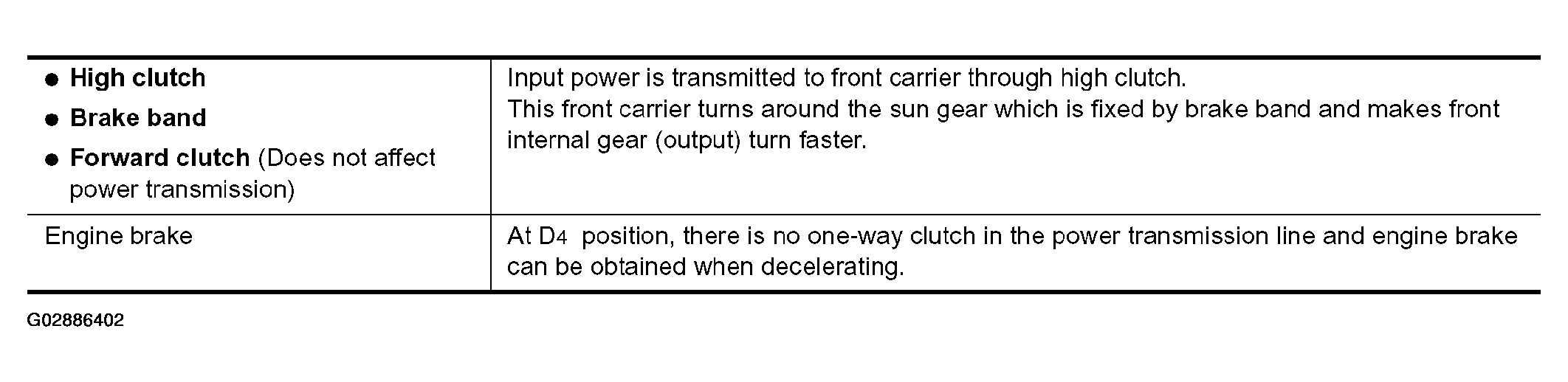

Fig 2: Power Transmission D4 Position Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
