Nissan-Datsun
>>
2004
>>
Altima Base, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transaxle
>>
Overall System
>>
Shift Mechanism
>>
Power Transmission
>>
11 Position
11 Position

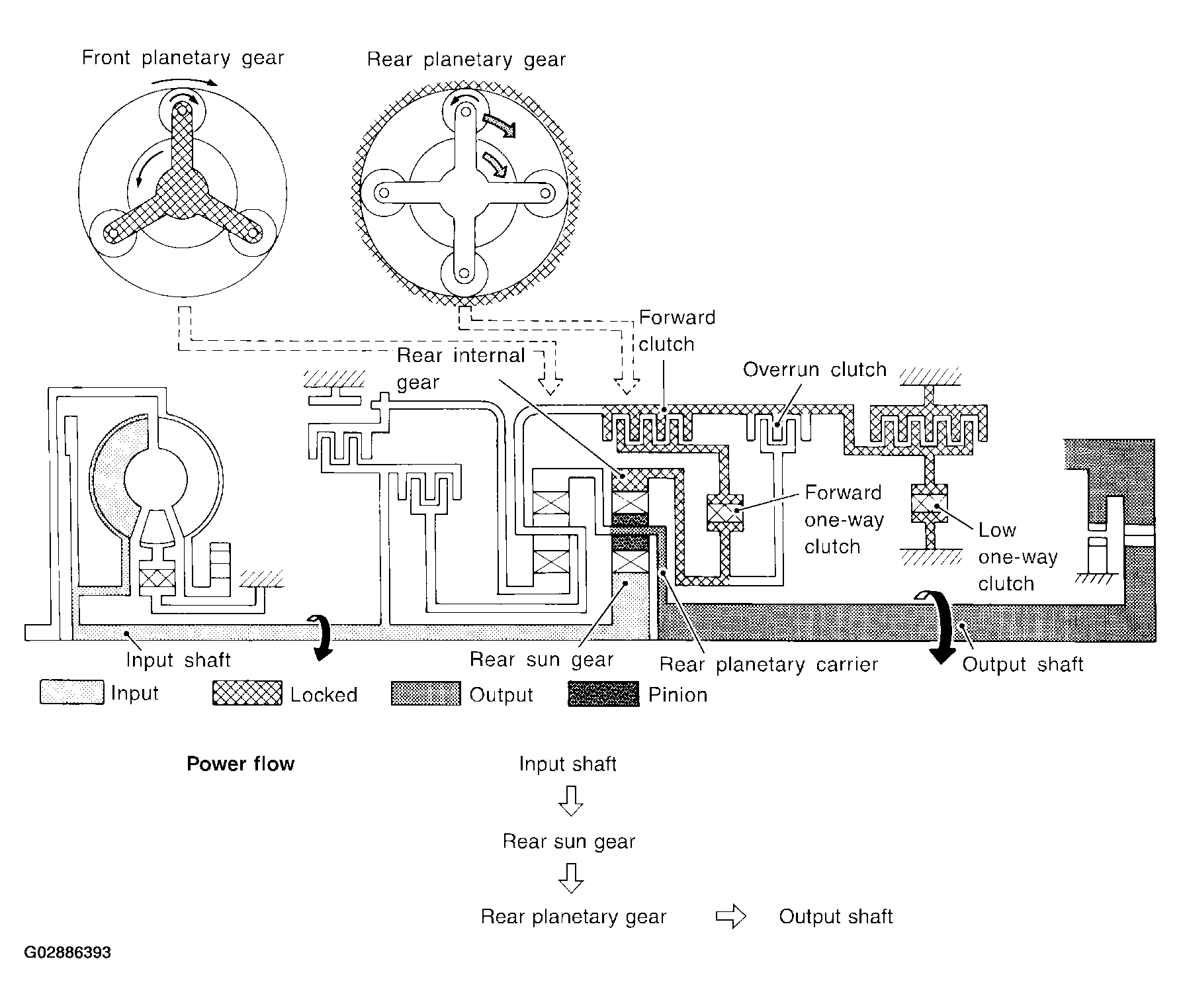

Fig 1: Power Transmission Position
Courtesy of NISSAN MOTOR CO., U.S.A.

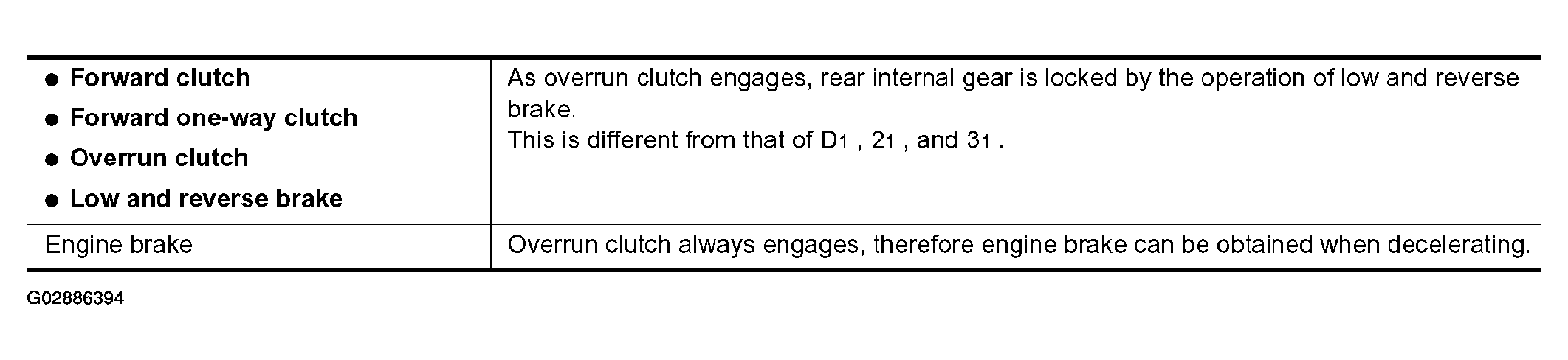

Fig 2: Power Transmission Position Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
