Cross-sectional View
Cross-sectional View

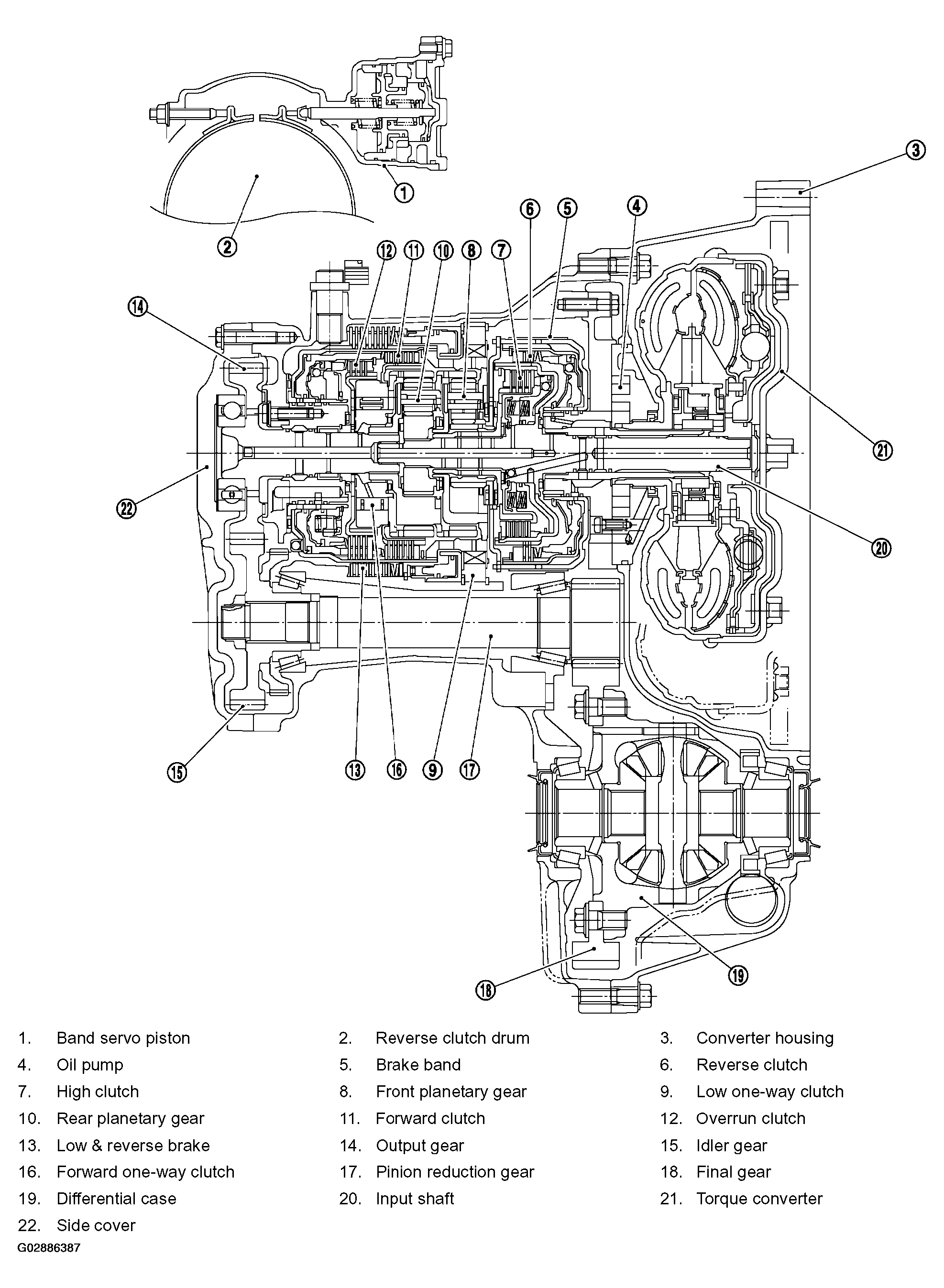

Fig 1: A/T Cross-sectional View
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
