DTC P1705 Throttle Position Sensor [Accelerator Pedal Position (App) Sensor]: Description: Notes

The throttle position sensor [accelerator pedal position (APP) sensor] is part of the system that controls throttle position. This system also uses an electric throttle control actuator, which consists of a throttle control motor and throttle position sensors. Accelerator pedal position signal is sent to the ECM.

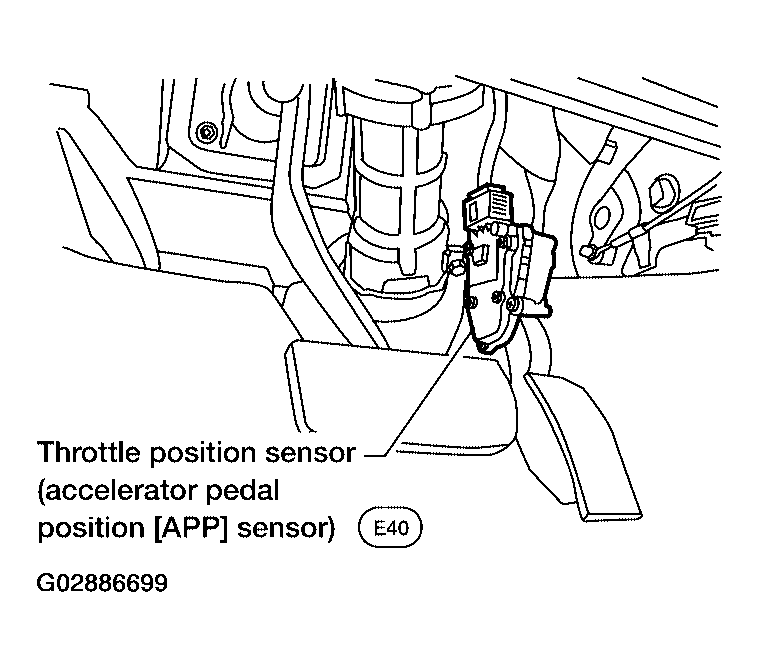

Fig 1: Identifying Throttle Position Sensor
G02886699Courtesy of NISSAN MOTOR CO., U.S.A.
