DTC P0710 A/T Fluid Temperature Sensor Circuit: Description: Notes

The A/T fluid temperature sensor detects the A/T fluid temperature and sends a signal to the TCM.

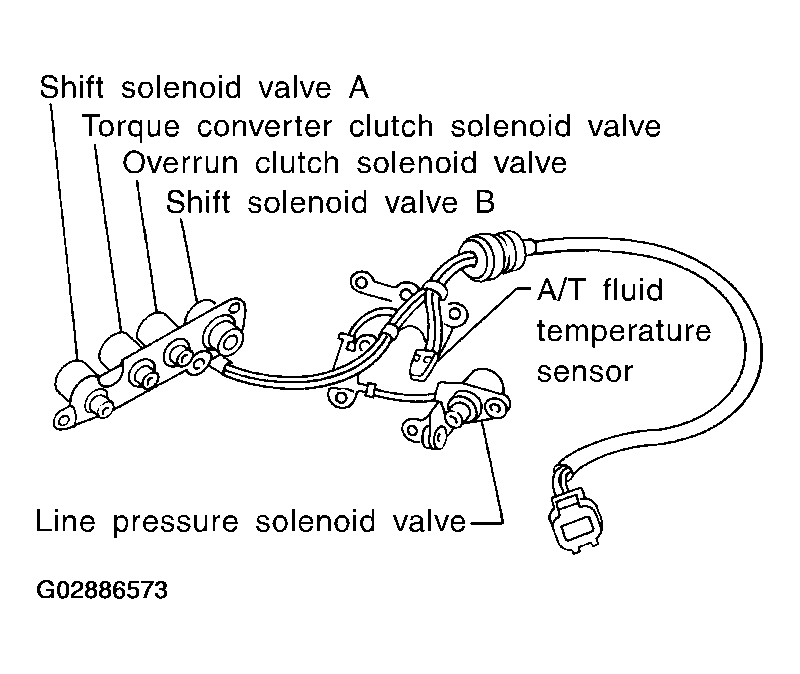

Fig 1: A/T Fluid Temperature Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: A/T Fluid Temperature Sensor Signal Graph

Courtesy of NISSAN MOTOR CO., U.S.A.
