Shift Lock System Electrical Parts Location

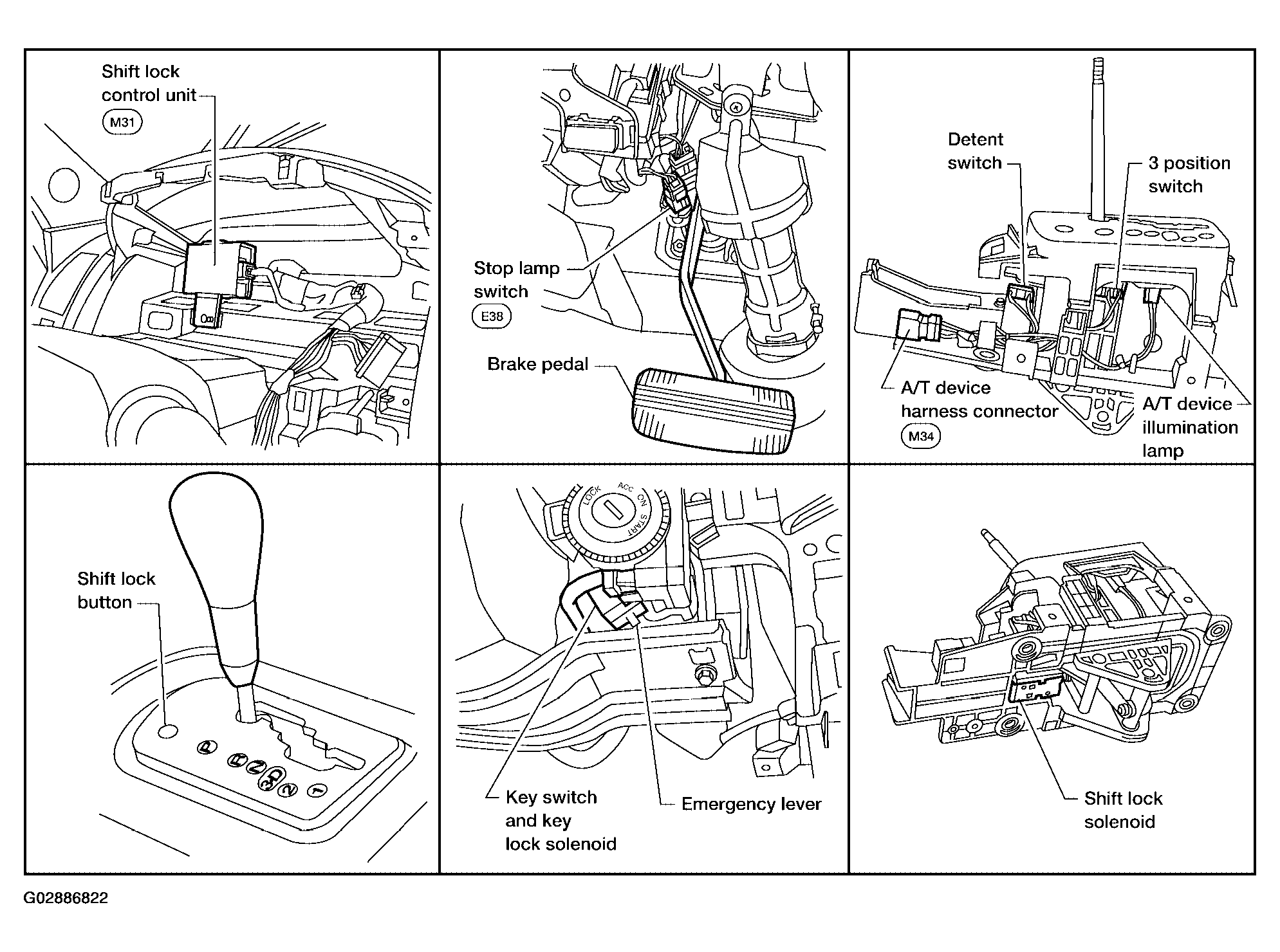

Fig 1: Shift Lock System Electrical Components Position

G02886822

Courtesy of NISSAN MOTOR CO., U.S.A.
