Front Wheel Turning Angle

  1. Set the front wheels in a straight-ahead position. Then move the vehicle forward until the front wheels rest on the turning radius gauge as shown.
  2. Rotate steering wheel all the way right and left; measure the turning angles "A" and "B" as shown.

    Wheel turning angle (full turn): Refer to SPECIFICATIONS  .

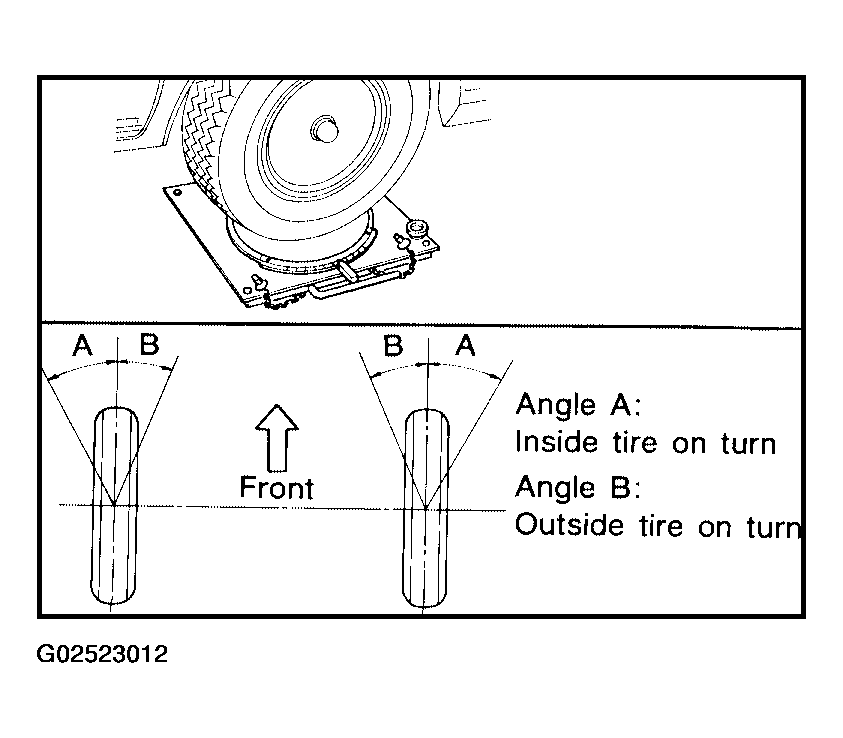

    Fig 1: Measuring Turning Angles "A" And "B"
    G02523012Courtesy of NISSAN MOTOR CO., U.S.A.
