Removal and Installation: Installation

Installation is the reverse order of removal.

• When installing the transaxle to the engine, use the tightening torque and sequence shown below:
  CAUTION: When installing transaxle, be careful not to bring transaxle input shaft into contact with the clutch cover.

QR engine models:

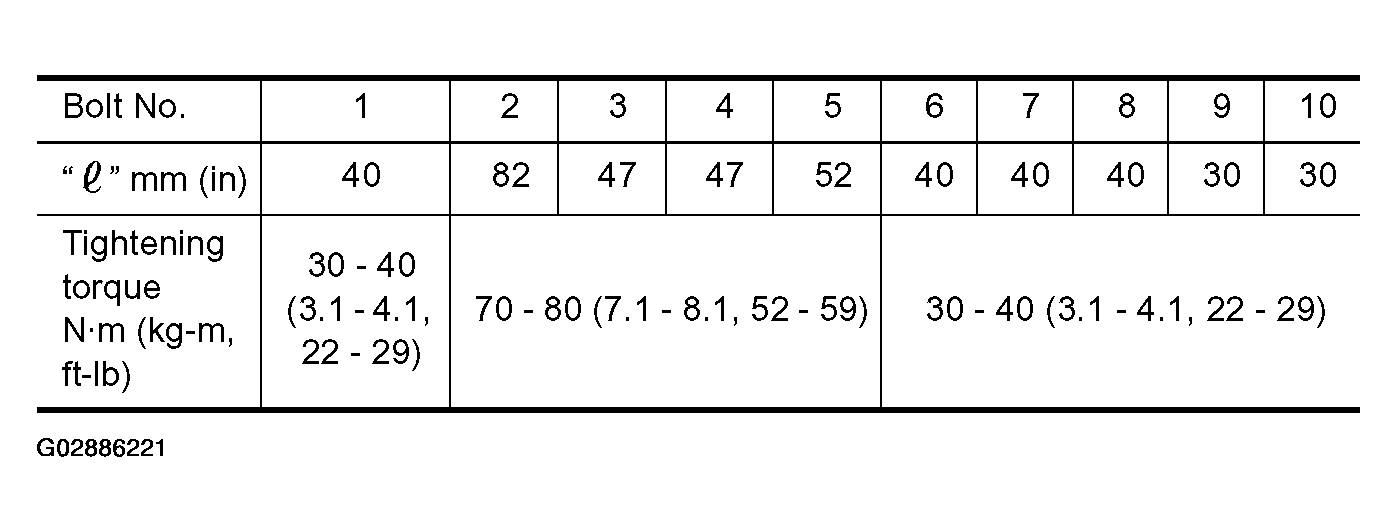

Fig 1: QR Engine Models Bolt Tightening Torque Specifications Table

Courtesy of NISSAN MOTOR CO., U.S.A.

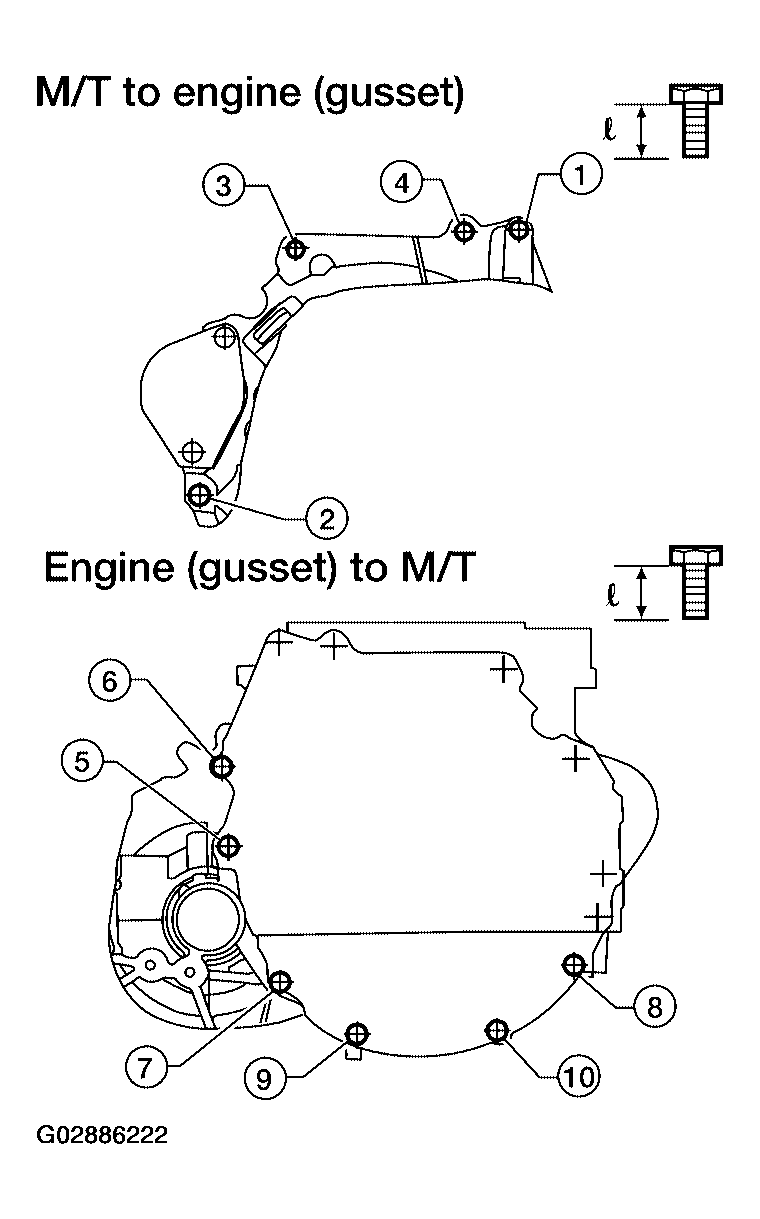

Fig 2: Installing Transaxle Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.

VQ engine models:

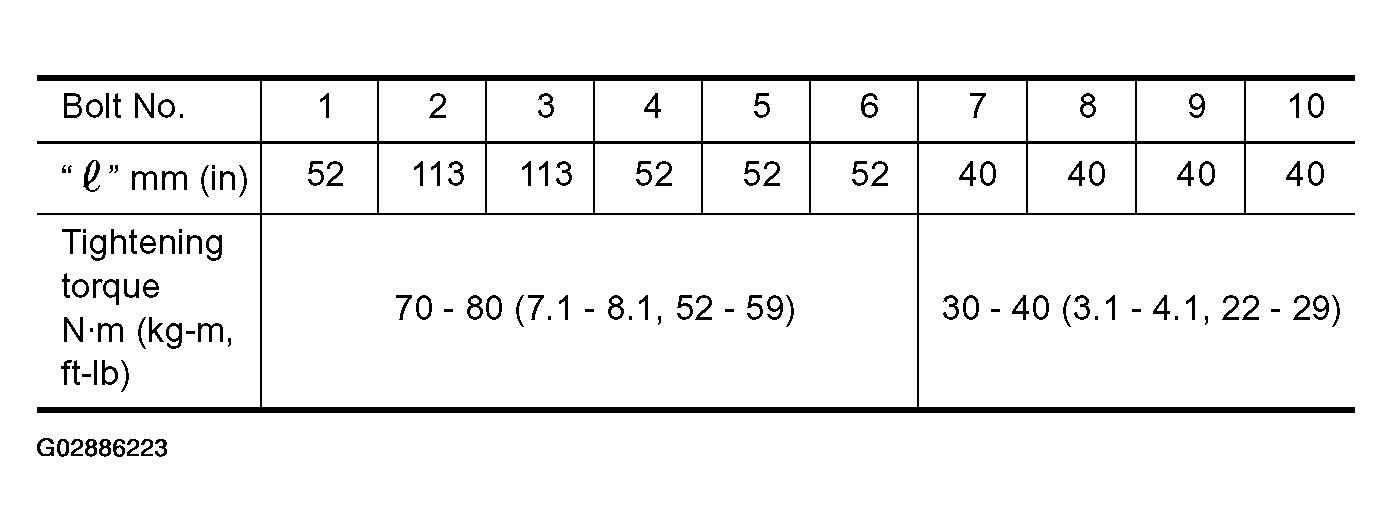

Fig 3: VQ Engine Models Bolt Tightening Torque Specifications Table

Courtesy of NISSAN MOTOR CO., U.S.A.

• After installation, check oil level, and look for leaks and loose mechanisms.

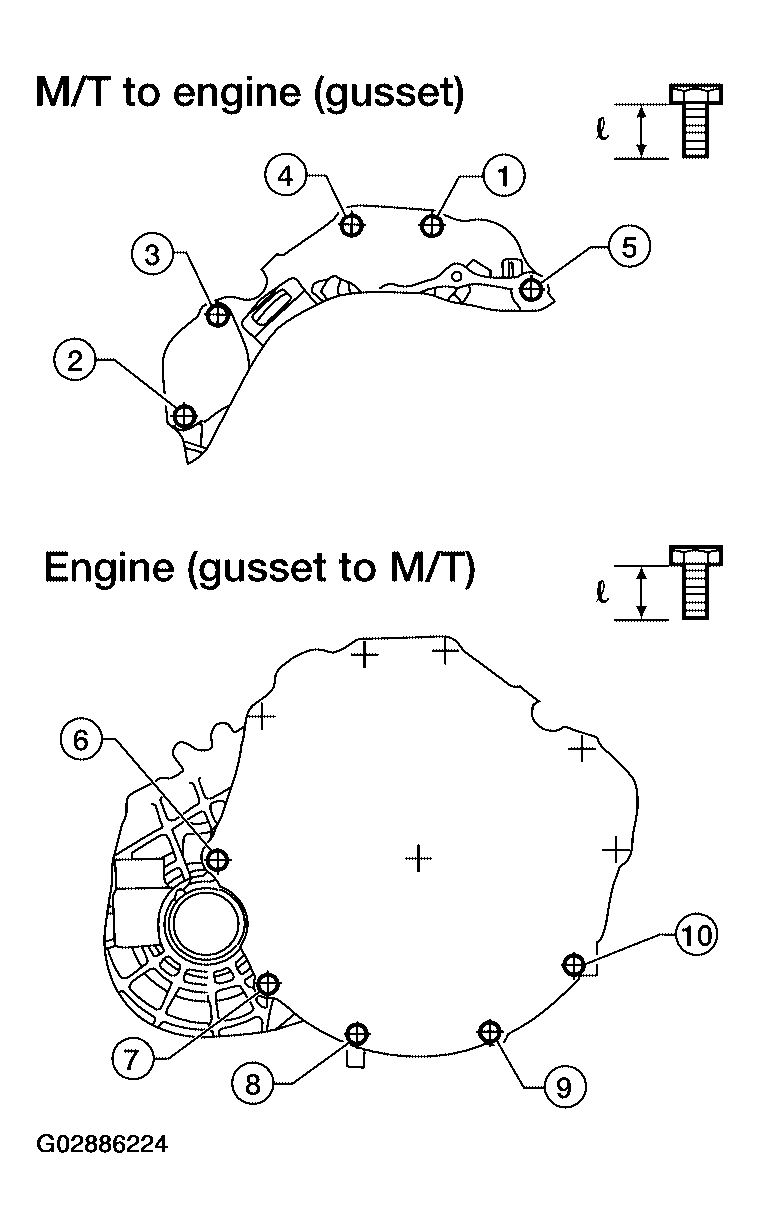

  Fig 4: Installing Transaxle Bolts

  Courtesy of NISSAN MOTOR CO., U.S.A.
