Input Shaft End Play: Notes
WARNING: This page is about a different variant/trim than selected.

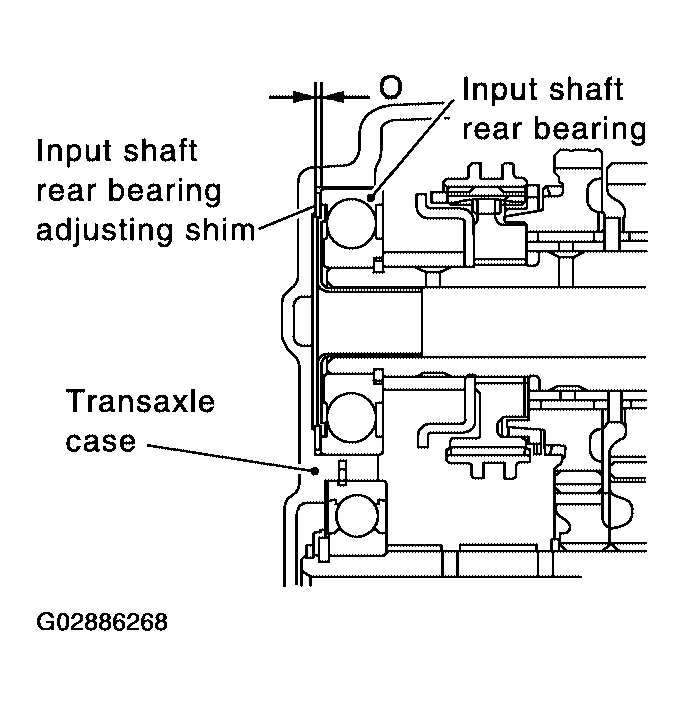

- When adjusting input shaft end play, select adjusting shim for input shaft bearing. To select adjusting shim, measure clearance between transaxle case and input shaft rear bearing.
- Calculate dimension "O" (thickness of adjusting shim) using the following procedure to satisfy specification of end play for input shaft rear bearing.
End play : 0 - 0.06 mm (0 - 0.0024 in)
Dimension "O" = ("O1" - "O2") + End play
"O" : Thickness of adjusting shim
"O1 : Distance between transaxle case end face
"and mounting face of adjusting shim
"O2 : Distance between clutch housing case end
"face and end face of input shaft rear bearing
