Consult-II Basic Operation

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

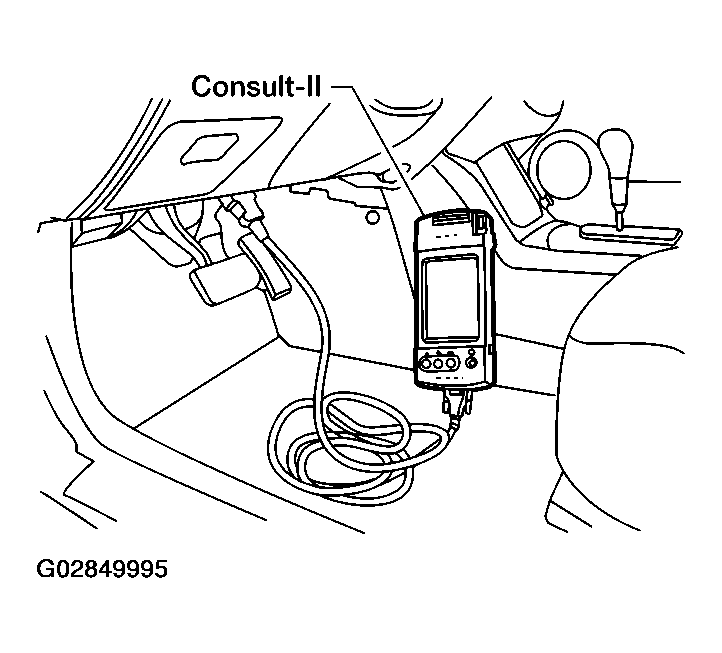

With the ignition switch OFF, connect CONSULT-II to the vehicle-side data link connector, then turn ignition switch ON.
Touch "START".

Fig 1: Displaying "START" Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM" on "SELECT SYSTEM" screen.

Fig 2: Displaying "BCM" On "SELECT SYSTEM" Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.

Fig 3: Displaying "SELECT TEST ITEM" Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
