Home >> Nissan-Datsun >> 2004 >> Altima Base, Automatic >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System >> Fuel Tank >> Removal and Installation >> Notes

Removal and Installation: Notes

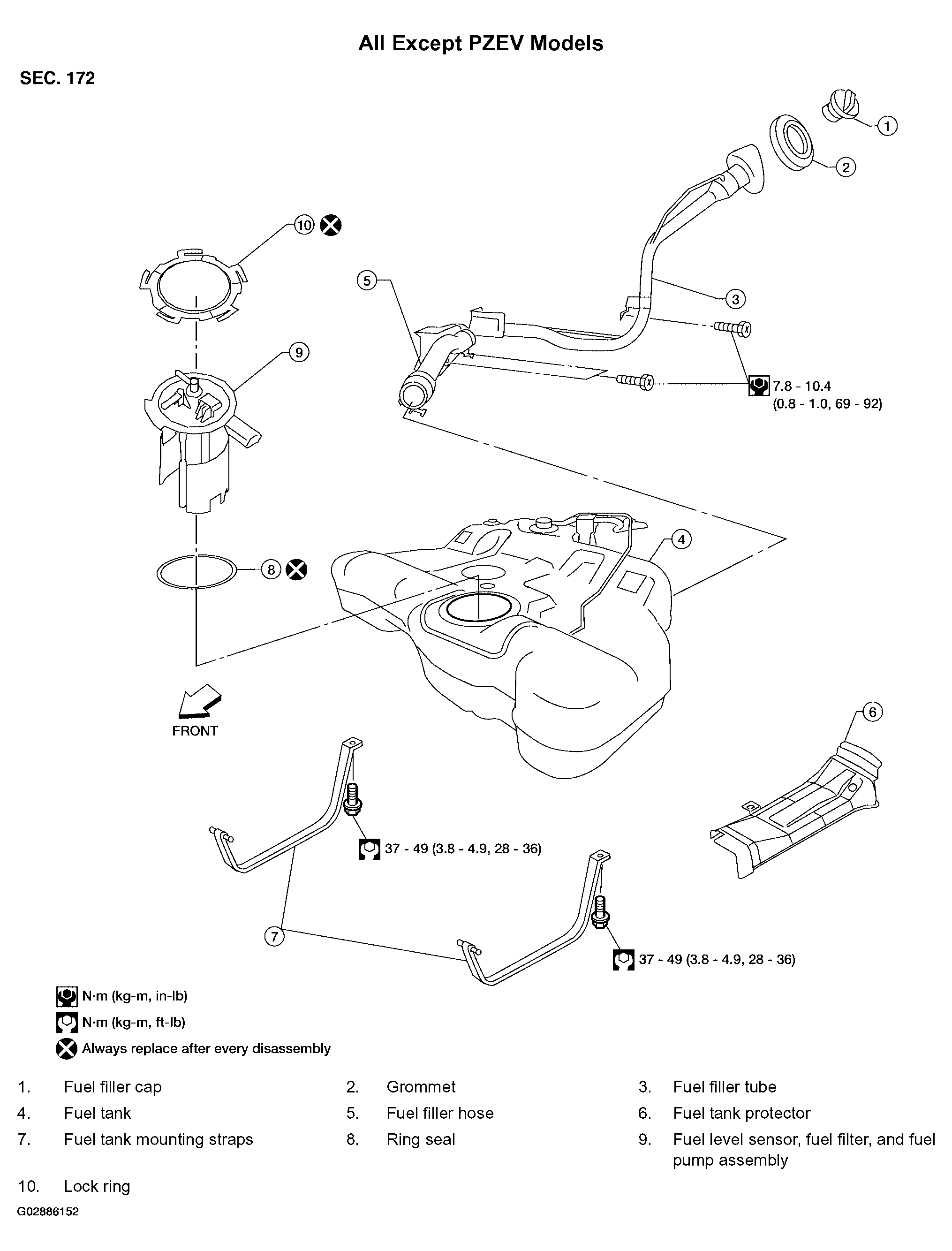

Fig 1: Identifying Fuel Tank Components All Except PZEV Models
G02886152Courtesy of NISSAN MOTOR CO., U.S.A.

SEC.172

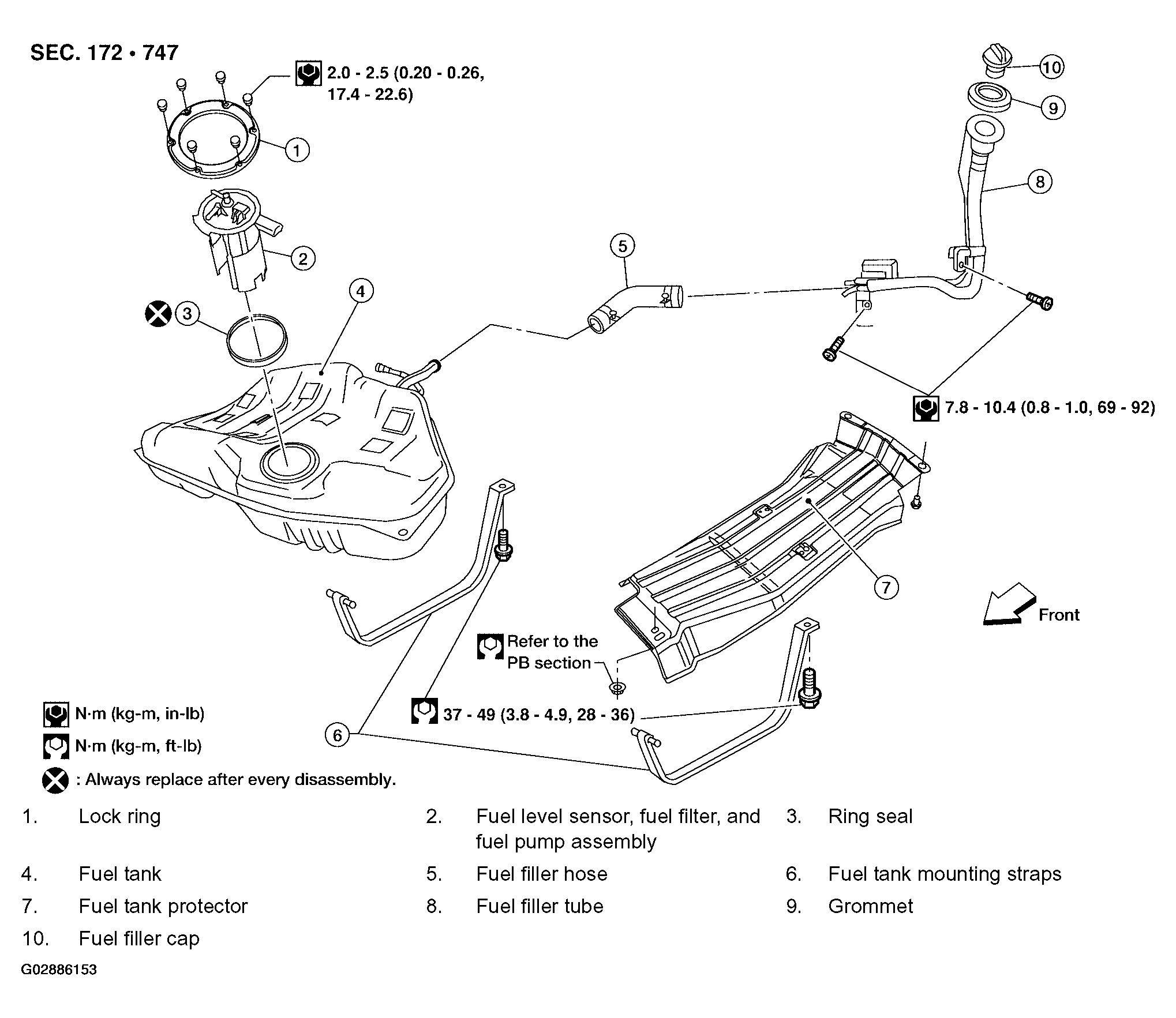

Fig 2: Identifying Fuel Tank Components PZEV Models Only
G02886153Courtesy of NISSAN MOTOR CO., U.S.A.
