DTC Inspection Priority Chart

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority chart.

NOTE: If DTC U1000 and/or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000 and U1001. Refer to DTC U1000, U1001 CAN COMMUNICATION LINE .

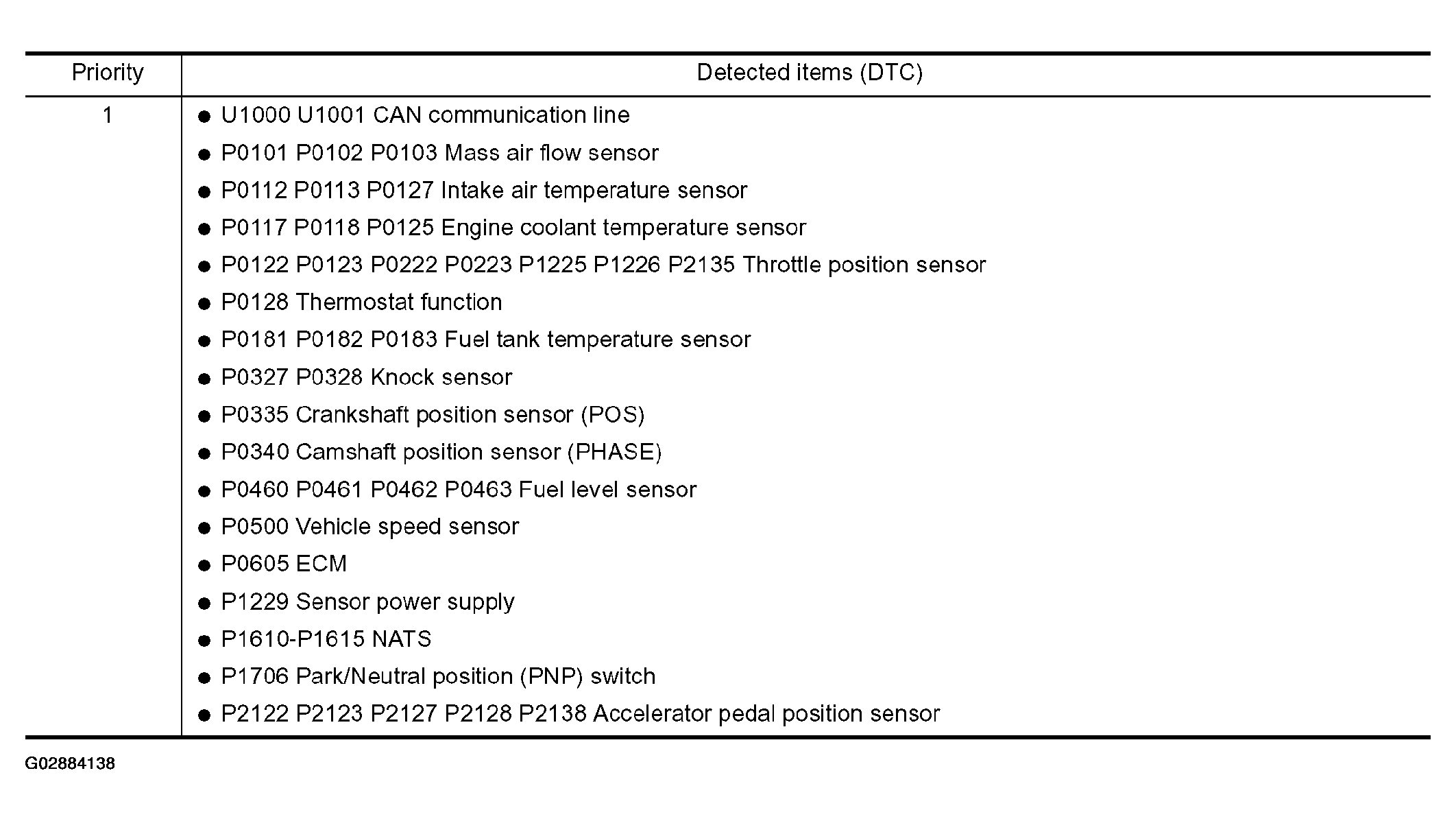

Fig 1: Priority & Detected Items Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

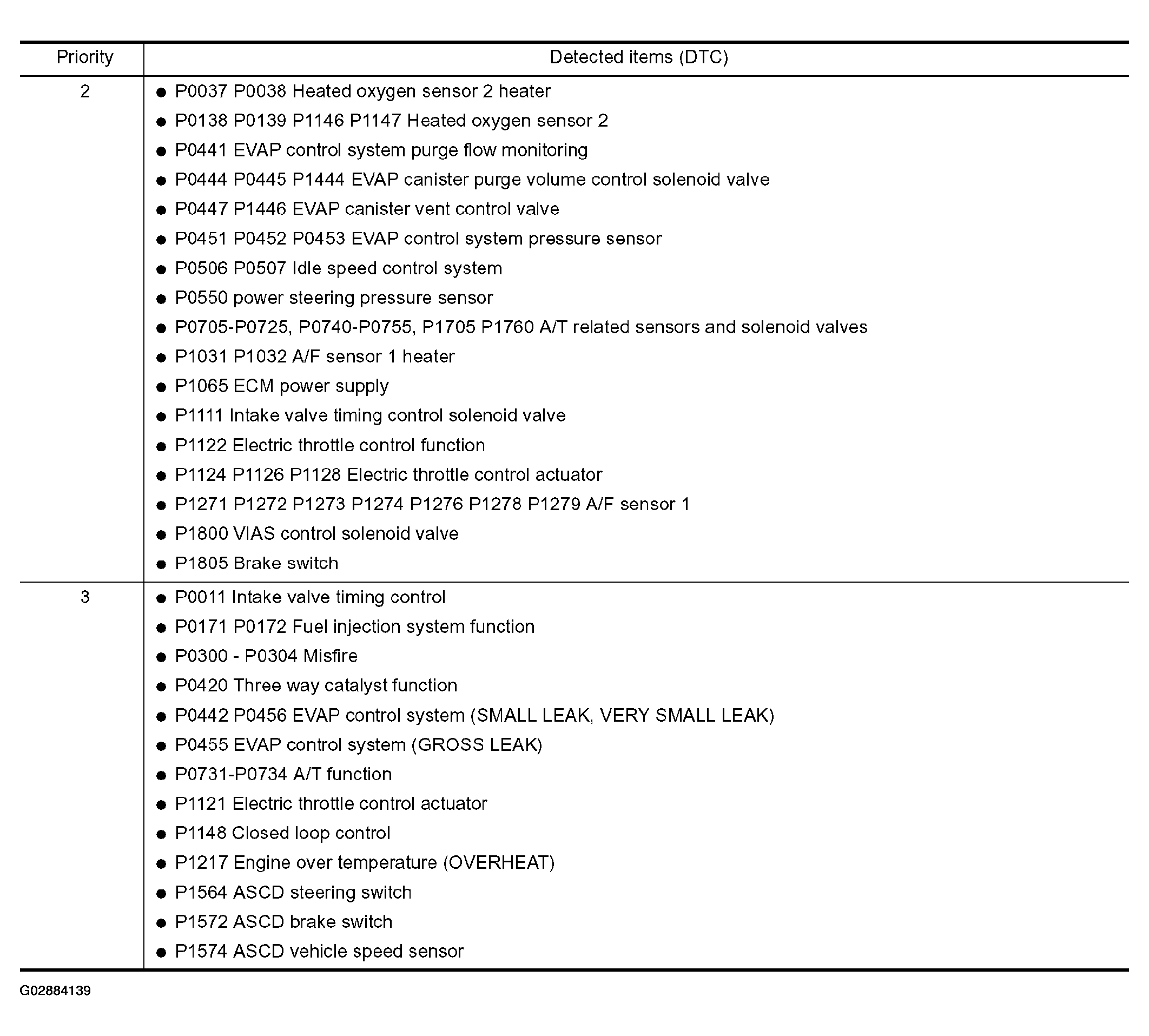

Fig 2: Priority & Detected Items Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
