Altima Base, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System - 2.5L
>>
Service Data And Specifications (SDS)
>>
Idle Speed and Ignition Timing
Idle Speed and Ignition Timing

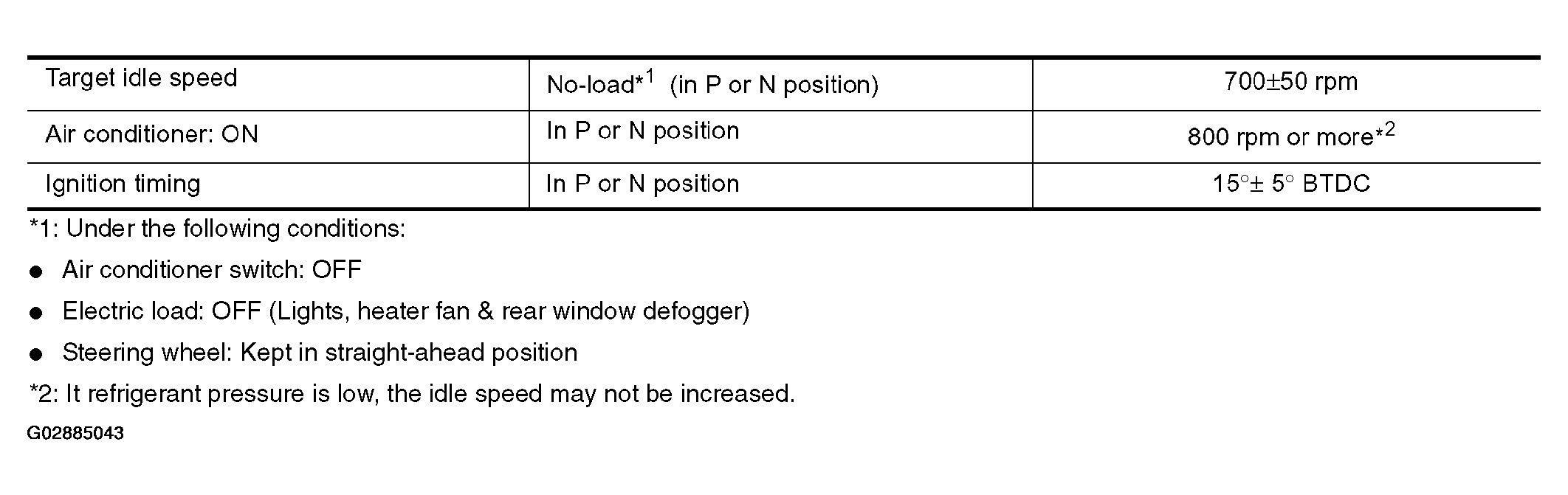

Fig 1: Idle Speed & Ignition Timing Service Specification Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
